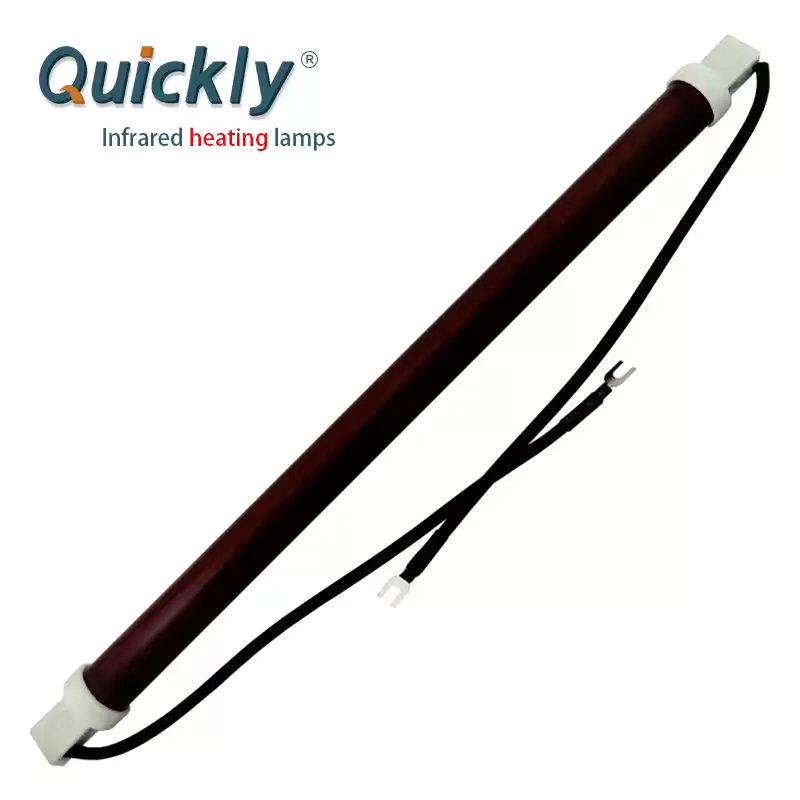

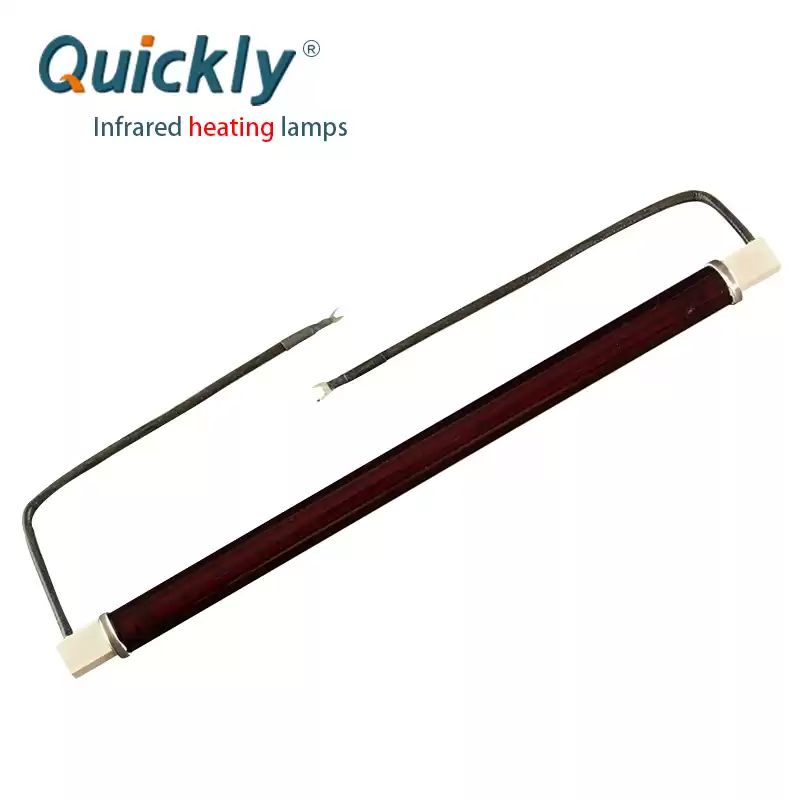

Halogen Infrared Ruby Jacketed Emitters 230V 1100W
Halogen Infrared Ruby Sleeved Heat Lamps comprise finely coiled tungsten filament surrounded directly by a 10mm diameter Ruby quartz tube. Thanks to the narrower diameter (10mm) than that of the classical Ruby sleeve (20mm) type, the size of your reflector and/or module can be more compactly designed, and the infrared heat is more efficiently transferred, whilst reducing visible glare. As no coating on the surface of the glass tube, this lamp brings you no peeling trouble to realize unchangeable low glare over its lifetime.
Linear quartz ruby jacketed infrared lamps are primarily used in space heating but also in other applications where a compact heat source is needed. Lead length is 220mm with fork terminal ends. Other applications include Catering, Livestock heating, Drying processes, Shrink Packaging, Laminating, etc.
| Lamp Power |
1100 Watts |
| Lamp Voltage |
230 Volts |

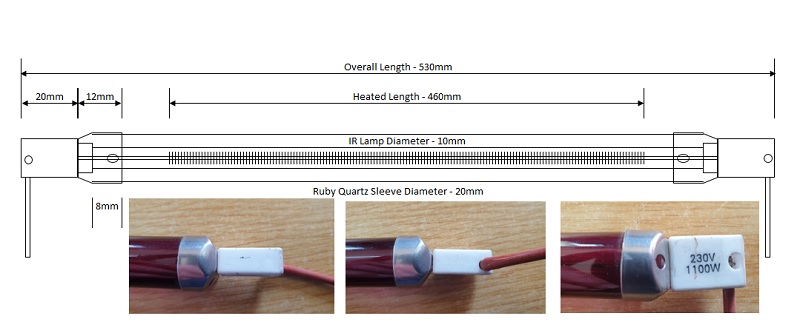

| Overall Length |
530 MM |
| Lighting Length |
460 MM |
| Cap / Fitting |
SK15s, Lead and Fork Terminal |
| Color |
Ruby Red |
| Bulb Finish |
Ruby Jacket |
| Cable |
Teflon 200MM |
| Buring Position |
Horizontal |
Infrared Ruby Lamp gives benefits of:
- Low glare stabilization (No peeling trouble): thanks to the technology without surface coating, low glare can be steadily maintained over a lifetime.
- Long life: 5000h on average
- High speed: within a second switch on.
- High efficiency: more than 85% heat efficiency of full power
- High power density: up to 100 W / cm
- High controllability: neither ballast nor special circuits are necessary for basic usage.
- No air draughts: because of radiation (similar to solar energy)
- Clean and odorless: no risk of contamination over the environment or target object to be heated.
- Extensive assortment: many types of voltage, wattage, length, base, wire harnesses, and universal burning position are available.
- Flexible: special lamp designing service on demand is available.
Why QUICKLY?
- The materials used for our lamps are of good quality approved UL testing
- As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us for over 5 years
- We are a factory, so we can control the delivery date, material, and quality directly
- For any exclusive-human damage within warranty time, we will deliver the replacements within 3-5 work days once confirming
- Safe package to protect lamps from being broken during shipping
- Various Payment methods like wire transfer, Paypal, western union
- Shipping ways provided including DHL, FedEx, TNT, UPS, air, sea
- we will provide you with the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)
FAQ
- How to place the order?
Let us know your required lamp specifications including lamp type, diameter, length, power, voltage, and reflector...then we send you the quotation, after payment, production will be started, then they will be shipped to your side once production finish.
- Why is Quartz Glass the one main material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent to IR radiation, can withstand constant working temperatures of more than 1000°C and it is resistant to chemical corrosion.
- could you supply clamps for lamp installation?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps is supplied freely by us.
- Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs but can be highly competitive on large orders as well.
- How does your factory do quality control?
" Quality is priority", we always keep paying more attention to QC from the material purchasing to the lamps' packing. Our product and company has gained CE, ROHS, and ISO9001.
