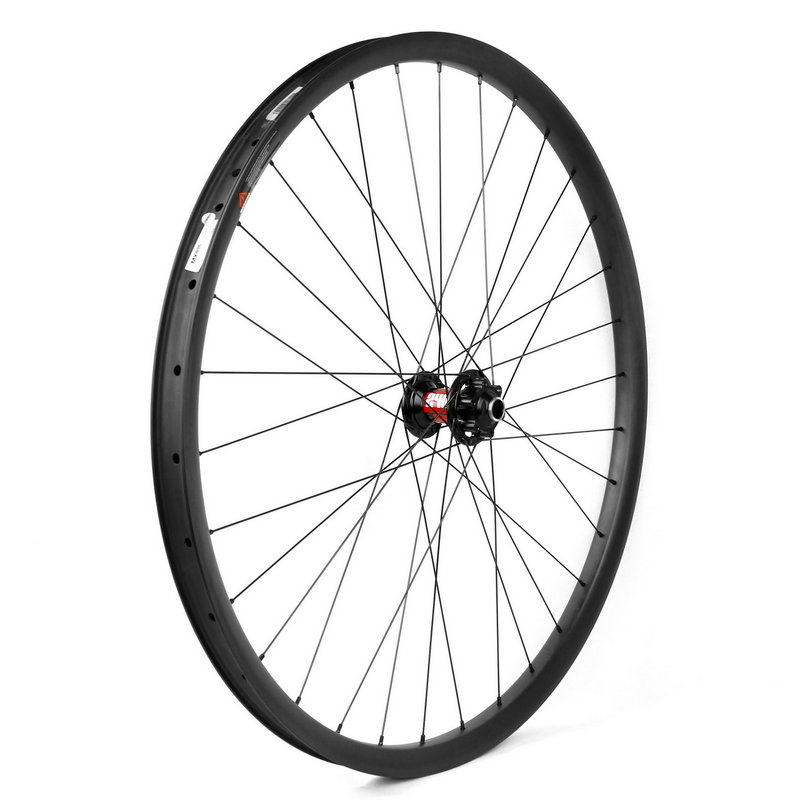

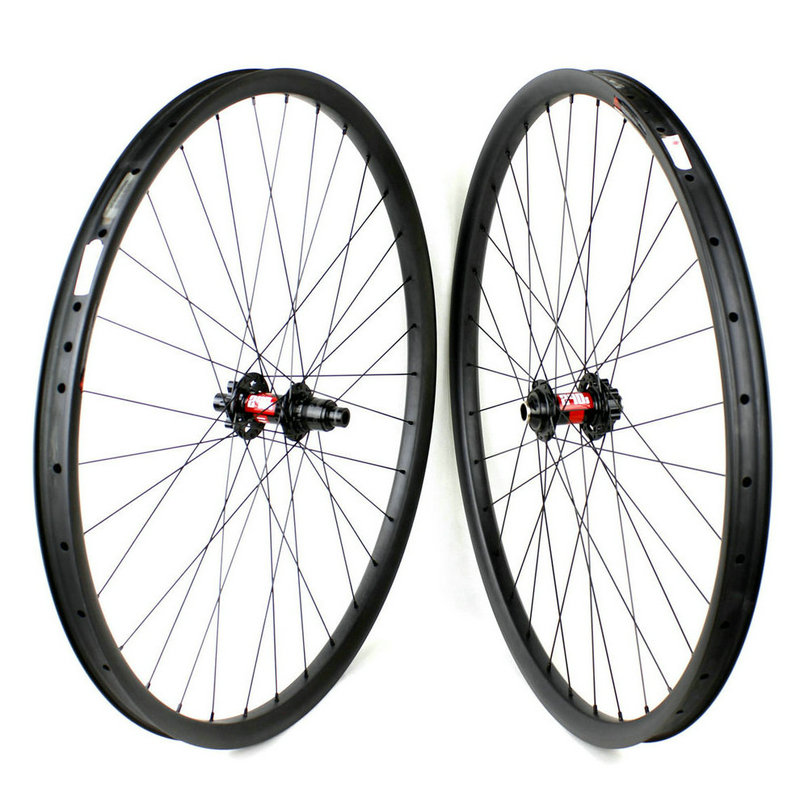

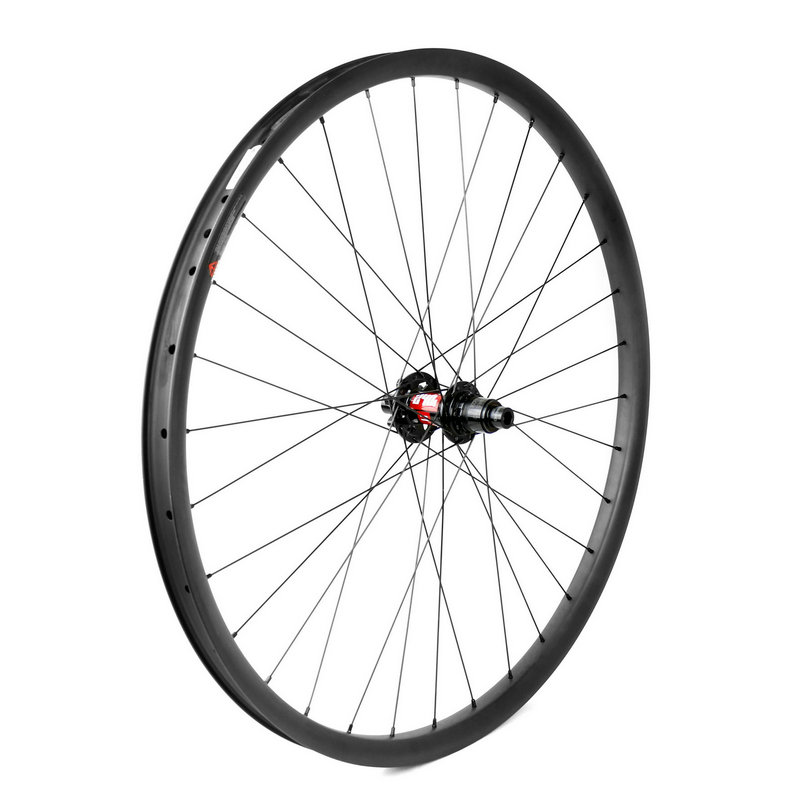

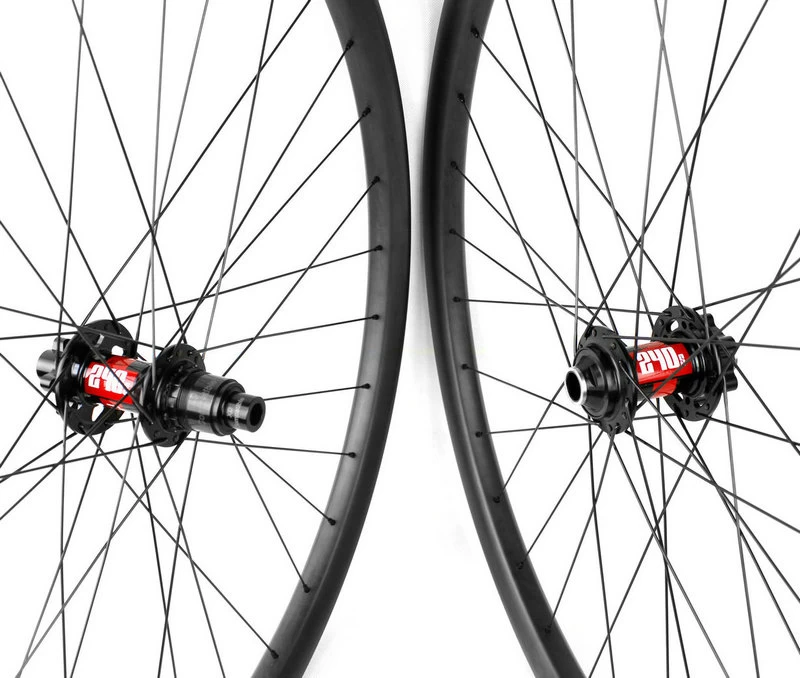

Product Item: Hand built DT Swiss 240 Boost hub + Sapim CX-Ray spoke mtb wheels.
Featuring the latest refinements the DT Swiss 240 hubs are extremely lightweight and extremely durable. The Ratchet System is the best solution for a freewheel system, since it can transfer high loads while being super light. Just what athletes want: Perfect transmission of their power and the reliability allowing them to focus on the ride.
Hub:

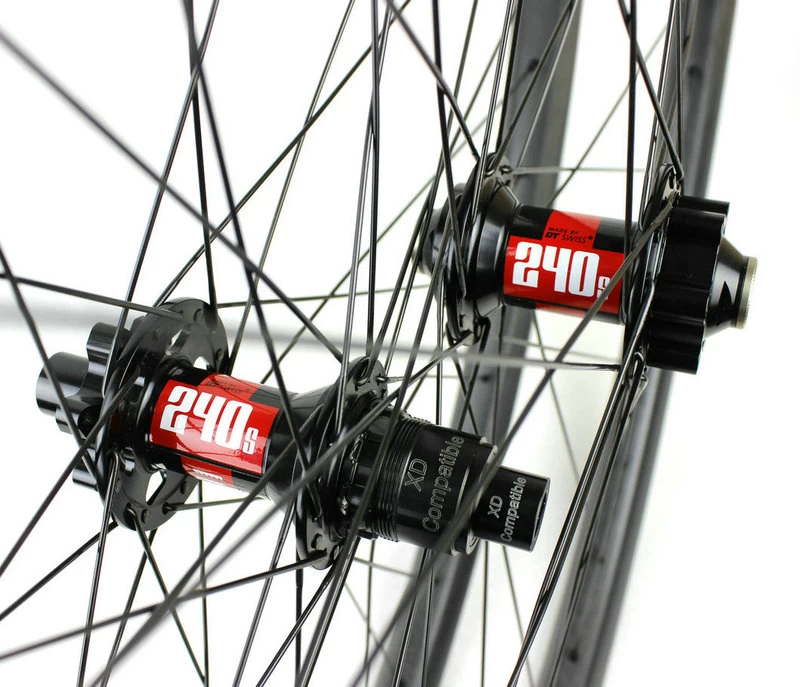

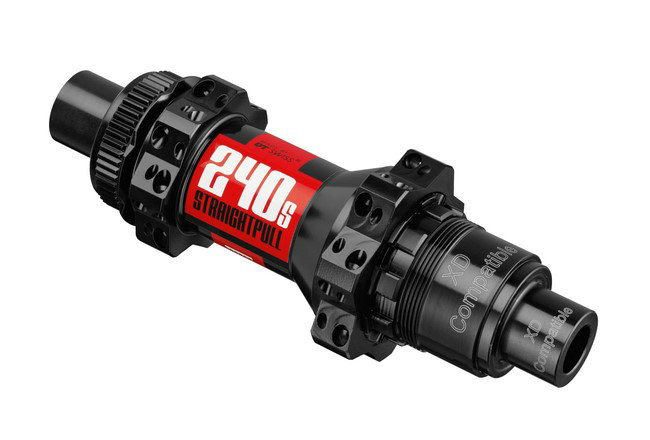

DT swiss 240 boost hub, straight pull (28/28*) or classic (J bend, 32/32*);
Axle system: front 15*110mm , rear 12*148mm;
Brake interface: Disc center lock / Disc 6 bolts;
Free hub system: Ratchet System 18T (optional 36T / 54T);
Freehub body: Shimano 11SP (optional 12SP) or Sram XD MTB;
Hole: 28/28 or 32/32;
Color: black.
*Straight pull hub, 28/28 holes, disc center lock;
*J bend hub, 32/32 holes, disc 6 bolts.
Spoke:
Sapim CX-Ray spoke, black;
*Website: Sapim spoke.
Nipple:
Sapim alloy nipples, black or red.
Rim:
Carbonal mountain bike carbon rims: XC / Trail / Enduro / Downhill / Plus. Light, strong, stiff and durable.
5 years warranty.
Weight:
Freehub body
|
Hole
|
Axle system
|
Disc type
|
Hub weight / set
|
Spokes + nipples weight
|
Weight without rims *
|
Shimano 11SP
|
28/28
|
F-15*110mm / R-12*148mm
|
Center lock
|
381g
|
255g
|
636g
|
Sram XD
|
28/28
|
F-15*110mm / R-12*148mm
|
Center lock
|
381g
|
255g
|
636g
|
Shimano 11SP
|
32/32
|
F-15*110mm / R-12*148mm
|
6 bolts
|
381g
|
291g
|
672g
|
Sram XD
|
32/32
|
F-15*110mm / R-12*148mm
|
6 bolts
|
381g
|
291g
|
672g
|
* Complete wheel weights are subject to a ±5% variance.
Choose your favorite mountain bike carbon rim, leave a message below with the rim "item number" (such as MX742EN) to get a best quote of your custom wheelset.
