Hand-held Spray Nozzle China Supplier

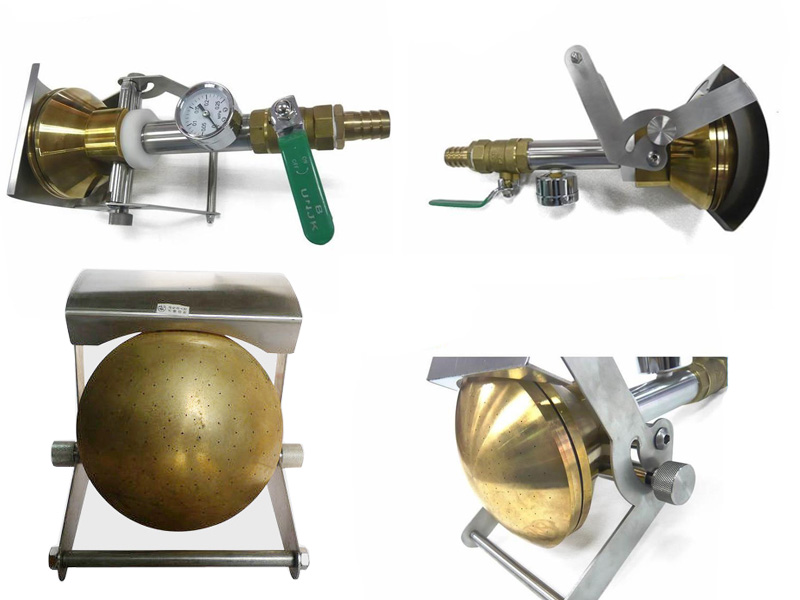

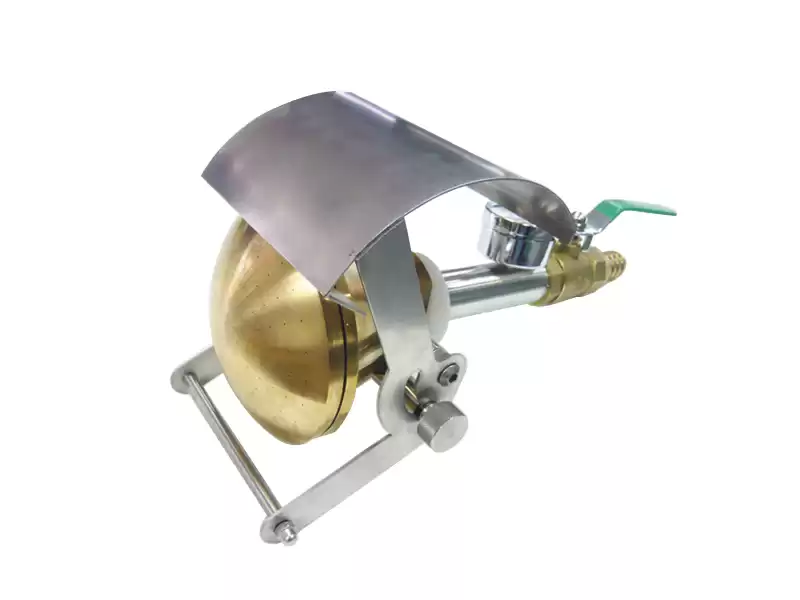

Hand-held spray nozzle is used to perform the IPX3 & IPX4 water spraying&splashing testing on enclosures of electrical equipment or components to determine the performance of waterproof. Especially applied to materials that are exposed to open space for example air conditionings, cable connectors, convertors etc.

Test Standards

IEC 60529 14.2.3 b / 14.2.4 b

Parameters

Material of nozzle: brass
Material of moving shield: aluminium
Outer diameter of spray nozzle: 102mm
Inner diameter of spray nozzle: 100mm
Surface radian of nozzle opening:
Diameter of hole: 0.5mm
Amount of holes: 121
Pressure range: 0-0.25MPa
