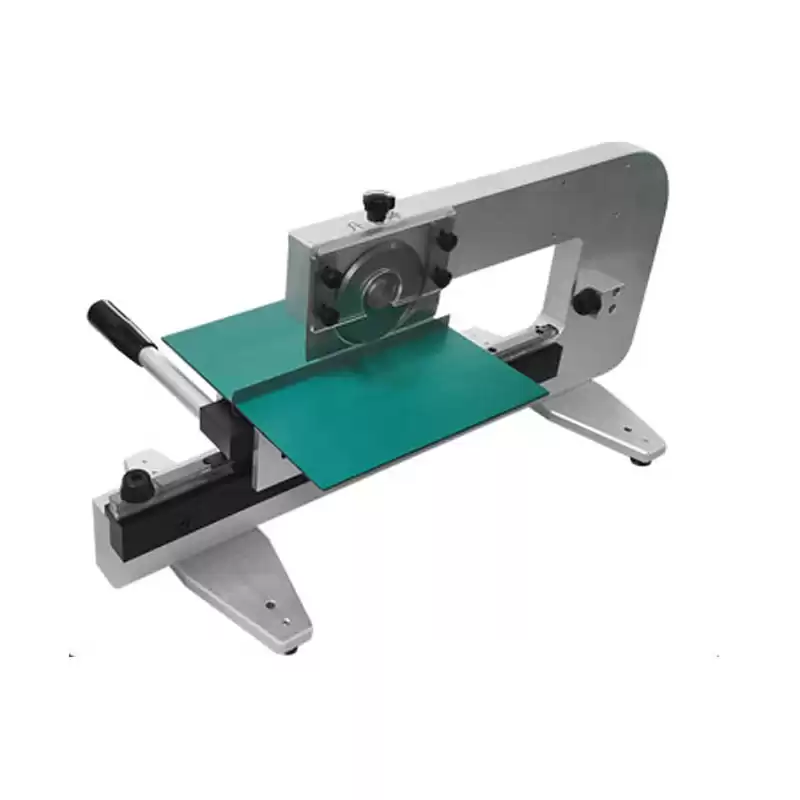

Hand Push Type Manual PCB Separator Machine ;
Manual PCB Separator Features:
1. Manual PCB separator, suitable for small high-precision PCB splitting, standard size is 220-300mm stroke.
2. Reduce the internal stress generated during board cutting to avoid tin cracking, SMT with V-CUT, PC board (substrate) can be applied to this manual PCB separator; linear slide, upper round knife and lower linear knife are used V-CUT substrate division, this machine division reduces SMT solder joint cracking.
3. Place the V groove of the PCB on the tip of the lower straight knife, push the V groove of the lower blade after the push arm, and insert the board to separate.
4. During the depaneling process, the cutter moves but the PCB does not move to ensure that the parts on the board are not damaged due to movement.
5. In response to the depth of the V groove and tool wear. The distance between the upper round knife and the lower straight knife can be adjusted accurately.
6. Both thick and thin boards can be cut, easy to operate, especially suitable for the division of thinner PCB boards.
7. This manual PCB separator is lightweight, does not occupy space, does not need power supply, has environmental protection functions, and is easy to operate.
;
Manual PCB Separator Specification:
|
Model
|
SMTMD2
|
|
Machine Dimension
|
800x260x350mm
|
|
Max Cutting Length
|
330mm
|
|
PCB Material
|
FR4, FR1
|
|
Cutting Speed
|
Manual control
|
|
PCB Thickness
|
0.6-3mm
|
|
Machine Weight
|
40kgs
|

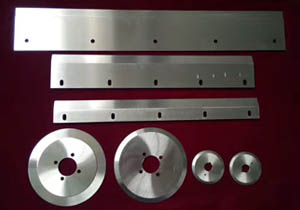

Manual PCB Separator Spare Blades:
We offer spare blades with reasonable cost to meet client's needs.
Our Certificate:
Company Profile:
2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.
2010, Our products are widely sold in local market.
2012, Start producing customized v-cut depaneling and PCB router.
2014, ;Expand our sales team for providing better service to more customers.
2015, Start manufacturing laser depaneling machines.
2017, Start manufacturing ;soldering robot and screwdriver machines.
2018, HK company established.
2019, Huizhou factory established, due to expansion.
2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;
2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
