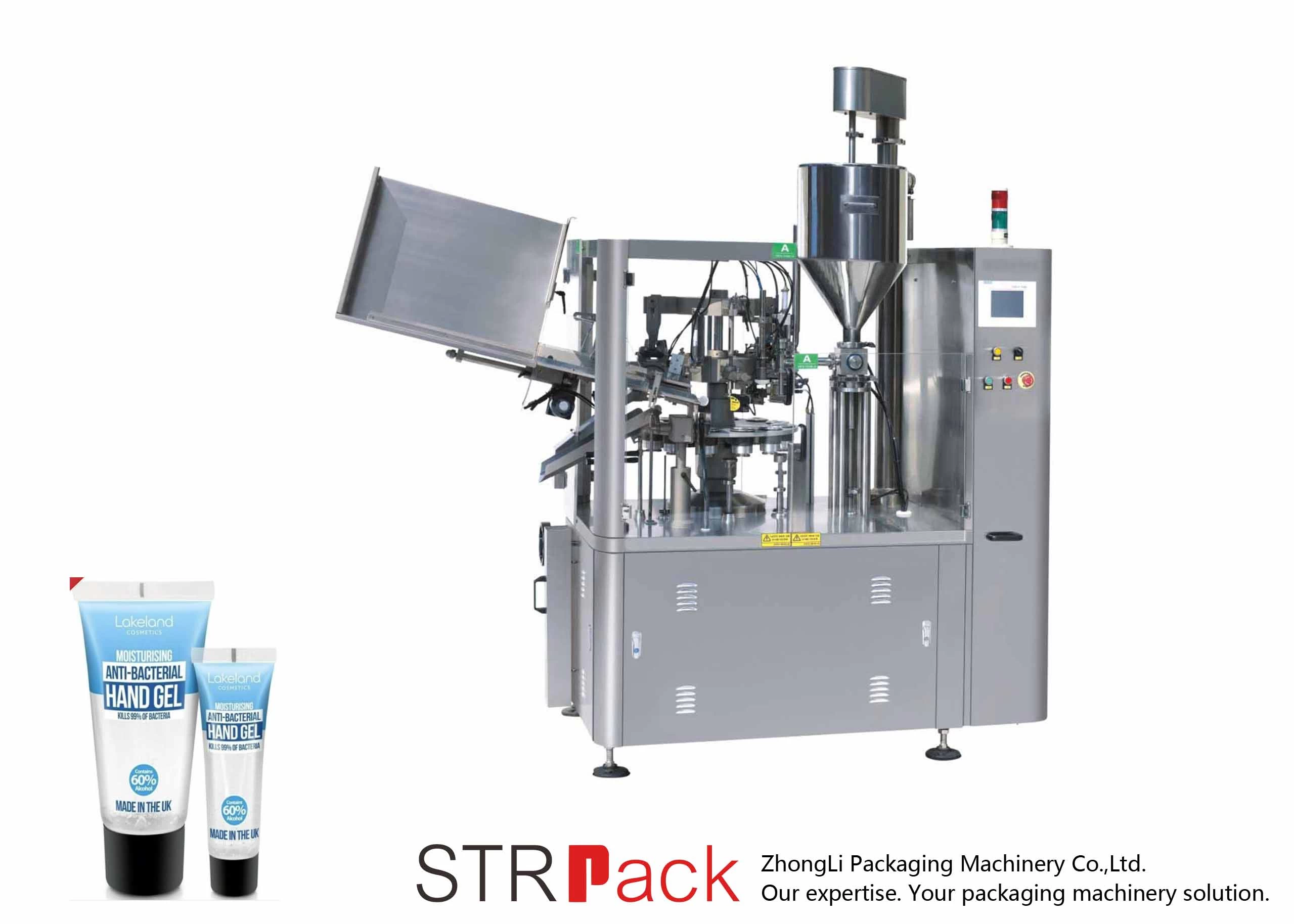

Hand Sanitizer Tube Filling And Sealing Machine
Brief Introduction:
STRPACK automatic high-speed tube filler sealer is suitable for filling and sealing all kinds of semi-viscous and viscous products into plastic and compound tubes, as well as the metal tubes. It's suitable for pharmaceutical, chemical, cosmetic, and food products.
Compact design and auto tube feed. Driving part fully-closed.
Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
Tube washing and feeding conducted pneumatically, accurate and reliable.
Features
-
Works for plastic and compound tubes, or
metal tubes.
-
Tube feeding, marking identification,
filling, folding, sealing, code printing and finished product output all
conducted by a fully auto control system. Tube washing and feeding conducted
pneumatically, accurate and reliable.
-
Material contact parts 316L stainless
steel.
-
Pneumatic shut-off nozzle, no drippings
after filling.
-
No tube no filling features.
-
Overload protection.
-
A 40L 316L stainless steel hopper is
included dynamically built to meet the cGMP standard.
-
Material Feeding Pump, Hopper stirrer,
Hopper heater, and Tube Feeding machine are optional.
-
Run for both round and oval tubes, suitable
for common sealing end or special space sealing end.
-
High running speed up to 80 tubes per minute.
Main Parameter:
|
Model
|
SFS-100
|
SFS-60
|
|
Filling volume
|
5 -250ml.
|
5 -250ml or 50 - 500ml.
|
|
Production capacity
|
Up to 80 tubes per minute.
|
Up to 40 tubes per minute.
|
|
Filling accuracy
|
≤±1%.
|
≤±1%
|
|
Tube diameter
|
10 - 50mm.
|
10 - 50mm or 20 - 60mm.
|
|
Tube height
|
Max. 210mm.
|
Max. 210mm or Max. 250mm.
|
|
Hopper volume
|
40L.
|
40L.
|
|
Compressed air
|
0.5 - 0.7Mpa.
|
0.4 - 0.6Mpa.
|
|
Voltage
|
AC208-415V 3phase 50/60Hz.
|
AC208-415V 3phase 50/60Hz.
|
Power
|
9kw.
|
4.5kw.
|
|
Dimensions
|
L2400*W1185*H2035mm.
|
L1900*W1000*H1900mm.
|
Weight
|
1600kg.
|
900kg.
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
