Product Introduction

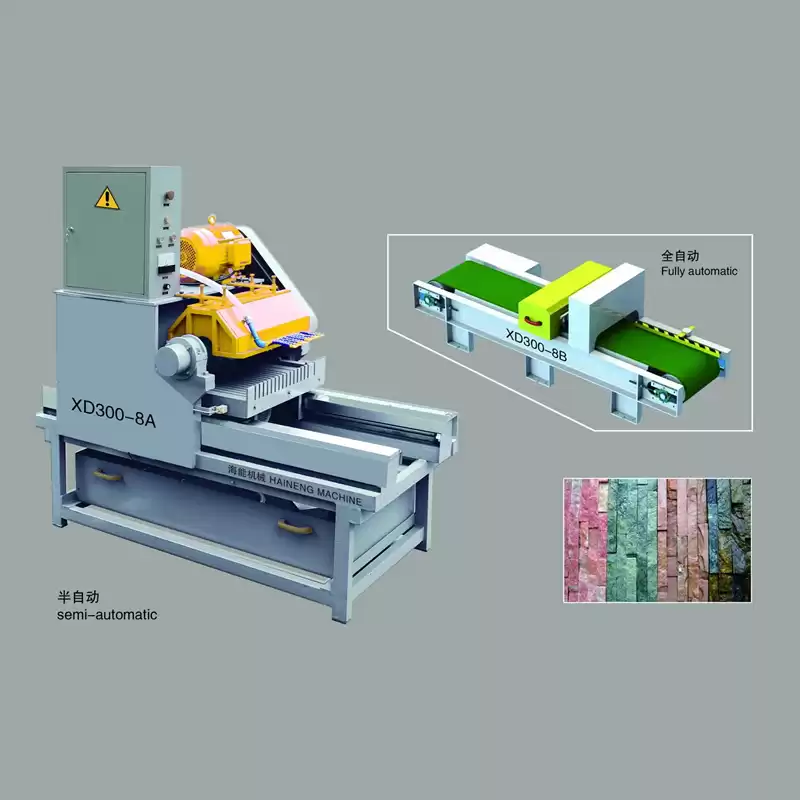

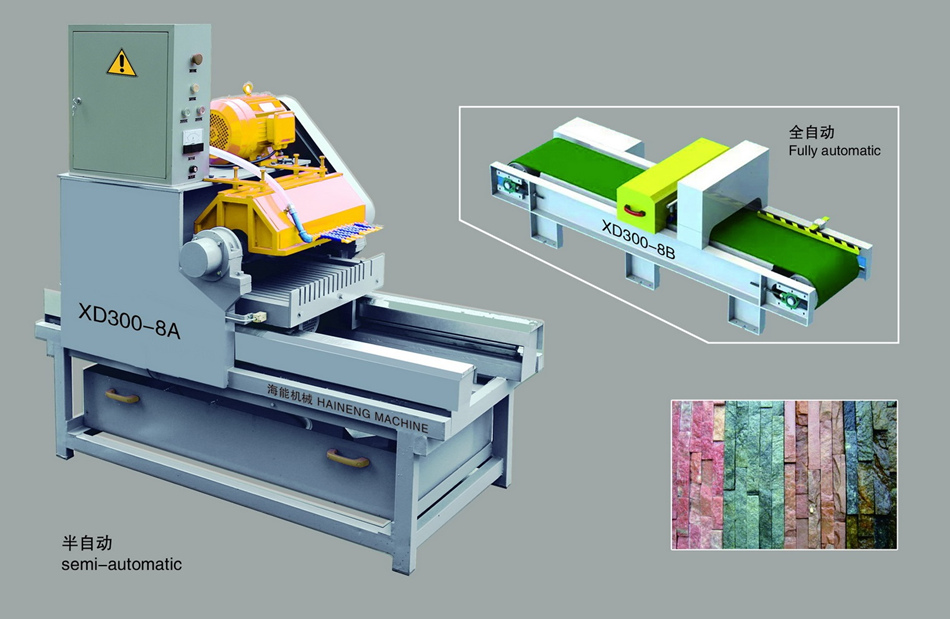

Hand Stone Cutter is mainly used for cutting decorative tiles and Mosaic bricks.
This machine is divided into automatic and semi-automatic models for users to choose, the body is light, easy to move, long service life, accurate cutting, high efficiency.
Technical Parameters
|

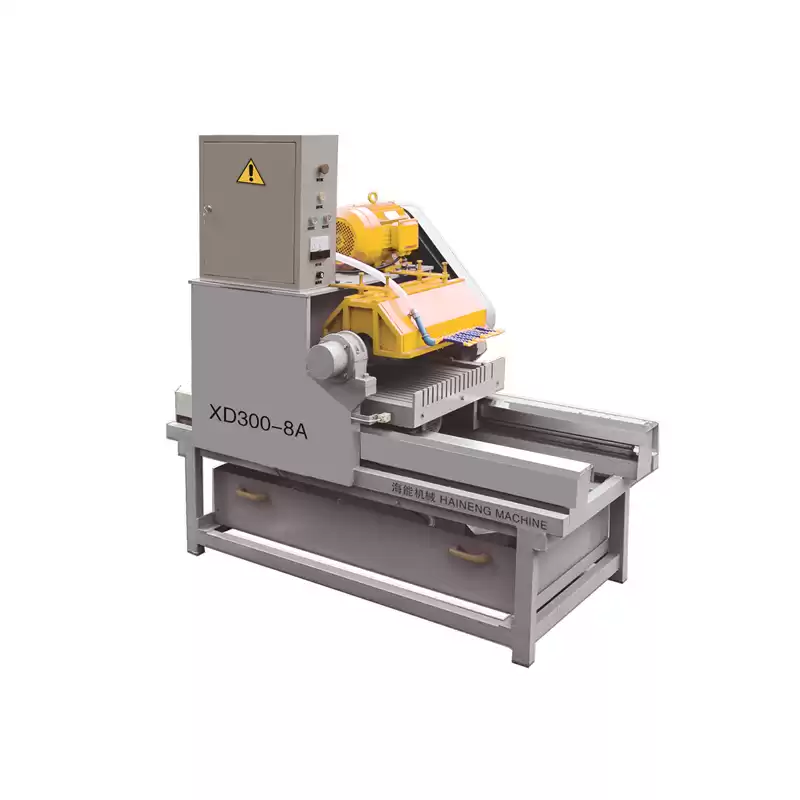

Hand Stone Cutter
|
|
Type
|
unit
|
XD300-8A
|
XD300-8B
|
|
Blade diameter
|
mm
|
Φ300
|
Φ300
|
|
Max.cutting length
|
mm
|
600
|
600
|
|
Max.cutting width
|
mm
|
500
|
500
|
|
Max.cutting thickness
|
mm
|
80
|
80
|
|
Max.diskqty
|
pcs
|
8
|
8
|
|
Main motor power
|
kw
|
7.5
|
7.5
|
|
Total power
|
kw
|
8.62
|
8.62
|
|
Water consumption
|
m³/h
|
2
|
2
|
|
Dimension (L×W×H)
|
mm
|
1800×1000×1750
|
3400×1550×1400
|
|
Total weight
|
kg
|
750
|
1200
|

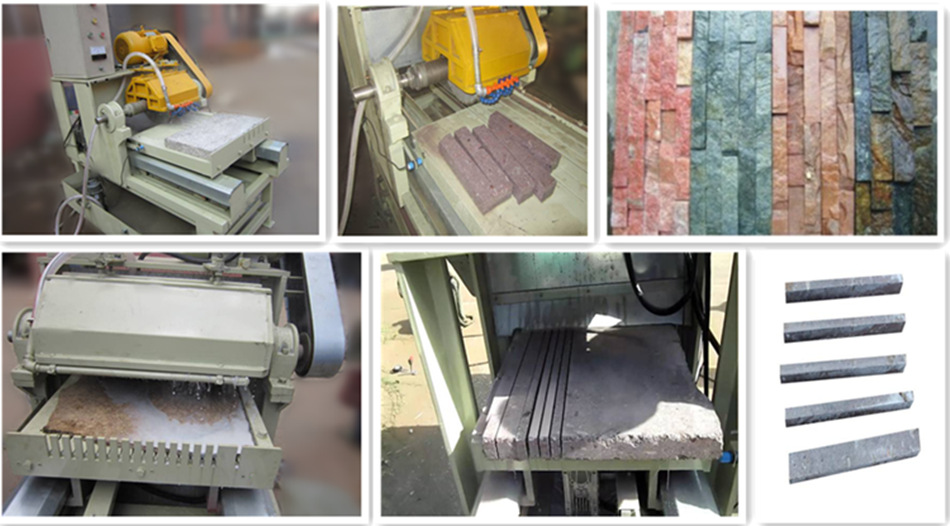

Processing
Loading photos
