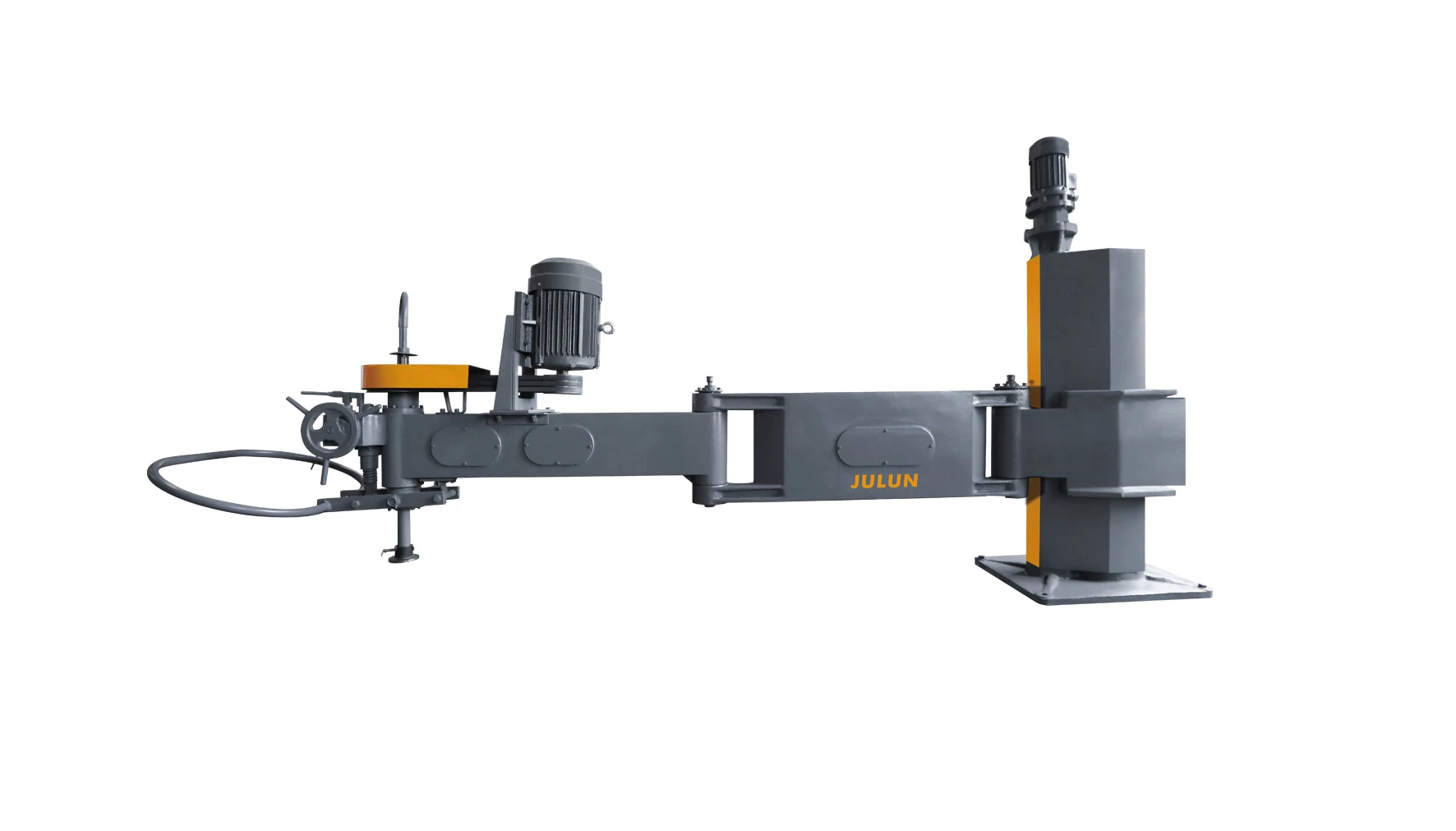

SF-2500/3000 Hand Polishing Machine

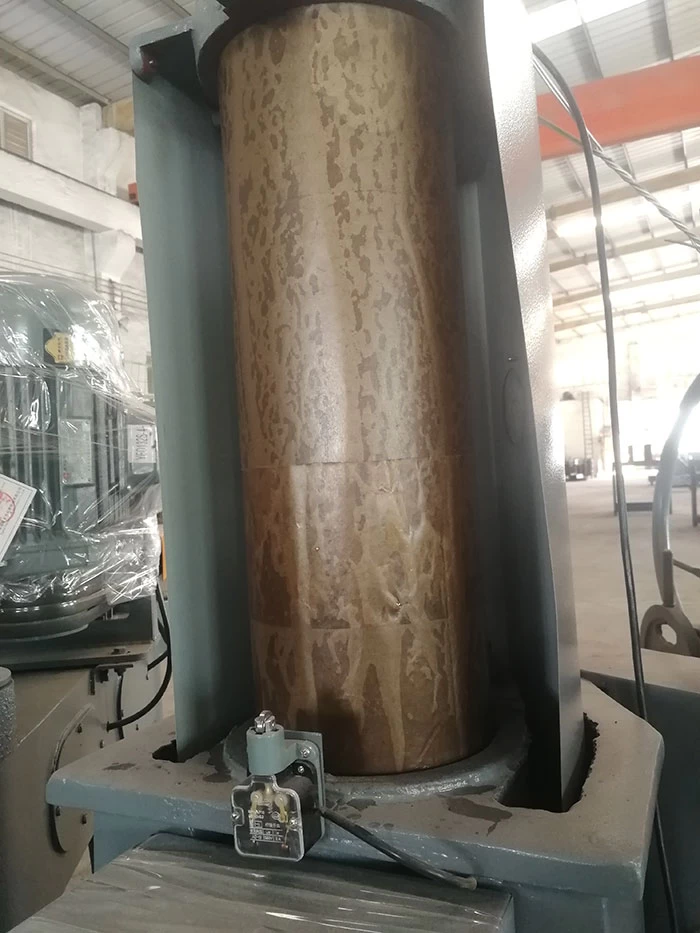

1. we uses round column as its guide slip surface for steady automatic lifting up and down.
2. The main drive has two kinds:single speed and double speeds.The machine is applicable to plane grinding and polishing of slabs with greatly various thickness,tombstones,and stone with design.
3. The worktable can be selected for grinding crafts camber inside and outside.
Specification
|
Appellation
|
unit
|
SF-2500
|
SF-3000
|
|
Gyro radius
|
mm
|
2500
|
3000
|
|
Max.spindle lifting stroke
|
mm
|
80
|
|
Max.lifting stroke
|
mm
|
470
|
470
|
|
Water consumption
|
m3/h
|
1
|
|
Air consumption
|
kW
|
5.5
|
|
Total power
|
kW
|
6.1
|
6.1
|
|
Dimension(LXWXH)
|
mm
|
3200X1650X1800
|
3800X1650X1800
|
|
Weight
|
kg
|
750
|
850
|

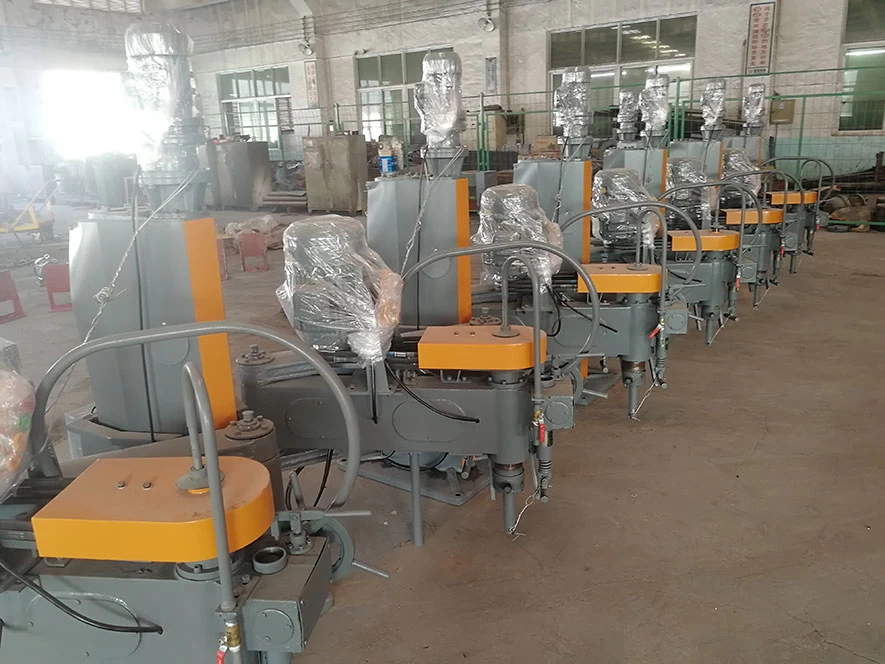

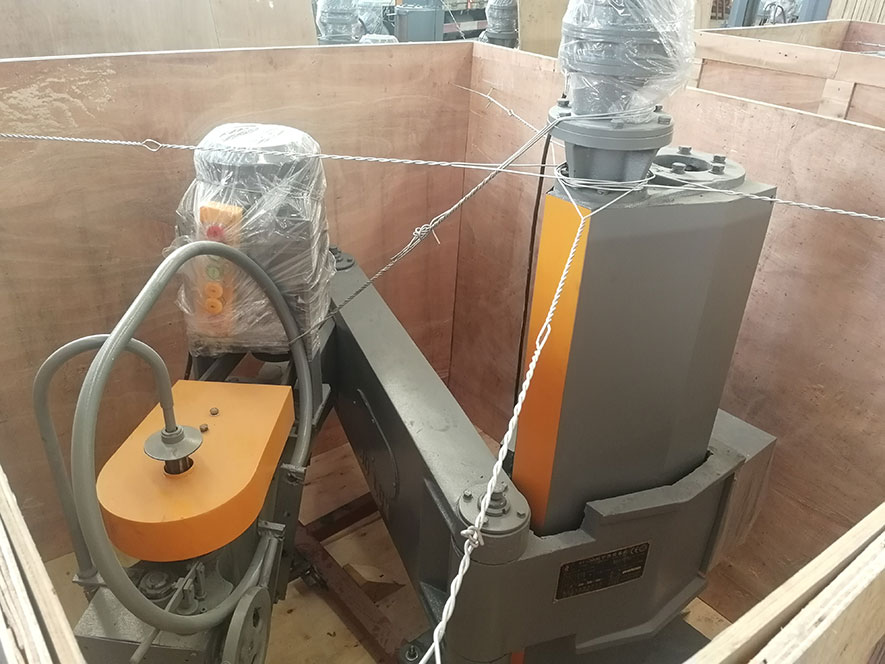

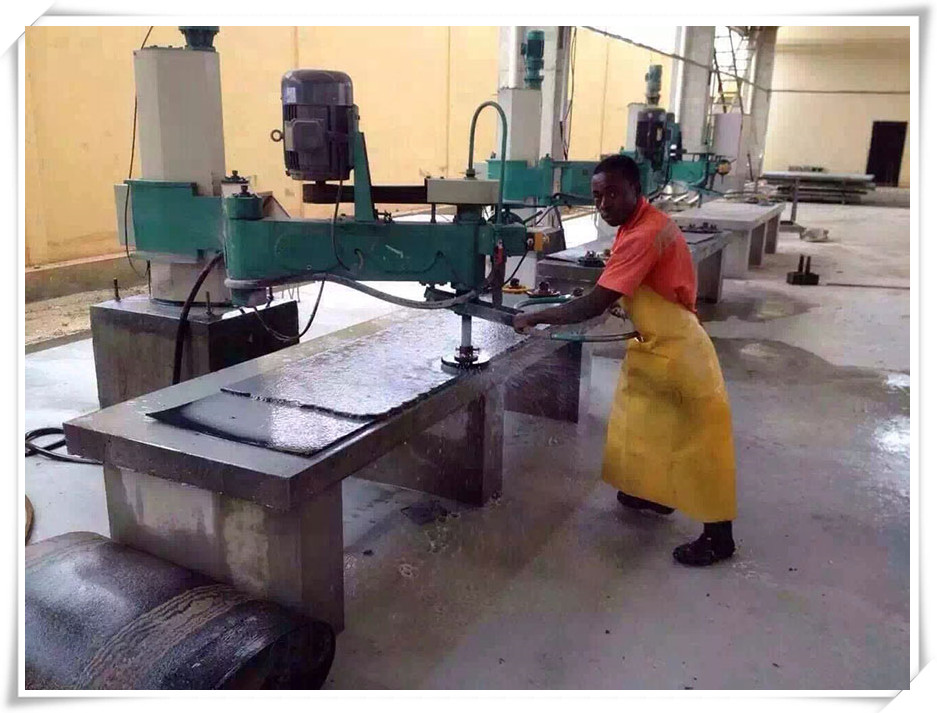

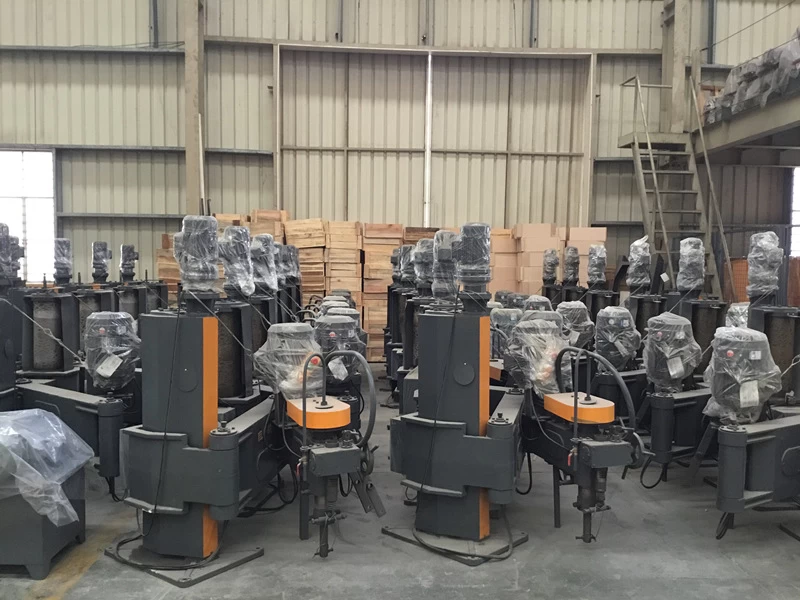

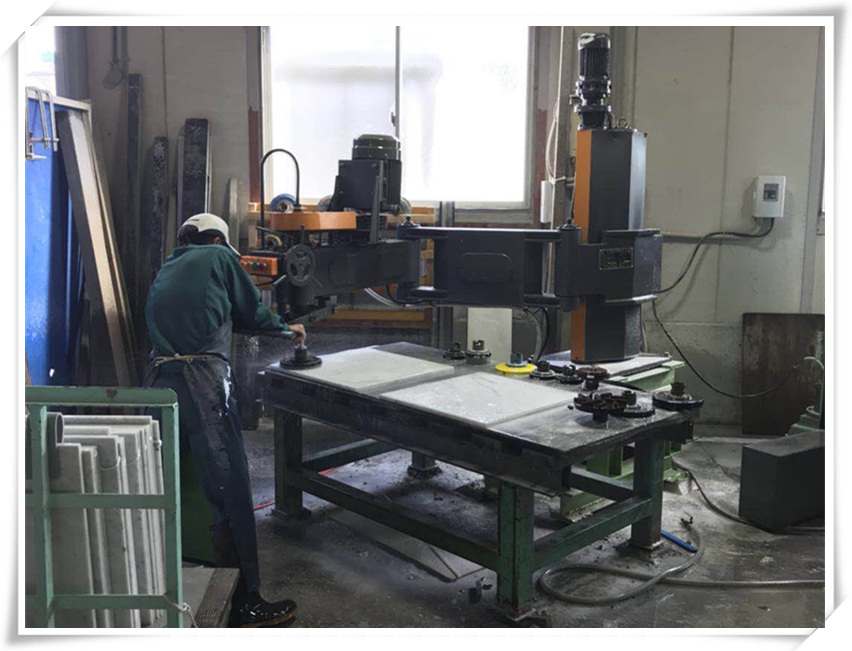

Photos
