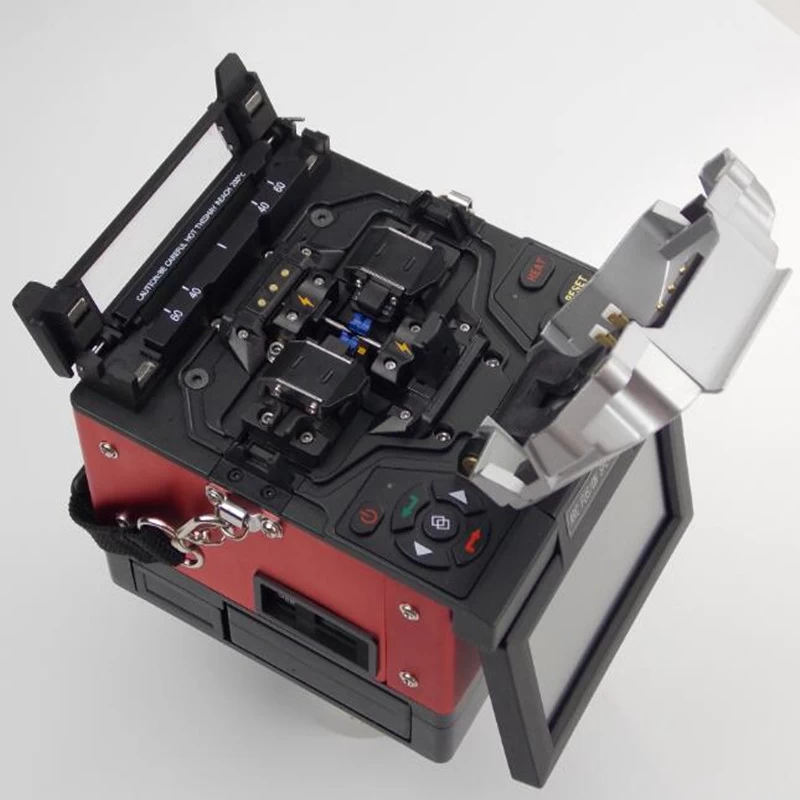

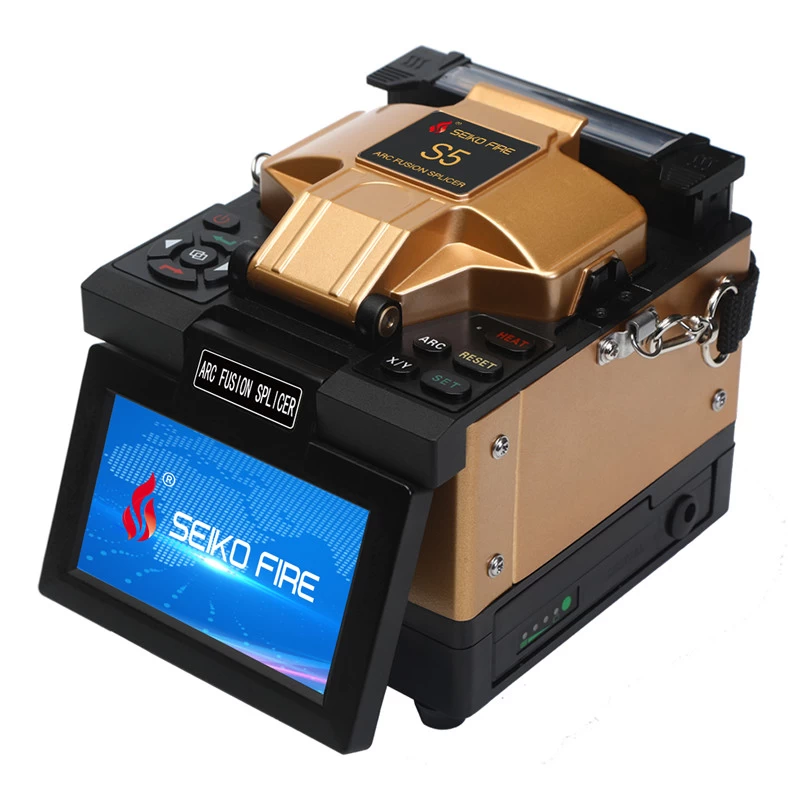

Handheld FTTH Fiber Fusion Splicer S5

Classic fiber splicing machine.

4.3-inch touch screen, small size, easy to carry.

Dust-resistant, water-resistant, shock-resistant, greater environment adaptability.

Facebook Twitter Pinterest LinkedIn 分享

Introduction

S5 is a stable performance optical fiber fusions splicer with 4 motors, mainly used for fusion and protection of common communications fibers. The battery of large-capacity ensures long-time field operations. As one of the leading  manufacturers in China, we will offer you low price and best services.


Features

  • Core to core digital alignment
  • 6s for splicing, 18s for tube-heating.
  • 4.3-inch touch screen, small size, easy to carry.

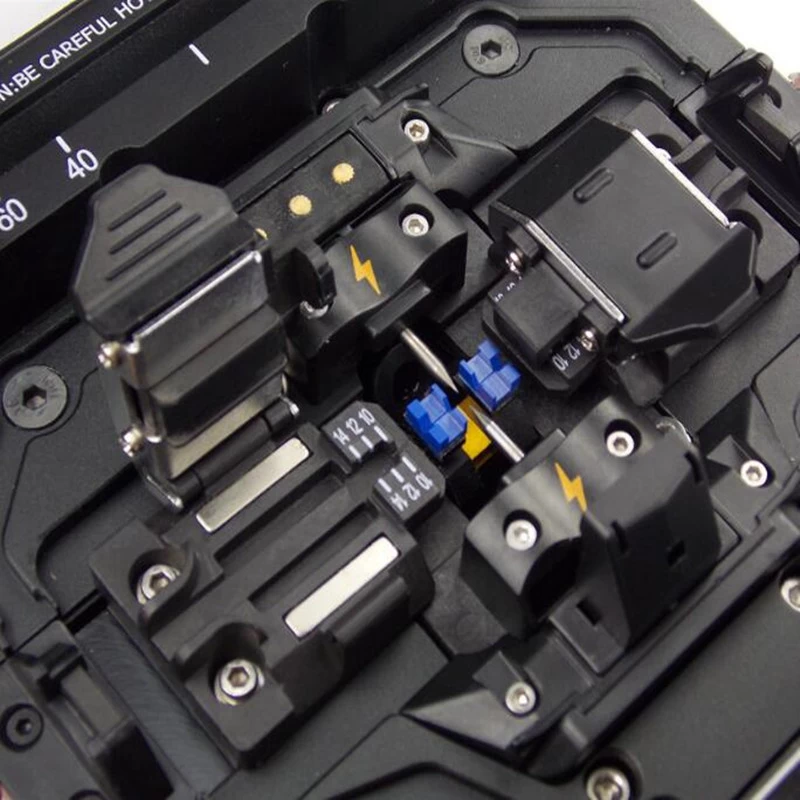

  • Three-in-one fiber fixture, suitable for all types of optic fibers.
  • High-power dual-LED light, convenient for night construction.
  • 5200mAh removable lithium battery, 280 cycles splicing and heating.
  • ARC calibrated by temperature and air pressure automatically
  • No mirror design, reducing maintenance workload.
  • Apply to high & low temperature, high altitude and harsh environment.


Specifications

Fiber count

Single

Applicable fiber

SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657)

Splicing loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)

Return loss

>60dB

Operate mode

Manual, Auto

Fiber alignment

Core to core alignment

Splicing time

Typical 6s

Heating time

Typical 18s

Heat shrinkable tube

60mm, 40mm

Fiber cleaved length

8-16mm

Fiber view magnification

350X (X or Y view), 150X (X and Y view)

Display

4.3-inch touch-screen LCD

Tension test

2N

Battery capacity

5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged.

Electrode life

Around 5000 ARC discharges

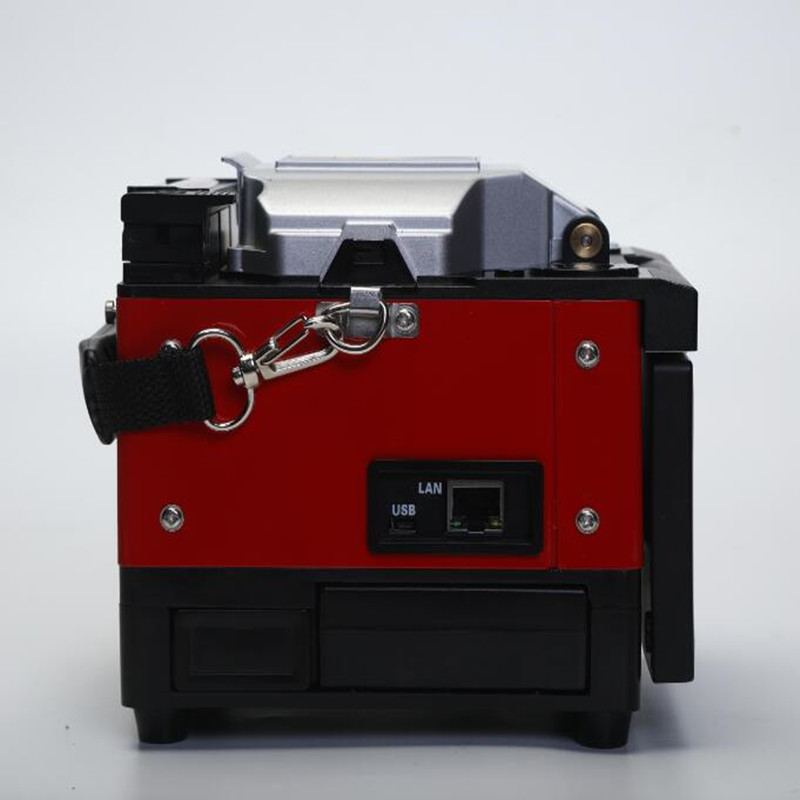

Interface

USB for data download and software update

Night construction

Built-in high-power dual-LED lights

Power supply

Adaptor, input: AC100-240V, output: DC13.5V/4.8A.

Operation condition

Temperature: -15-50℃, humidity: <95%RH (no condensation)

Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s

Weight

1.95 kg (including battery)

Dimension

130mm(L)×154mm(W)×132mm(H)

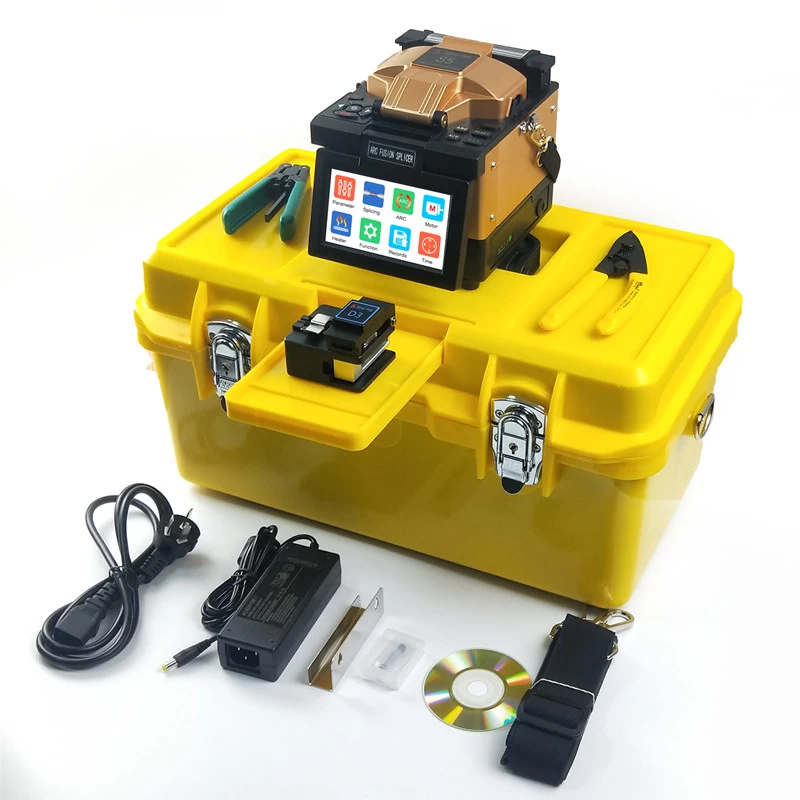

Standard Package

No

Items

Qty

1

Fusion splicer

1

2

Fiber cleaver

1

3

Fiber stripper

1

4

Drop cable stripper

1

5

AC adaptor

1

6

P.S cord

1

7

Spare electrodes

1 pair

8

Cooling tray

1

9

Manual (CD)

1

10

Carrying case

1

11

Calibration certificate

1
