Handheld Ultrasonic Cell Disintegration Ultrasonic Cell Lysis


  • Model NumberOLT-UI
  • Model Number1
  • ComplianceCE Certified
  • Screen LCD display
  • VoltageTwo Years Limited Warranty With Lifetime Support
  • Warranty Western Union, T/T, L/C
  • Packaging Details Export wooden package

1. Handheld ultrasonic cell lysis add automatic or manual operation working mode ( foot switch is optional ).
2. UP series ultrasonic cell disintegration, its ultrasonic power could be continuously adjustable with 1% precision.

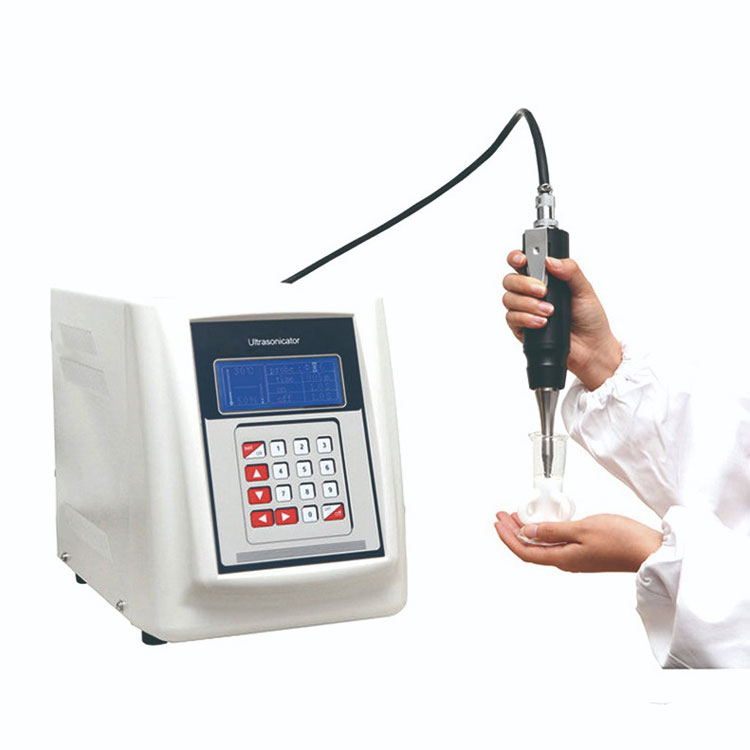

3. This type handheld micro ultrasonic cell crusher's transducer has small size and light weight, you could hold it in hand to do micro sample research, also could put it on fixed support.

1.You could use it to crush a variety of animal & plant cells, viruses cells, also suitable for emulsification, separate, homogenization, extraction, defoaming, cleaning and speed up chemical reaction,etc.

2.Ultrasonic cell disintegration is suitable for biological chemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology,etc.


Model

OLT-UI-20

OLT-UI-21

OLT-UI-22

Frequency

(KHz)

20-30KHz Automatic tracking

20-30KHz Automatic tracking

20-30KHz Automatic tracking

Power(W)

2.5-250W adjustable

5-400W adjustable

5-400W adjustable

Horn (mm)

Φ3 or Φ5

Φ6

Φ6

Optional Horn (mm)

Φ2、Φ3、Φ6

Φ2、Φ3、Φ5、Φ8

Φ2、Φ3、Φ5、Φ8

Crush Capacity

(ml)

0.1-150

0.1-300

0.1-300

Temperature alarm range

0-100 ℃

Instrument protection function

Over-temperature, over-power, overtime protection

Foot switch

Optional

Display

LCD display






1. We will try to reply your inquires in 24 hours.

2. All our sales stuff will stand stand in customer’s position, and service you from the perspective of customers.
3. Most of our machine can be customized, so you can tell your kinds of requirement before ordering. We will try to meet client’s requirement.
4. If need we sales sometimes can’t answer your questions, here we have experienced engineer to assist the sales disambiguation for your answer.
