Hanger Bearing Units is one design of mounted ball bearing unit, UCHA2 is the suffix of this type bearing unit, the bearing unit have UC chrome steel pillow block bearings and HA housing with cast iron materials.
The bearing UC Series insert bearing have the same internal structure with deep groove ball bearing, but the insert bearing have the spherical outer surface of the outer ring and the wider inner ring.
|

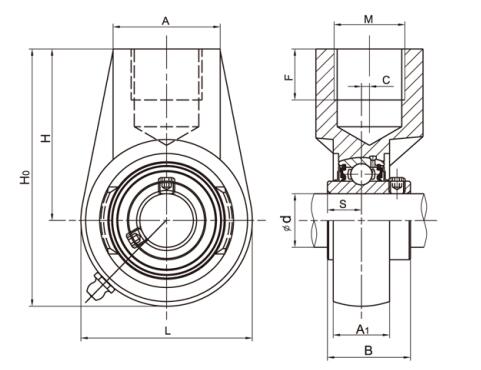

Unit No.
|
Shaft Dia
|
Dimensions(mm)
|
Weight
|
|
d
|
L
|
Ho
|
H
|
A
|
M(in)
|
F
|
C
|
A1
|
B
|
S
|
(kg)
|
|
(in)
|
(mm)
|
|
UCHA204
|
|
20
|
64
|
96
|
64
|
40
|
G3/4
|
19
|
0
|
21
|
31
|
12.7
|
0.70
|
|
UCHA204-12
|
3/4
|
|
64
|
96
|
64
|
40
|
G3/4
|
19
|
0
|
21
|
31
|
12.7
|
0.70
|
|
UCHA205
|
|
25
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
24
|
34.1
|
14.3
|
0.74
|
|
UCHA205-14
|
7/8
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
24
|
34.1
|
14.3
|
0.74
|
|
UCHA205-15
|
15/16
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
24
|
34.1
|
14.3
|
0.74
|
|
UCHA205-16
|
1
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
24
|
34.1
|
14.3
|
0.74
|
|
UCHA206
|
|
30
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
28
|
38.1
|
15.9
|
0.91
|
|
UCHA206-17
|
1-1/16
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
28
|
38.1
|
15.9
|
0.91
|
|
UCHA206-18
|
1-1/8
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
28
|
38.1
|
15.9
|
0.91
|
|
UCHA206-19
|
1-3/16
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
28
|
38.1
|
15.9
|
0.91
|
|
UCHA206-20
|
1-1/4
|
|
78
|
103
|
64
|
40
|
G3/4
|
19
|
0
|
28
|
38.1
|
15.9
|
0.91
|
|
UCHA207
|
|
35
|
92
|
116
|
70
|
40
|
G3/4
|
19
|
0
|
30
|
42.9
|
17.5
|
1.19
|
|
UCHA207-20
|
1-1/4
|
|
92
|
116
|
70
|
40
|
G3/4
|
19
|
0
|
30
|
42.9
|
17.5
|
1.19
|
|
UCHA207-21
|
1-5/16
|
|
92
|
116
|
70
|
40
|
G3/4
|
19
|
0
|
30
|
42.9
|
17.5
|
1.19
|
|
UCHA207-22
|
1-3/8
|
|
92
|
116
|
70
|
40
|
G3/4
|
19
|
0
|
30
|
42.9
|
17.5
|
1.19
|
|
UCHA207-23
|
1-7/16
|
|
92
|
116
|
70
|
40
|
G3/4
|
19
|
0
|
30
|
42.9
|
17.5
|
1.19
|
|
UCHA208
|
|
40
|
100
|
123
|
73
|
40
|
G3/4
|
19
|
2
|
33
|
49.2
|
19.0
|
1.36
|
|
UCHA208-24
|
1-1/2
|
|
100
|
123
|
73
|
40
|
G3/4
|
19
|
2
|
33
|
49.2
|
19.0
|
1.36
|
|
UCHA208-25
|
1-9/16
|
|
100
|
123
|
73
|
40
|
G3/4
|
19
|
2
|
33
|
49.2
|
19.0
|
1.36
|
|
UCHA209
|
|
45
|
108
|
136
|
82
|
48
|
G1
|
21
|
5
|
35
|
49.2
|
19.0
|
1.78
|
|
UCHA209-26
|
1-5/8
|
|
108
|
136
|
82
|
48
|
G1
|
21
|
5
|
35
|
49.2
|
19.0
|
1.78
|
|
UCHA209-27
|
1-11/16
|
|
108
|
136
|
82
|
48
|
G1
|
21
|
5
|
35
|
49.2
|
19.0
|
1.78
|
|
UCHA209-28
|
1-3/4
|
|
108
|
136
|
82
|
48
|
G1
|
21
|
5
|
35
|
49.2
|
19.0
|
1.78
|
|
UCHA210
|
|
50
|
119
|
142
|
83
|
48
|
G1
|
21
|
5
|
37
|
51.6
|
19.0
|
1.93
|
|
UCHA210-30
|
1-7/8
|
|
119
|
142
|
83
|
48
|
G1
|
21
|
5
|
37
|
51.6
|
19.0
|
1.93
|
|
UCHA210-31
|
1-15/16
|
|
119
|
142
|
83
|
48
|
G1
|
21
|
5
|
37
|
51.6
|
19.0
|
1.93
|
|
UCHA210-32
|
2
|
|
119
|
142
|
83
|
48
|
G1
|
21
|
5
|
37
|
51.6
|
19.0
|
1.93
|
|
UCHA211
|
|
55
|
126
|
150
|
87
|
60
|
G5/4
|
25
|
7
|
38
|
55.6
|
22.2
|
3.50
|
|
UCHA211-32
|
2
|
|
126
|
150
|
87
|
60
|
G5/4
|
25
|
7
|
38
|
55.6
|
22.2
|
3.50
|
|
UCHA211-34
|
2-1/8
|
|
126
|
150
|
87
|
60
|
G5/4
|
25
|
7
|
38
|
55.6
|
22.2
|
3.50
|
|
UCHA211-35
|
2-3/16
|
|
126
|
150
|
87
|
60
|
G5/4
|
25
|
7
|
38
|
55.6
|
22.2
|
3.50
|
|
UCHA212
|
|
60
|
142
|
173
|
102
|
60
|
G5/4
|
28
|
9
|
42
|
65.1
|
25.4
|
3.90
|
|
UCHA212-36
|
2-1/4
|
|
142
|
173
|
102
|
60
|
G5/4
|
28
|
9
|
42
|
65.1
|
25.4
|
3.90
|
|
UCHA212-38
|
2-3/8
|
|
142
|
173
|
102
|
60
|
G5/4
|
28
|
9
|
42
|
65.1
|
25.4
|
3.90
|
|
UCHA212-39
|
2-7/16
|
|
142
|
173
|
102
|
60
|
G5/4
|
28
|
9
|
42
|
65.1
|
25.4
|
3.90
|
|
UCHA213
|
|
65
|
166
|
200
|
117
|
70
|
G1-1/2
|
32
|
9.5
|
44
|
65.1
|
25.4
|
5
|
|
UCHA213-40
|
2-1/2
|
|
166
|
200
|
117
|
70
|
G1-1/2
|
32
|
9.5
|
44
|
65.1
|
25.4
|
5
|
