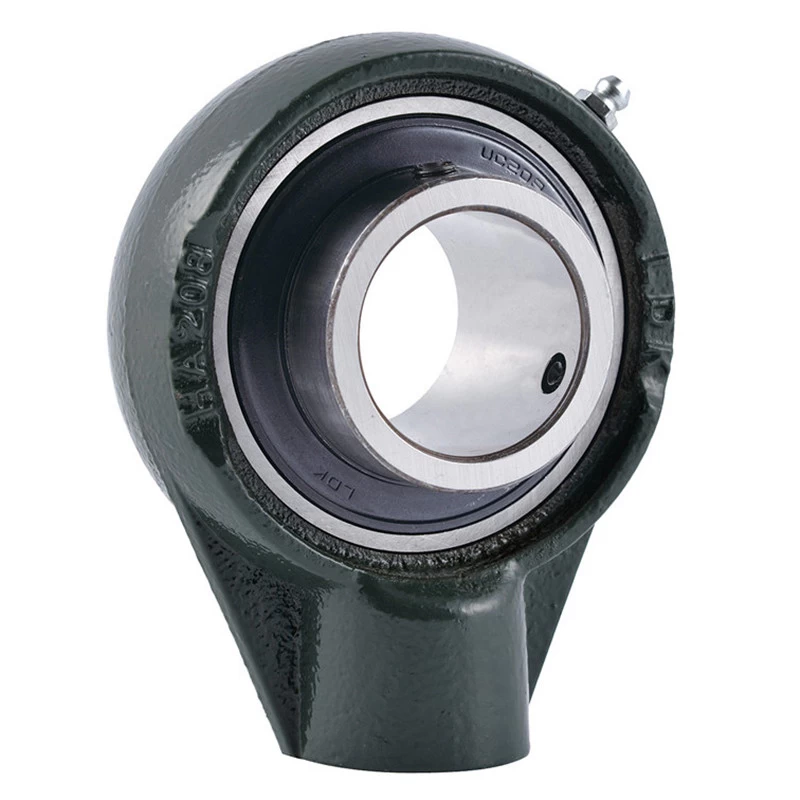

Hanger Bearing Units UCHA2

UCHA  Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Hanger Bearing Housing UCHA206

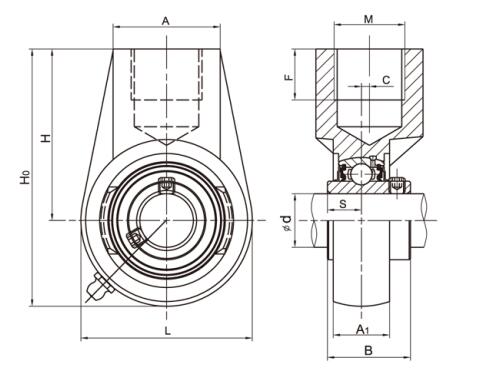

Unit No. Shaft Dia Dimensions(mm) Weight
d L Ho H A M(in) F C A1 B S (kg)
(in) (mm)
UCHA204    20 64 96 64 40 G3/4 19 0 21 31 12.7 0.70
UCHA204-12 3/4   64 96 64 40 G3/4 19 0 21 31 12.7 0.70
UCHA205   25 78 103 64 40 G3/4 19 0 24 34.1 14.3 0.74
UCHA205-14  7/8    78 103 64 40 G3/4 19 0 24 34.1 14.3 0.74
UCHA205-15 15/16   78 103 64 40 G3/4 19 0 24 34.1 14.3 0.74
UCHA205-16 1   78 103 64 40 G3/4 19 0 24 34.1 14.3 0.74
UCHA206   30 78 103 64 40 G3/4 19 0 28 38.1 15.9 0.91
UCHA206-17 1-1/16   78 103 64 40 G3/4 19 0 28 38.1 15.9 0.91
UCHA206-18 1-1/8   78 103 64 40 G3/4 19 0 28 38.1 15.9 0.91
UCHA206-19 1-3/16   78 103 64 40 G3/4 19 0 28 38.1 15.9 0.91
UCHA206-20 1-1/4   78 103 64 40 G3/4 19 0 28 38.1 15.9 0.91
UCHA207   35 92 116 70 40 G3/4 19 0 30 42.9 17.5 1.19
UCHA207-20 1-1/4   92 116 70 40 G3/4 19 0 30 42.9 17.5 1.19
UCHA207-21 1-5/16   92 116 70 40 G3/4 19 0 30 42.9 17.5 1.19
UCHA207-22 1-3/8   92 116 70 40 G3/4 19 0 30 42.9 17.5 1.19
UCHA207-23 1-7/16   92 116 70 40 G3/4 19 0 30 42.9 17.5 1.19
UCHA208   40 100 123 73 40 G3/4 19 2 33 49.2 19.0 1.36
UCHA208-24 1-1/2   100 123 73 40 G3/4 19 2 33 49.2 19.0 1.36
UCHA208-25 1-9/16   100 123 73 40 G3/4 19 2 33 49.2 19.0 1.36
UCHA209   45 108 136 82 48 G1 21 5 35 49.2 19.0 1.78
UCHA209-26  1-5/8    108 136 82 48 G1 21 5 35 49.2 19.0 1.78
UCHA209-27 1-11/16   108 136 82 48 G1 21 5 35 49.2 19.0 1.78
UCHA209-28 1-3/4   108 136 82 48 G1 21 5 35 49.2 19.0 1.78
UCHA210   50 119 142 83 48 G1 21 5 37 51.6 19.0 1.93
UCHA210-30  1-7/8    119 142 83 48 G1 21 5 37 51.6 19.0 1.93
UCHA210-31 1-15/16   119 142 83 48 G1 21 5 37 51.6 19.0 1.93
UCHA210-32 2   119 142 83 48 G1 21 5 37 51.6 19.0 1.93
UCHA211   55 126 150 87 60 G5/4 25 7 38 55.6 22.2 3.50
UCHA211-32  2   126 150 87 60 G5/4 25 7 38 55.6 22.2 3.50
UCHA211-34 2-1/8   126 150 87 60 G5/4 25 7 38 55.6 22.2 3.50
UCHA211-35 2-3/16   126 150 87 60 G5/4 25 7 38 55.6 22.2 3.50
UCHA212   60 142 173 102 60 G5/4 28 9 42 65.1 25.4 3.90
UCHA212-36 2-1/4    142 173 102 60 G5/4 28 9 42 65.1 25.4 3.90
UCHA212-38 2-3/8   142 173 102 60 G5/4 28 9 42 65.1 25.4 3.90
UCHA212-39 2-7/16   142 173 102 60 G5/4 28 9 42 65.1 25.4 3.90
UCHA213   65 166 200 117 70 G1-1/2 32 9.5 44 65.1 25.4  
UCHA213-40 2-1/2   166 200 117 70 G1-1/2 32 9.5 44 65.1 25.4  
