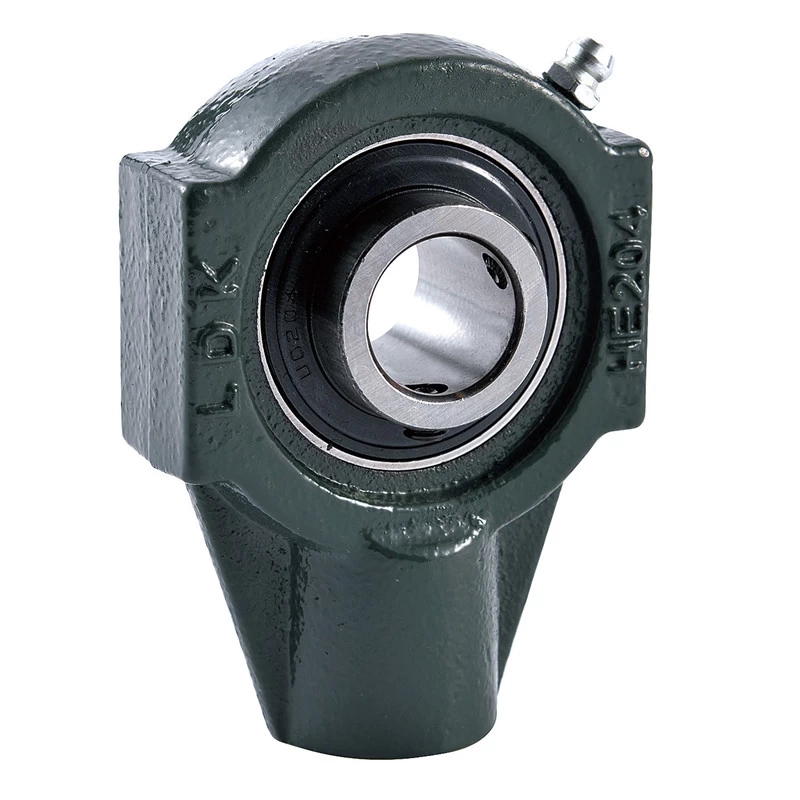

Hanger Bearing Units UCHE2

UCHE  Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

UCHE208 Hanger Bearing Housing

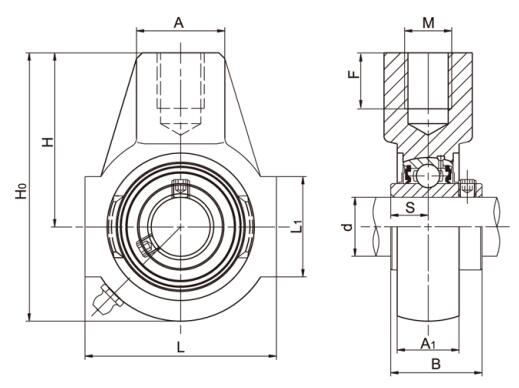

Unit No. Shaft Dia Dimensions(mm) Weight
d L Ho H A M F L1 A1 B S (kg)
(in) (mm)
UCHE201    12 65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE201-8 1/2   65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE202   15 65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE202-9 9/16   65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE202-10 5/8   65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE203    17 65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE203-11 11/16   65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE204    20 65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE204-12 3/4   65 91 58 30 M16 21 38 24 31 12.7 0.61
UCHE205   25 70 99 64 35 M20 22 38 24 34.1 14.3 0.79
UCHE205-14  7/8    70 99 64 35 M20 22 38 24 34.1 14.3 0.79
UCHE205-15 15/16   70 99 64 35 M20 22 38 24 34.1 14.3 0.79
UCHE205-16 1   70 99 64 35 M20 22 38 24 34.1 14.3 0.79
UCHE206   30 85 114 72 40 M24 24 40 32 38.1 15.9 1.23
UCHE206-17 1-11/16   85 114 72 40 M24 24 40 32 38.1 15.9 1.23
UCHE206-18 1-1/8   85 114 72 40 M24 24 40 32 38.1 15.9 1.23
UCHE206-19 1-3/16   85 114 72 40 M24 24 40 32 38.1 15.9 1.23
UCHE206-20 1-1/4   85 114 72 40 M24 24 40 32 38.1 15.9 1.23
UCHE207   35 90 122 76 40 M24 24 48 30 42.9 17.5 1.44
UCHE207-20 1-1/4   90 122 76 40 M24 24 48 30 42.9 17.5 1.44
UCHE207-21 1-5/16   90 122 76 40 M24 24 48 30 42.9 17.5 1.44
UCHE207-22 1-3/8   90 122 76 40 M24 24 48 30 42.9 17.5 1.44
UCHE207-23 1-7/16   90 122 76 40 M24 24 48 30 42.9 17.5 1.44
UCHE208   40 101 135 85 40 M24 24 45 33 49.2 19 1.82
UCHE208-24 1-1/2   101 135 85 40 M24 24 45 33 49.2 19 1.82
UCHE208-25 1-9/16   101 135 85 40 M24 24 45 33 49.2 19 1.82
UCHE209   45 110 145 90 40 M24 24 46 40 49.2 19 2.05
UCHE209-26 1-5/8    110 145 90 40 M24 24 46 40 49.2 19 2.05
UCHE209-27 1-11/16   110 145 90 40 M24 24 46 40 49.2 19 2.05
UCHE209-28 1-3/4   110 145 90 40 M24 24 46 40 49.2 19 2.05
UCHE210   50 110 145 90 40 M24 24 46 40 51.6 19 2.13
UCHE210-30 1-7/8    110 145 90 40 M24 24 46 40 51.6 19 2.13
UCHE210-31 1-15/16   110 145 90 40 M24 24 46 40 51.6 19 2.13
UCHE210-32 2   110 145 90 40 M24 24 46 40 51.6 19 2.13
