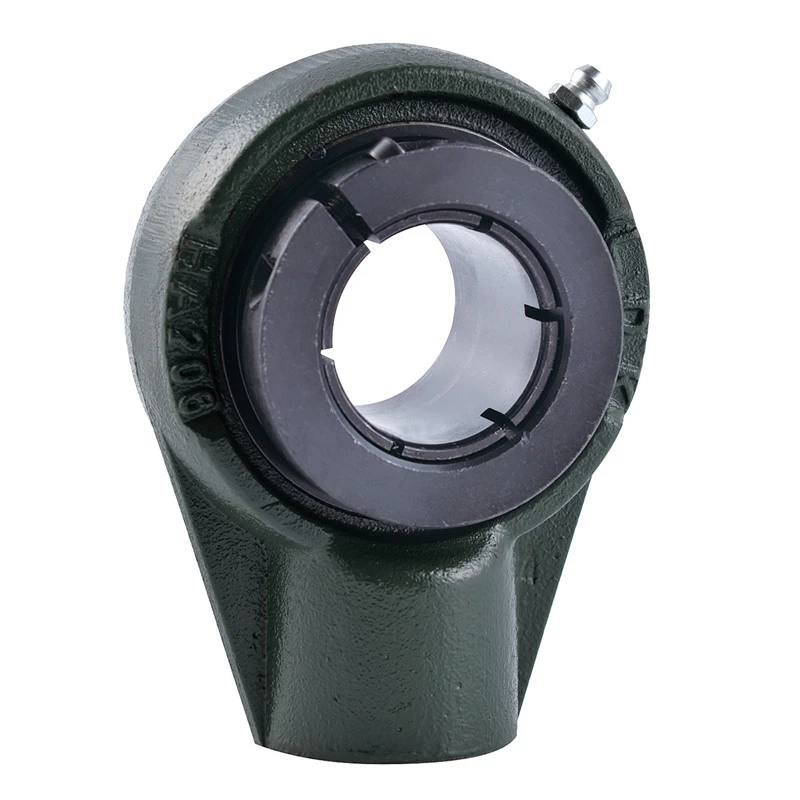

Hanger Bearing Units UEHA2

UEHA  Standard duty,Wider inner ring bearing, Concentric locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Hanger Bearing Housing UEHA210

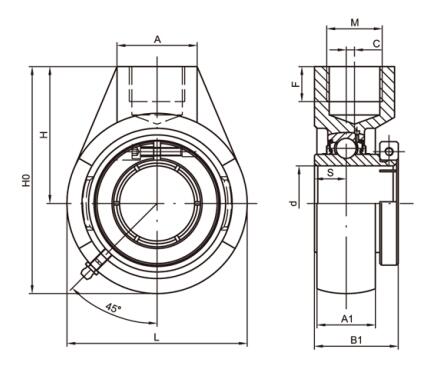

Unit No. Shaft Dia Dimensions(mm) Weight
d L H0 H A M(in) F C A1 B1 S (kg)
(in) (mm)  
UEHA204    20 64 96 64 40 G3/4 19 0 21 33 12.7 0.77
UEHA204-12 3/4  
UEHA205   25 78 103 64 40 G3/4 19 0 24 35.4 14.3 0.95
UEHA205-14  7/8   
UEHA205-15 15/16  
UEHA205-16 1  
UEHA206   30 78 103 64 40 G3/4 19 0 28 39.8 15.9 1.03
UEHA206-17 1-1/16  
UEHA206-18 1-1/8  
UEHA206-19 1-3/16  
UEHA206-20 1-1/4  
UEHA207   35 92 116 70 40 G3/4 19 0 30 43.9 17.5 1.38
UEHA207-20 1-1/4  
UEHA207-21 1-5/16  
UEHA207-22 1-3/8  
UEHA207-23 1-7/16  
UEHA208   40 100 123 73 40 G3/4 19 2 33 50.2 19.0 1.54
UEHA208-24 1-1/2  
UEHA208-25 1-9/16  
UEHA209   45 108 136 82 48 G1 21 5 35 50.2 19.0 2.35
UEHA209-26  1-5/8   
UEHA209-27 1-11/16  
UEHA209-28 1-3/4  
UEHA210   50 119 142 83 48 G1 21 5 37 52.6 19.0 2.56
UEHA210-30  1-7/8   
UEHA210-31 1-15/16  
UEHA210-32 2  
UEHA211   55 126 150 87 60 G5/4 25 7 38 56.6 22.2 3.12
UEHA211-32  2  
UEHA211-34 2-1/8  
UEHA211-35 2-3/16  
UEHA212   60 142 173 102 60 G5/4 28 9 42 66.6 25.4 4.47
UEHA212-36  2-1/4   
UEHA212-38 2-3/8  
UEHA212-39 2-7/16  
