Hanger Bolts For Solar Panels L feet POW-TRB-D26

Hanger bolts for installing your solar panels on corrugated iron, fiber-cement, etc.



Hanger Bolts For Solar Panels L feet POW-TRB-D26



Product Description:

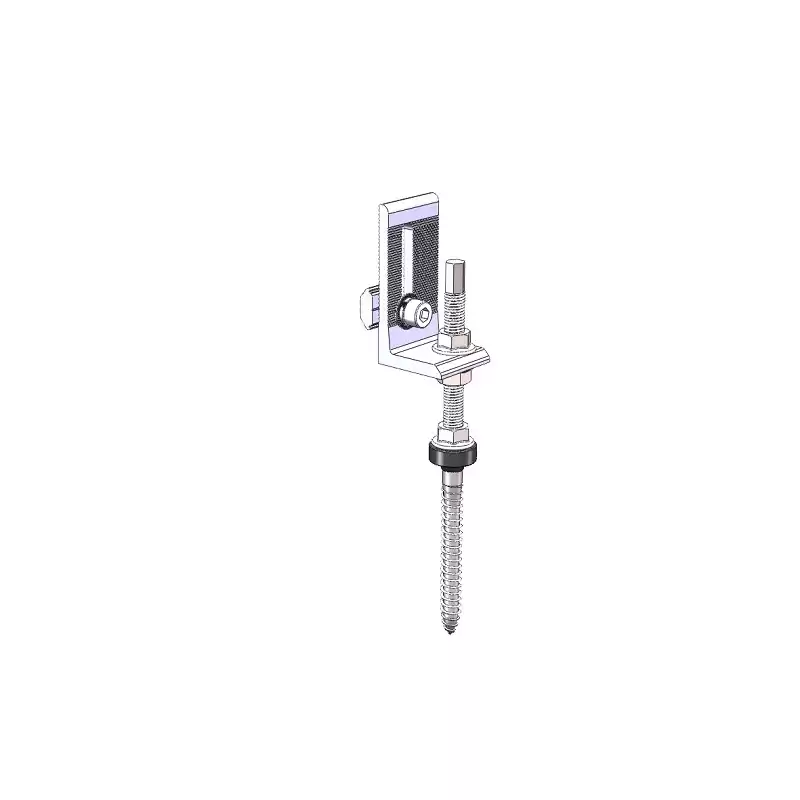

This solar mounting L-Bracket is made from Aluminium and is supplied with a stainless steel wood screw that allows for height to be adjusted. Once the Solar Mounting L-Bracket has been fixed to the roof then you will be able to attached the solar mounting rail.   The stainless steel wood screw allows for height adjustment and can work with many different roof profiles and curved roofs.

Product Category:

Tin interface



Product Code:

POW-TRB-D26



 BOM:

Product name Material Quantity
2# Offset hole L Feet Al6005-T5 1
M8X25 hex socket head bolt SUS 304
1
M8 spring washer SUS 304 1
M8 lock washer SUS 304 1
POW nuts Al6005-T5 1
Rubber pad EPDM
1
Hanger bolts, optional specifications: M10×180, M10×200, M10×250, M10×300 SUS 304
1
Φ24×13.5 Rubber mat EPDM
1
M10 Hexagon nuts with flange
SUS 304
3

Suitable for:

Corrugated Fibre Cement, Corrugated or Trapezoidal sheet metal

Why choose us:

Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules.  A design that includes major specifications saves you inventory cost, quick and easy to install.  Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use.  Powerack have a large variety of tin roof brackets provide customers options.  Customized allowed according to customer needs to meet special installation requirements.
