The Controller of HAO-TQ-BN-1219-1 UV LED Spot Type UV Curing Systems can be equipped with up to four individually controlled LED heads and, due to their small size, can be easily integrated into existing systems. Different types of UV-LED heads are available with an irradiation wavelength of either 365nm, 385nm or 405nm. Because cooling occurs naturally (without a fan), the systems are well suited for use in clean rooms. To provide the best possible irradiation for the application in question, thirty different lenses are available for the heads. You can control the heads by either using the user-friendly panel on the front of the controller or via the digital interface.

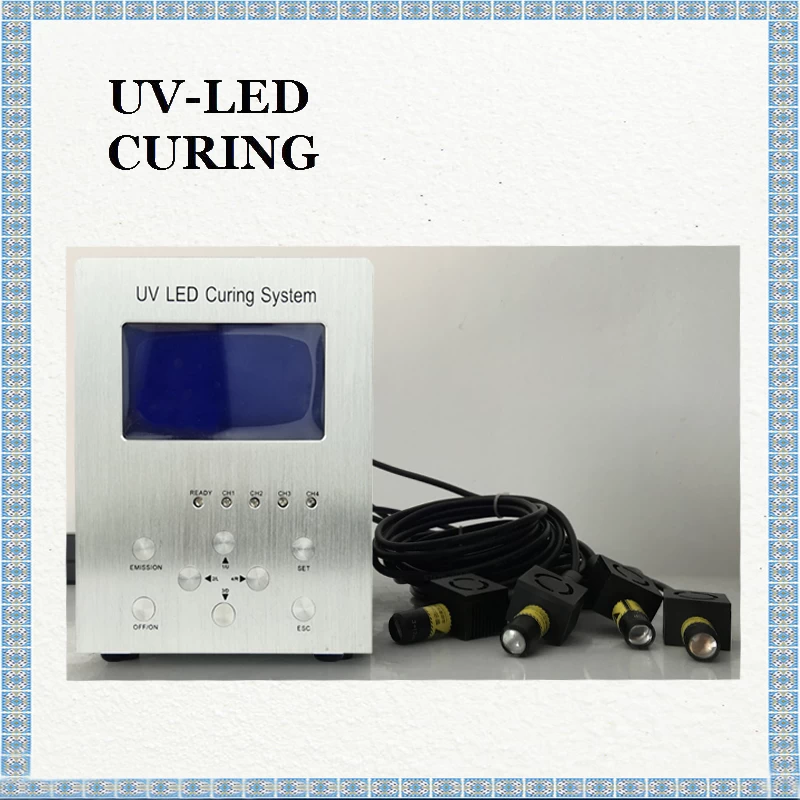

The Description of Spot Type UV Curing Machine Control Panel
①LCD
② ④Direction Key for setting function operation and as switch key of 4 lights (CH1/CH2/CH3/CH4)
③SET
⑤ESC: Exit and store the data in the device
⑥OFF/ON
⑦Function Light: when you are setting, the light is flickering.
The Description of LED UV Spot Curing Machine Back Panel
①RS232 Connector ②Foot-switch Jack ③Electrical Socket Outlet ④ THE Lights Connector ⑤Power Switch
The Specification of UV LED Spot Light:
|
Name
|
UV LED Spot Light Source
|
|
Type
|
HAO-TQ-BN-1219-1
|
|
Wavelength
|
365nm
|
|
UV Irradiation head
|
1-4, fan cooling
|
|
UV Irradiation Mode
|
Round Spot 15mm
|
|
Irradiation Distance
|
1-20mm
|
|
Operation Mode
|
AUTO MANU PULSE
|
|
Power
|
0-100%
|
|
Light Intensity
|
4000-9900mW/cm2
|
|
Cooling Method
|
Pure Aluminum Shell Natural Cooling Fan Cooling
|
|
Supply Voltage
|
7.5-36VDC
|
|
Power Consumption
|
50VA
|
|
Ambient Temperature
|
+5- +40℃
|
|
Ambient Humidity
|
20-60%
|
|
Size
|
L: 166mm W: 100mm H: 138mm
|
|
Weight
|
2.5kg
|
Caution :
1.Package and Transport
When transporting equipment, use random packing materials. Any damage caused by improper packing equipment is not not under warranty.
2.Daily Use and Maintain
LED irradiation head is needed be cleaned regularly. Please use soft buckskin, lens paper and alcohol to clean, ensuring the irradiation intensity and good heat dissipation.
Cleaning the controller regularly. Please wipe with a little alcohol with a cleaning tool. In order to protect the surface of facility, don’t use the volatile liquid or having ammonium hydroxide ingredient to clean (diluent or benzene, etc.).
Attention :
Please do no unauthorized remove the controller and UV LED irradiation head, leading the product to work abnormally.

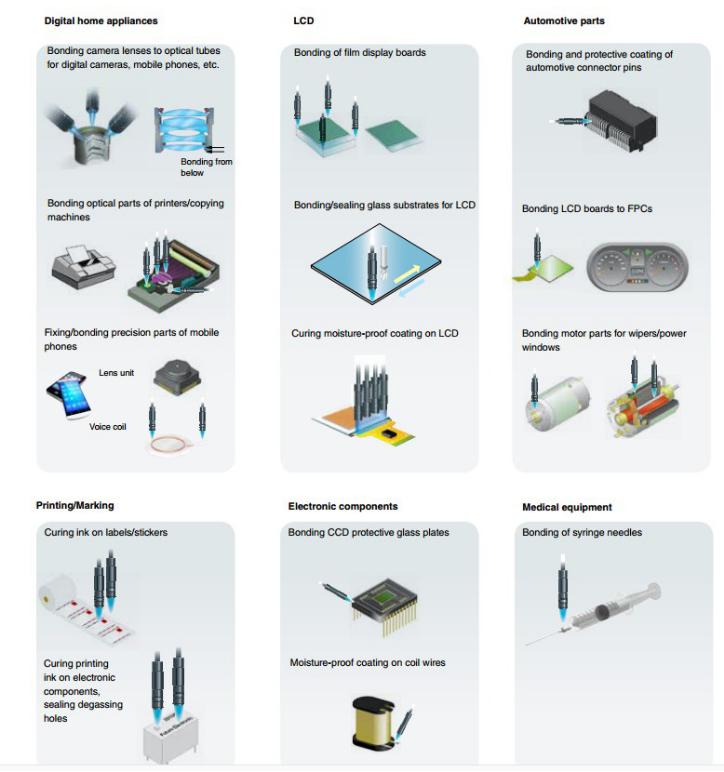

Which Filed is Suitable for Spot Type UV Curing Light Source?
