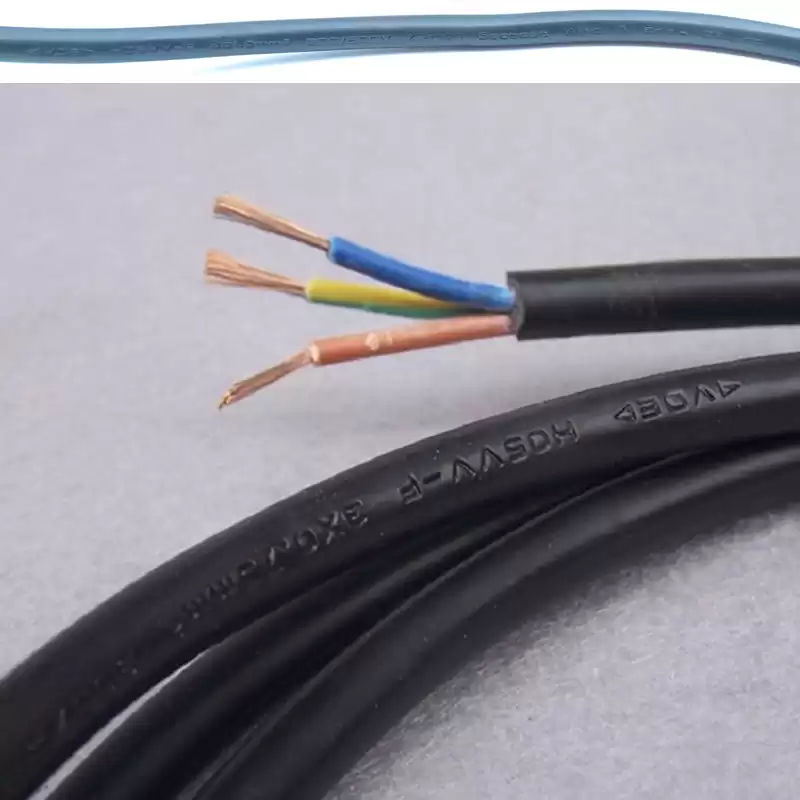

Harmonised Flexible PVC Electrical Wire And Cable H05VV-F

H05VV-F is a harmonized, light duty, oil-resistant, flexible, PVC multi-conductor European cord. Recommended for use in connecting small electrical appliances under medium mechanical stress environments as in offices, kitchens and households. It can commonly be found in connections in damp and wet areas as in refrigerators, washing machines and spin-dryers. These cables are suitable to be used in cooking and heating apparatus if there is no actual direct contact with the hot parts or other heat influences. These cables are also suitable for fixed applications in furniture, wall partitions, decoration coverings and in hollow spaces of prefabricated building parts.



Harmonised Flexible PVC Electrical Wire And Cable H05VV-F



PRODUCTS FEATURES

  • Conductor: Class 5 flexible copper conductor
  • Voltage Rating (Uo/U): 300/500V
  • Temperature Rating:  +70°C
  • Insulation: PVC

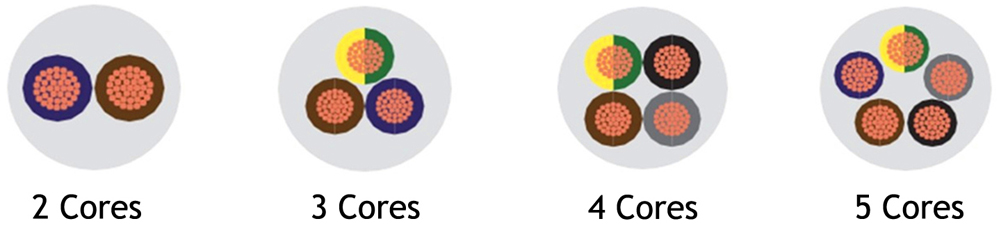

  • Core Identification: 2 core: Blue Brown; 3 core: Green/Yellow Blue Brown; 4 core: Green/Yellow Brown Black Grey; 5 core: Green/Yellow Brown Black Grey Blue
  • Sheath: PVC
  • Sheath Colour: White, Black


PRODUCTS APPLICATION

Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.


PRODUCTS STRUCTURE

H05VV-F Flexible Cables structure as below:

H05VV-F Flexible Cable

---Conductor Material

     Plain annealed copper wire, stranded Class 5.

---Insulation Material

     Flexible PVC(polyvinyl chloride).

---Sheath Material

     Flexible PVC (polyvinyl chloride).


PRODUCTS SPECIFICATION

Type

No. Of Cores x Nominal Cross Section

Conductor Material

Conductor Structure

Insulation Material

Insulation Thickness

Sheath Material

Sheath Thickness

Reference Max. Diameter

Reference Weight

Voltage Rating

Max. DC Resistance at 20℃

Min. Insulation Resistance at 70℃


Reference Ampacity In Air
at 40℃


(mm2)

(pcs/mm)

(mm)

(mm)

(mm)

(kg/km)

(U0/U)

(Ω/km)

(MΩ.km)

(A)

H03VV-F

2 x 0.5


Class 5
Flexible Copper


28/0.15

PVC

0.5

PVC

0.6

5.6

39

300/300V

39.0

0.012

10

H03VV-F

2 x 0.75


Class 5
Flexible Copper


24/0.20

PVC

0.5

PVC

0.6

5.6

48

300/300V

26.0

0.010

12

H05VV-F

2 x 1


Class 5
Flexible Copper


32/0.20

PVC

0.6

PVC

0.8

6.6

66

300/500V

19.5

0.010

14

H05VV-F

2 x 1.5


Class 5
Flexible Copper


30/0.25

PVC

0.7

PVC

0.8

7.6

90

300/500V

13.3

0.001

18

H05VV-F

2 x 2.5


Class 5
Flexible Copper


49/0.25

PVC

0.8

PVC

1

9.3

136

300/500V

8.0

0.009

25

H03VV-F

3 x 0.5


Class 5
Flexible Copper


28/0.15

PVC

0.5

PVC

0.6

5.6

47

300/300V

39.0

0.012

8

H03VV-F

3 x 0.75


Class 5
Flexible Copper


24/0.20

PVC

0.5

PVC

0.6

5.9

58

300/300V

26.0

0.010

10

H05VV-F

3 x 1


Class 5
Flexible Copper


32/0.20

PVC

0.6

PVC

0.8

7.1

82

300/500V

19.5

0.010

12

H05VV-F

3 x 1.5


Class 5
Flexible Copper


30/0.25

PVC

0.7

PVC

0.9

8.3

114

300/500V

13.3

0.010

15

H05VV-F

3 x 2.5


Class 5
Flexible Copper


49/0.25

PVC

0.8

PVC

1.1

10.2

170

300/500V

8.0

0.009

21
