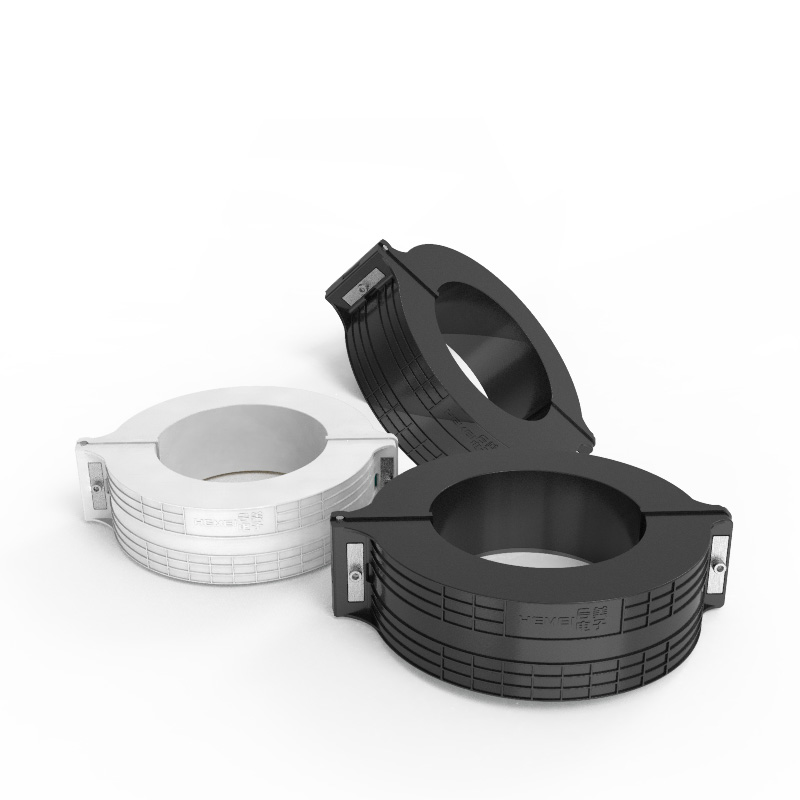

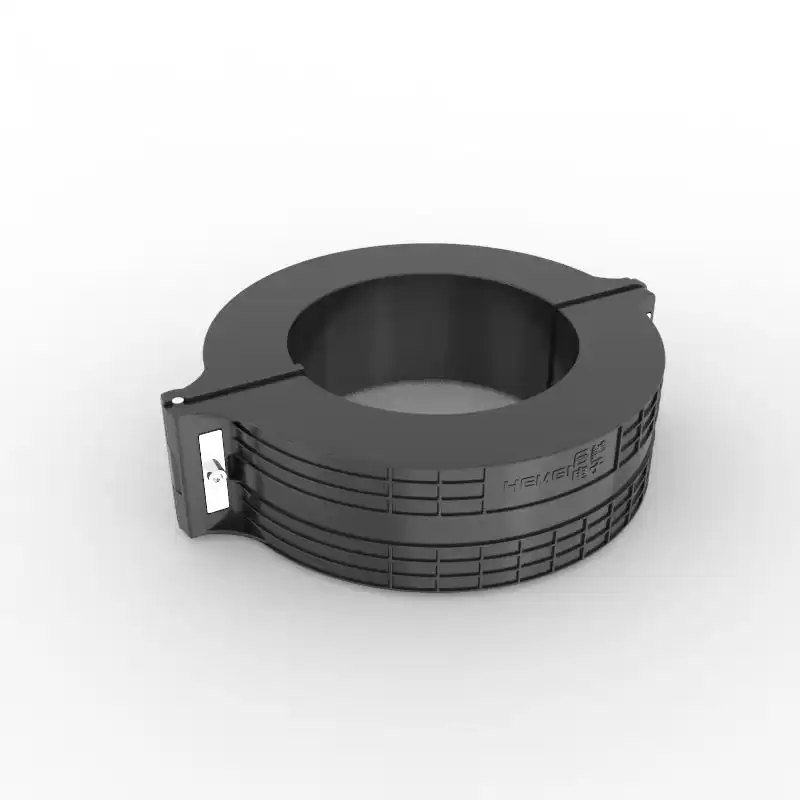

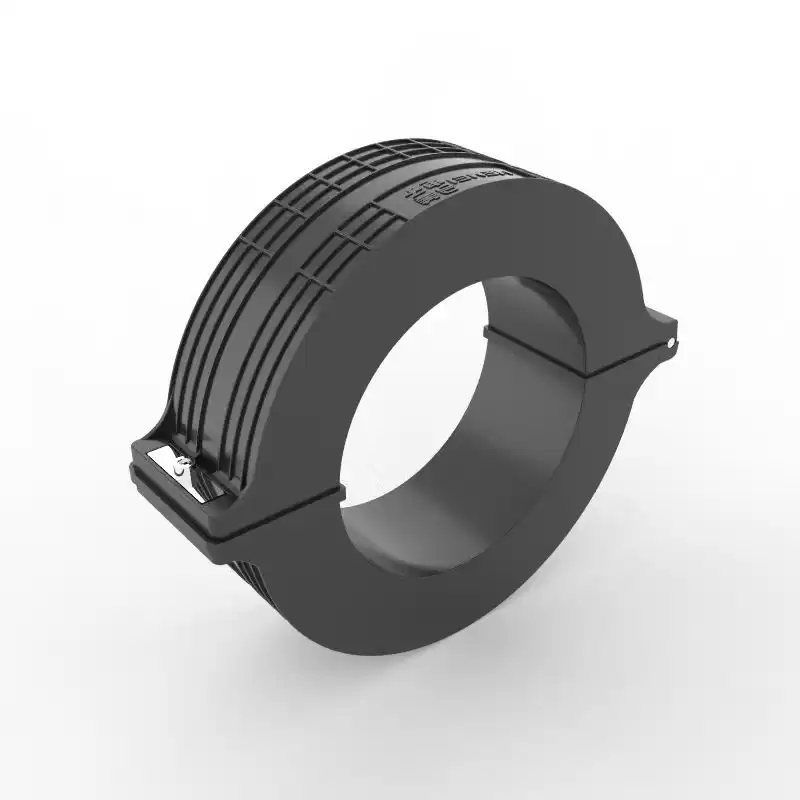

Harvesting Energy Current Transformer Self Powered Current Transducer manufacturer OEM ODM

Products can be customised

The harvesting energy current transformers can be installed outdoors directly exposed, measuring the current and converting the conductor current into electrical energy through electromagnetic induction, providing energy for other components.



Working principle:

With a perfect team of talents, many actual engineering cases and rich experience, Hemei Electronics has accumulated a lot of engineering application experience in various industries. Our harvesting energy current transformer is tested by practical application, widely praised.



Application:

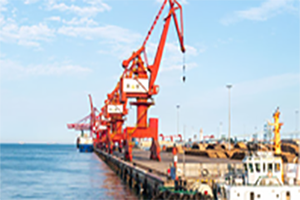

High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application

  • New energy vehicles

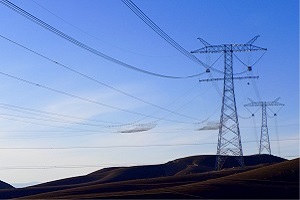

  • Electricity industry

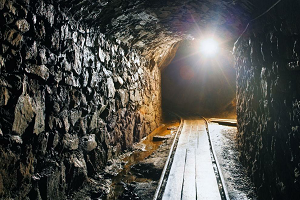

  • Underground mines
  • High-speed rail
  • metallurgy

Feature:

1. The harvesting energy CT is of open structure, easy to install and operate.

2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.

3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

4. Energy transformers and induction power modules are used.

5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.

6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.



Harvesting Energy CT can be customised

Output Power

Inner diameter

Continuous current

Waterproof level

Voltage

Accuracy

Core Material

10A/0.5W

40mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

45mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

30A/5W

45mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

10A/1W

50mm

4000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

60mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/4W

120mm

2000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

160mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/5W

160mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

160mm

2000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

180mm

2000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

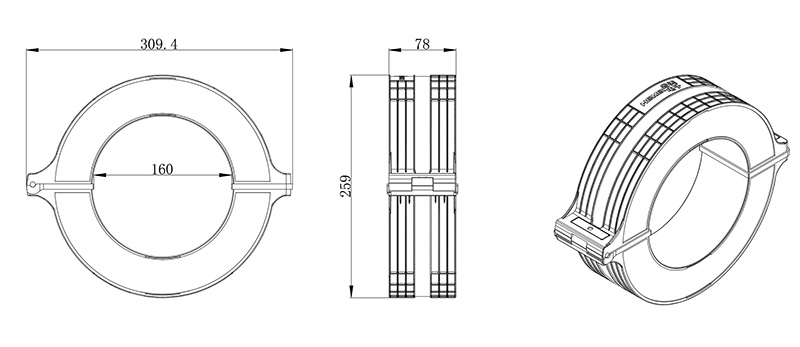

Dimension drawing:

Services process:

Raw material control - production and processing - product manufacturing - finished product testing - finished product warehousing - after-sales quality tracking
