Haswell 4th U series 3.5" motherboard 2LAN 6COM 8USB

ES3-H4DL268

3.5 inch motherboard, Soldered on board Intel® Haswell U series 4 generation 3805U 4200U CPU, 2LAN 6COM 8USB



3.5" single board computer Soldered on board Intel® Haswell U series 4 generation CPU, 2LAN 6COM 8USB



Product Introduction

Experience exceptional performance with our 3.5" embedded motherboard featuring a soldered-on Intel® Haswell U series 4th generation processor. Elevate your computing capabilities with cutting-edge technology and seamless integration. Unleash the power of innovation with a compact yet powerful solution for your industrial needs.

Product Features

■ Soldered onboard Intel® Haswell U Series 4 generation Celeron/Pentium/i3 / i5 / i7 CPU

■ 2 x Realtek 8111 Gigabit LAN cards

■ VGA, HDMI, LVDS or EDP interface

■ 6COM, 6USB2.0, 2USB3.0

■ 8-bit GPIO

■ SIM card holder

■ 1 x MSATA, 1 x Mini PCIE expansion





Specification

CPU/GPU

Soldered onboard Intel® Haswell U Series 4 generation Celeron/Pentium/i3 / i5 / i7 CPU

Memory

2×DDR3 SO-DIMM laptop slot,up to 16GB SDRAM

Storage

2×SATA ,1×M-SATA

Sound Card

Realtek HD Audio

NIC

2×Realtek8111 gigabit LAN

Display Card

CPU integrated graphic

Display Interface

1×VGA, 1×HDMI;1× LVDS or EDP

USB2.0

6

USB3.0

2

GPIO

8 bits(4 in,4 out)

COM

6COM RS232

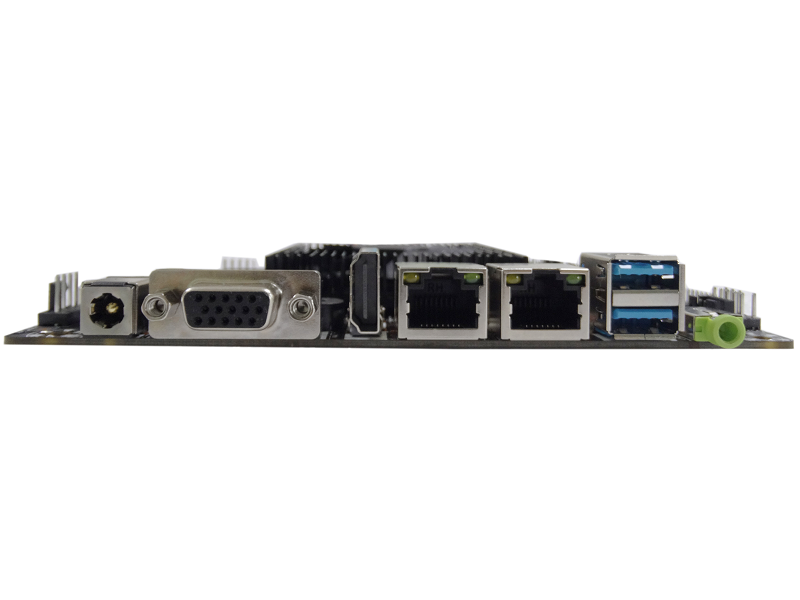

Backplane I / O

DC in, VGA, HDMI, 2 RJ45 LAN, 2 USB3.0,  Line-out

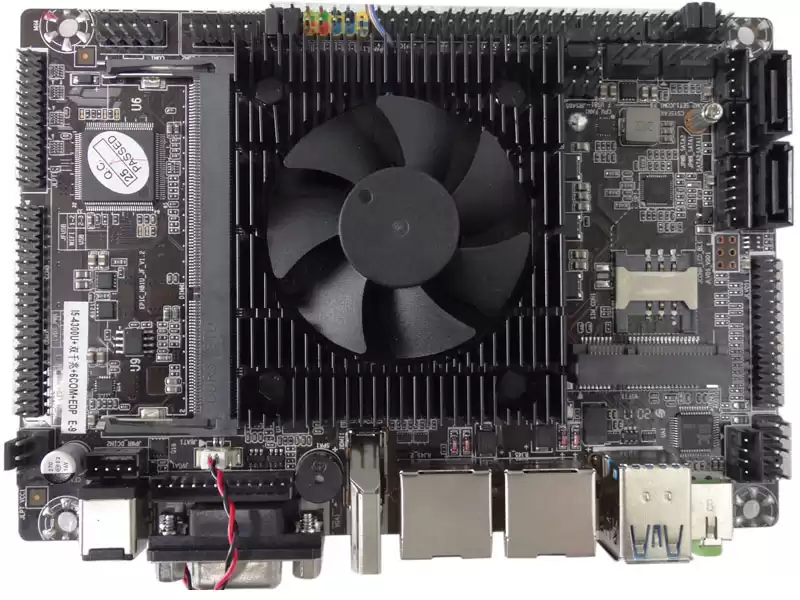

Board I / O

6 USB ,  6 COM ,  front audio ,  CLR_CMOS ,  CPU fan power ,  GPIO

Front panel ,  Speaker,  SIM Socket,  4P DC in,  LVDS or EDP,  invert,  Print

Expansion

1 MSATA,  1 MINI PCIE

System

 Support Windows(WIN 7,WIN 10 ...),Linux



Mechanical & Environmental

Power Supply

DC 12V

Heat Dissipation

Fan

Size(L×W)

146mm×102mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environmental Humidity

0~90% air humidity,no condensation

Packing List

ES3-H4DL268 motherboard×1,SATA data cable×1,SATA power cable×1



Order Information

ES3-3805DL268

Intel@ Haswell 3805U Pentium Dual Core 1.9G CPU

ES3-H4DL268-I3

Intel@ Haswell i3 4005U,4030U/5005U/5030U optional

ES3-H4DL268-I5

Intel@ Haswell i5 4200U,4300U/5200U/5300U optional

ES3-H4DL268-I7

Intel@ Haswell i7 4500U,4600U/5500U/5600U optional
