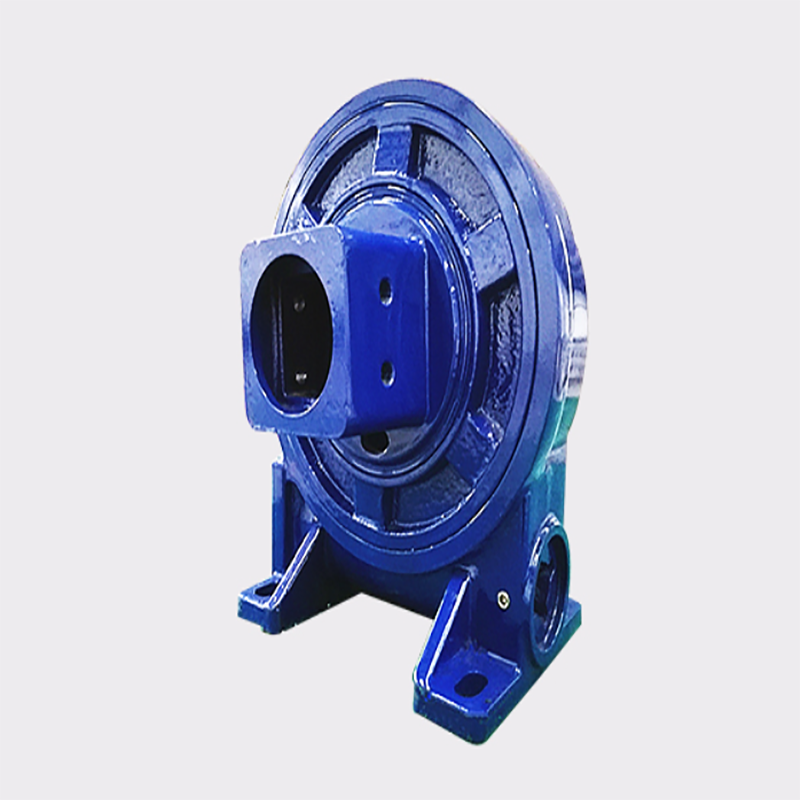

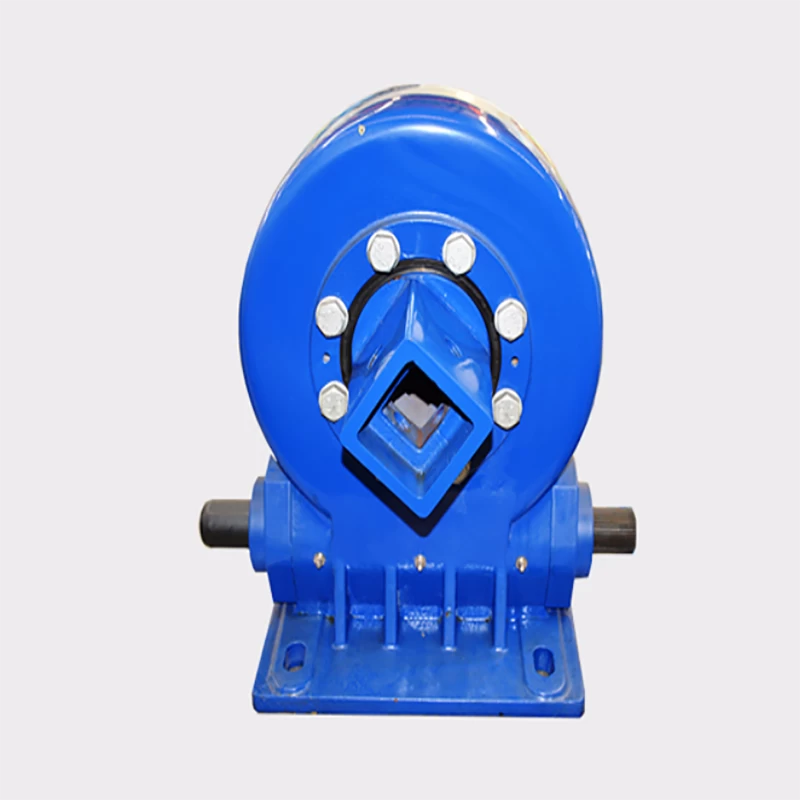

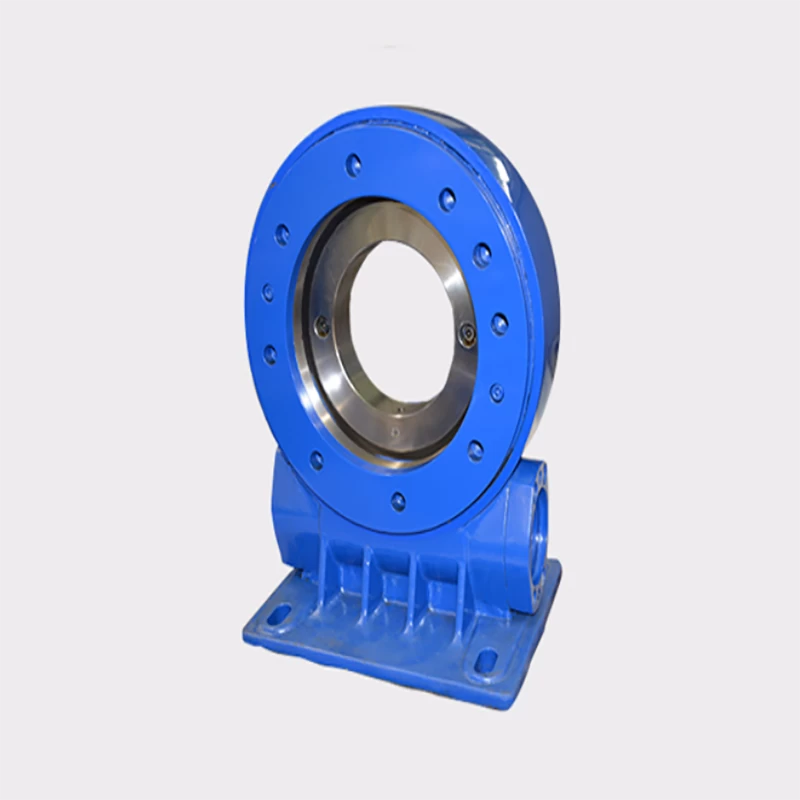

This product is a Dual Axia Enclosed Slewing Drive For Solar Energy.
Due to the slewing bearing and the ring-wound worm structure, the rotary reducer can achieve multi-tooth contact, with large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning moment. (Anti-wind resistance), is being widely used in solar photovoltaic power generation tracking systems and other new energy industries by domestic and foreign customers. The product currently has 9 models ranging from 3 inches in diameter to 25 inches in diameter, more than 60 varieties, which can meet different forms of photovoltaic, optoelectronic, photothermal and precision tracking requirements.

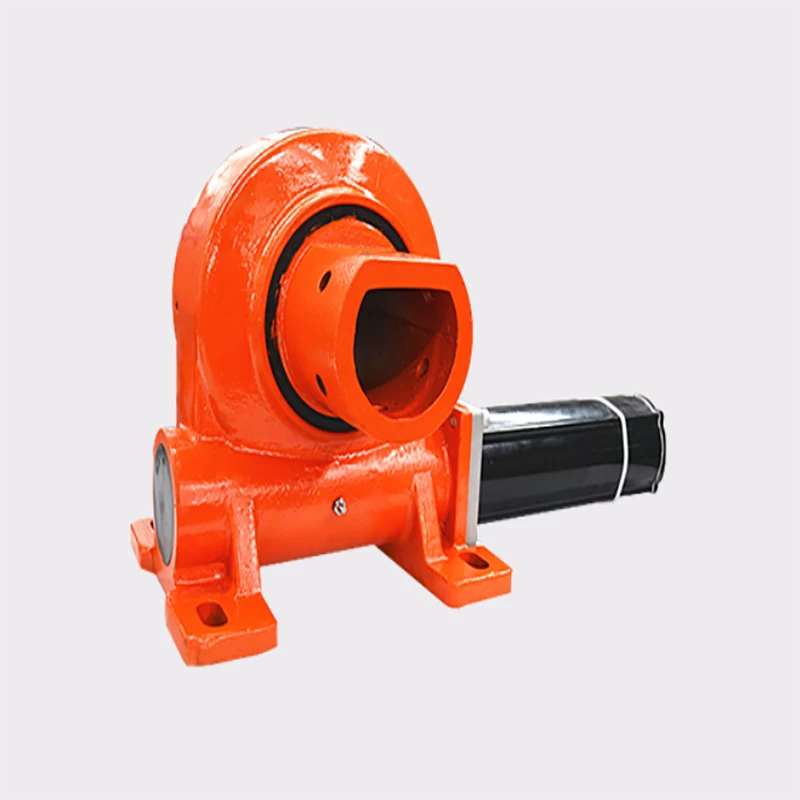

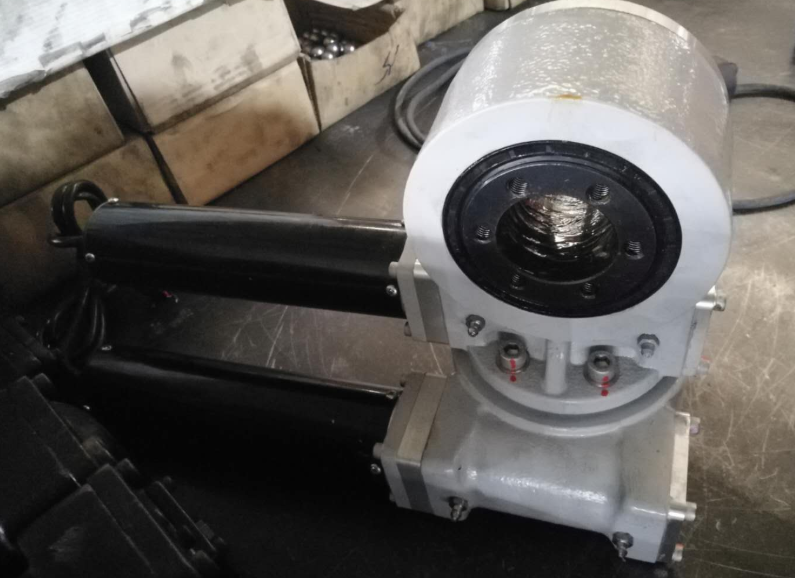

It is a Dual axis slewing drive powered by 24 V DC motors with one actuating the horizontal axis and the other the vertical axis.
Application advantages:
1. The vertical structure effectively simplifies the complex structure design of the horizontal rotary drive for solar energy, which needs to be equipped with brackets, and reduces the cost of the overall system. Chinese style
2. the surface of the product was treated by electrostatic powder spraying for two times, using epoxy zinc rich base powder and epoxy resin flour, greatly improving the corrosion resistance and aging resistance of the product, and neutral salt spray test for more than 1000 hours.
3. The raceway of slewing bearing and gear tooth surface are hardened, with high hardness and rigidity.
4. The service life can be up to 25 years.
5. It has self-locking function, which improves the use safety.
6. The transmission accuracy can reach 1mrad.
7. The combined slewing driveis developed based on the principle of maintenance free, with minimal maintenance.
8. The load and overturning moment of the product is greater than that of similar products in the market.
9. Through high and low temperature test, the product has strong temperature resistance.
10. The service life and heat dissipation efficiency of the national high-tech graphene synthetic grease are far beyond that of ordinary grease.
11. Adopt the design of hourglass worm, multi tooth contact, bearing large output torque.
Product features:
1. This Hermetically sealed Vertical Slewing Drive adopts blind hole design and framework oil seal sealing structure, with reliable sealing performance. The sealing position can avoid direct sunlight, effectively prevent dust and water, and the protection grade can reach IP65. It is suitable for outdoor use, and can be output with single flange or double flange.
2. Using special machine tools to produce hourglass worm, multi tooth contact, transfer larger torque, and be able to bear larger axial force, radial force and tipping torque.This product is a hourglass worm, multi tooth contact, transfer larger torque Slewing Drive and a Slewing Drive bear larger axial force, radial force and tipping torque.
3. The product design adopts the general size at home and abroad, which is convenient for later replacement.
3. The product design adopts the general size at home and abroad, which is convenient for later replacement. This product is a general size convenient replacement Slewing Drive.
Application scope:
It is mainly used for the rotation of the pitch direction of the solar energy tracking system, and also for the rotation of some special engineering machinery and industrial equipment.
rotation of pitch position of solar power generation system, such as flat single axis, inclined single axis, slot type power generation, concentrating power generation, etc.
Industrial equipment such as automatic feeding machine.

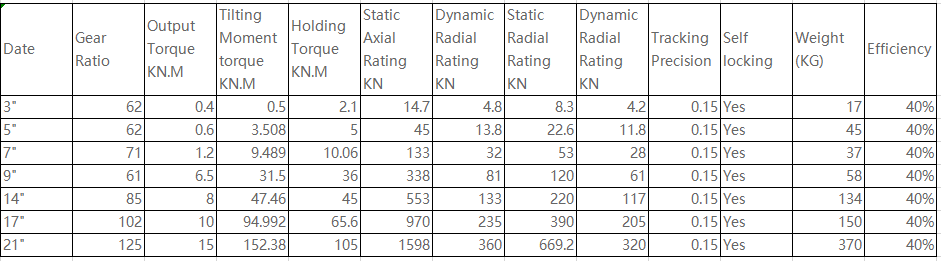

Comparison table of performance parameters:
