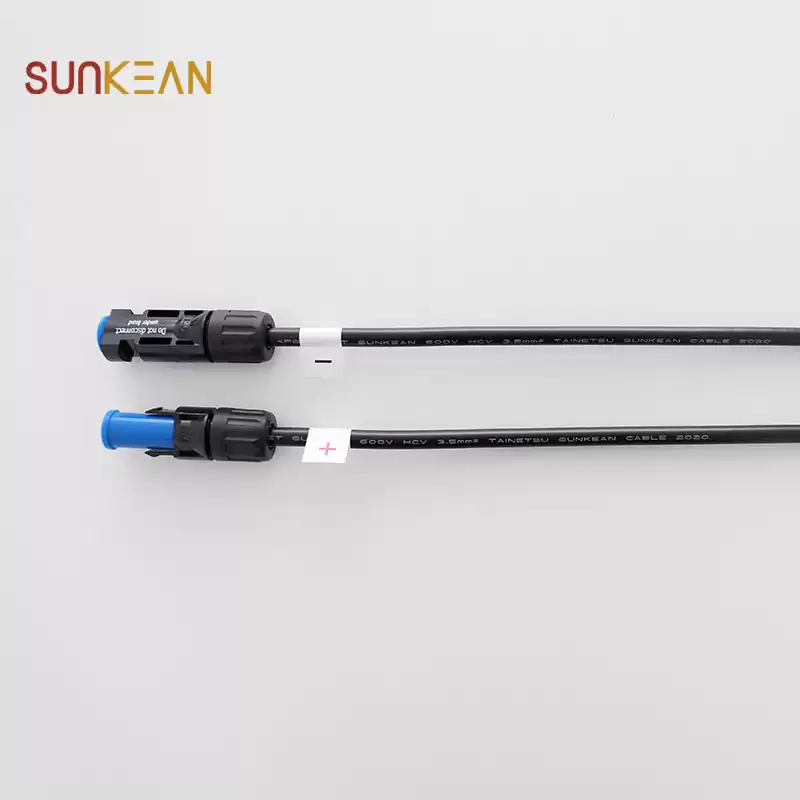

HCV Solar Extension Cable with DC Waterproof Connector Male Female
This HCV extension cable offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer’s unique needs between the solar panel and charge controller.
Product Characteristics:
CONNECTOR
|
No.
|
MC4
|
|
Rate Voltage
|
IEC 1500V &UL 1500V
|
|
Rated Current
|
39A
|
|
Safe Degree
|
Class II
|
|
Flammability Class
|
UL 94-V0
|
|
Contact Resistance
|
≤0.25mΩ
|
|
Degree of Protection
|
IP68
|
|
Solar Cable
|
Cross Section(mm2)
|
3.5mm2
|
|
Construction(No./mm)
|
7/0.8
|
|
Cable O.D.(mm)
|
6.7mm
|
|
Voltage Rating
|
600V
|
|
Test Voltage
|
2500V AC
|
|
Temperature Rating
|
Rated: -20°C to +90°C
|
|
Conductor Material
|
Stranded bare copper
|
|
Testing Standard
|
Flame Test : JIS C 3005
|
Product Processing:
Product Features:
------Connector is set up at SINGLE end of cable;
------Appointed length is acceptable;
------No need for terminal processing;
------Tinned copper contact is pre-assembled , no need for crush tool;
------If O.D. of two ends are different can also be connected;
------Application : used in solar system , module, junction box and so on.
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
