Product Name:HD 1080P 2.0MP Solar Battery WIFI Security Camera Low Power Consumption With Audio
Feature
●HD108OF 1920*1080,1/3 High-definition CMOS chip,resolution up to 2 Megapixel.

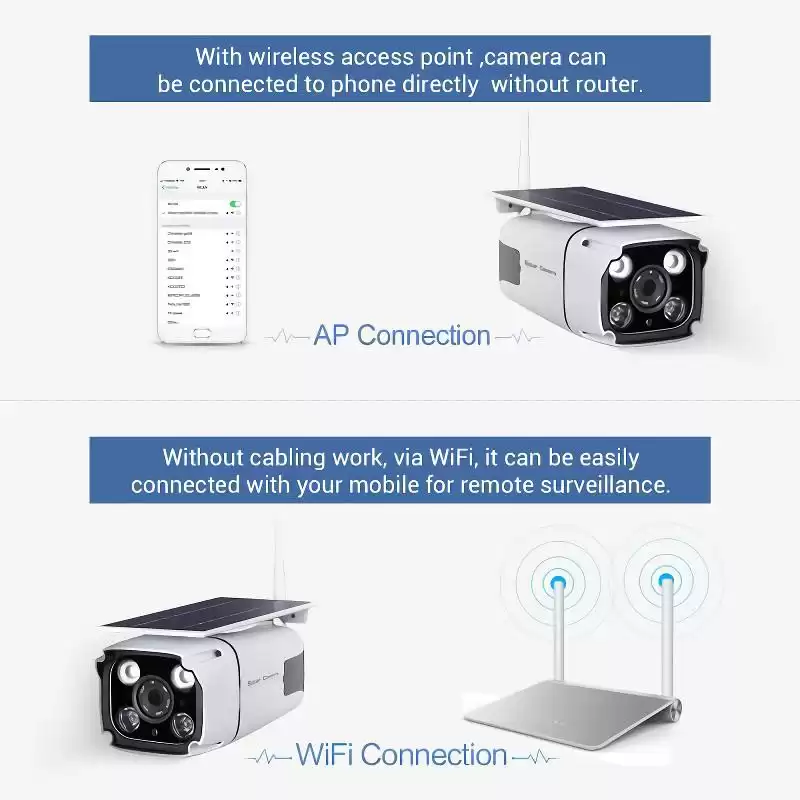

●AP Connection,camera can be connected to phone directly.WIFI Connection,it can be easily connected with your mobile for remote surveillance.
●Powered by 5200mAh polymer lithium battery,standby time more than180 days, intelligent power saving function,.

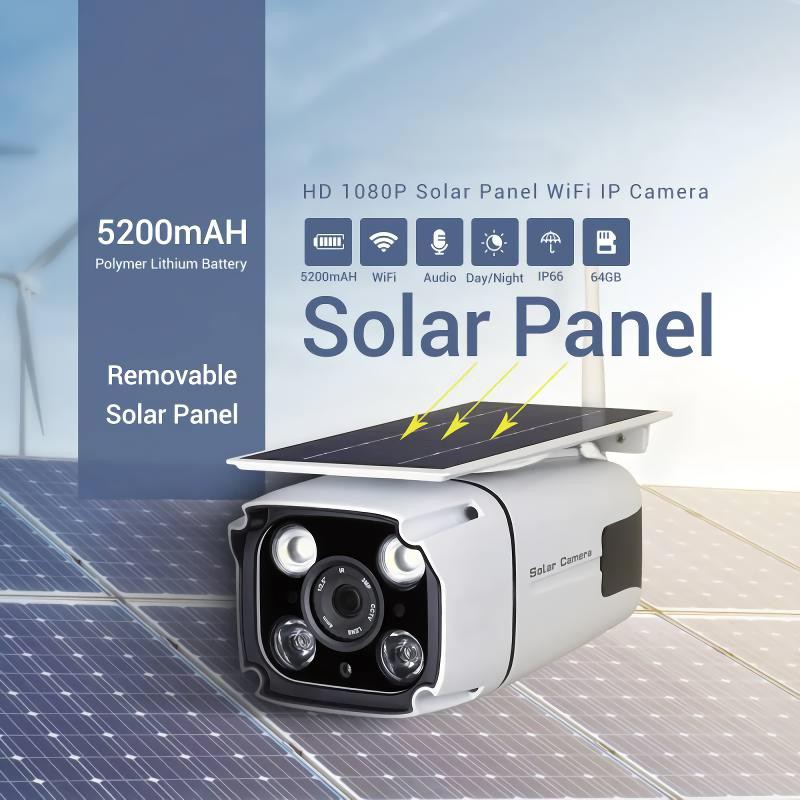

●Removable 2.2W solar panel,sustainable charge the battery and uninterruptible power supply for camera.
●Two Way Audio,Build in Microphone and speaker, it can get audio online from camera.
●Through the newest algorithm, the equipment Motion Detection push ac-curate alarm,it will make alarm record and save.

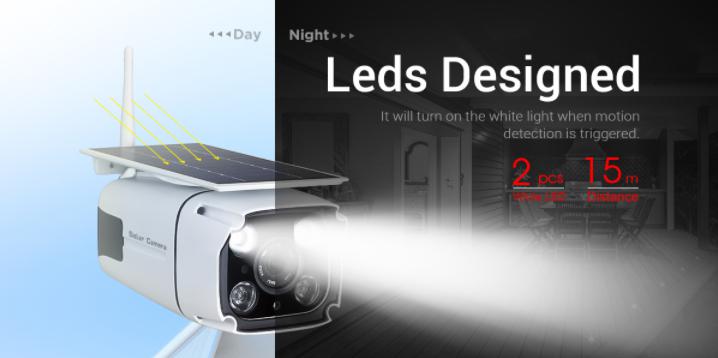

●Built-in low power infrared lamp, can effectively improve the night vision sharpness, max up to 15m IR Range.2 pcs IR LED,2 pcs White LED.
●Build in TF Card Slot, support max up to 64GB
●Adopts high sensitivity IP66 waterproof microphone,and the products can be used indoors and outdoors.
Specification
|
Model
|
ANSDEN YAB-QF260
|
|
Camera Parameter
|
|
Master chip
|
Hi3518EV200
|
|
Sensor type
|
2.0MP 1/2.9" CMOS sensor
|
|
WIFI agreement
|
WIFI 2.4GHz， IEEE 802.11 b/g/n
|
|
Effective pixels
|
2MP
|
|
Image size
|
1920*1080
|
|
Focal length
|
4mm
|
|
Angle of view
|
70º
|
|
IR distance
|
15m
|
|
Battery capacity
|
5200mAh
|
|
Solar panel power
|
2.5W（Detachable)
|
|
Max Charge Current
|
456mA
|
|
Night mode
|
White light (fill light) and infrared manual switching
|
|
White light power
|
2W LED 1W*2
|
|
Infrared power
|
2W LED 1W*2
|
|
Storage capacity
|
The 32G card can be stored for about 45 days (storing about 9000 videos, According to each shooting 15 seconds, start up 200 times a day calculation), if there's no space,the earliest video would be replaced by the latest one.Support max to 64G TF card.
|
|
Induction principle
|
HMD（Human Motion Detection）
|
|
Induction range
|
0~10m
|
|
detection angle
|
120º
|
|
Working temperature
|
-10℃ to 60℃
|
|
Working humidity
|
0%-90%RH
|
|
Power supply
|
Photoelectric dual-purpose, solar + built-in lithium battery power supply
|
|
Stand-by power consumption
|
0.0076W
|
|
Shooting power consumption
|
Day time≤1.4W，Night≤2.4W
|
|
Waterproof
|
IP67
|
|
Accessories
|
Camera* 1,Mounting bracket* 1,Screw package * 1,Instructions * 1,Tweezer*1,3m Extension cable*1,1m Extension cable,Antenna*1
|
|
Product size
|
195mm*100mm*95mm
|
|
Product weight
|
0.8kg
|
|
Packing size
|
256mm*205mm*124mm
|
|
Packing weight
|
1.27kg
|
|
Carton size
|
635mm*537mm*430mm
|
|
Gross weight
|
27.5kg
|
|
Case qty
|
20/box
|

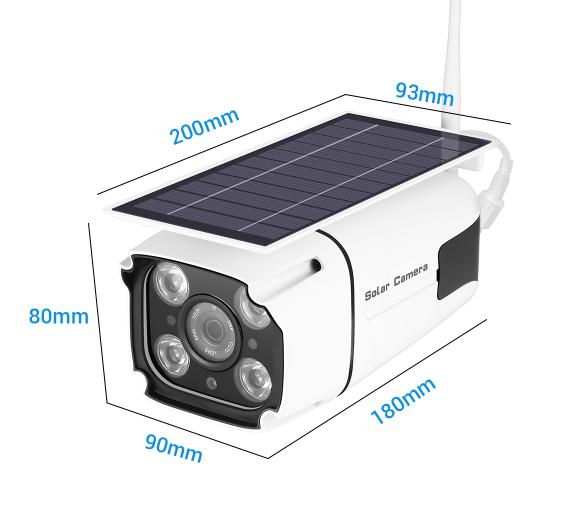

Dimension
Removable 2.2W solar panel,sustainable charge the battery and uninterruptible power supply for camera.
Application
Application scenarios: the door of the house, the door of the yard, the fish pond, the orchard, the breeding farm, the mine, the construction site and all the places without electricity and network.
