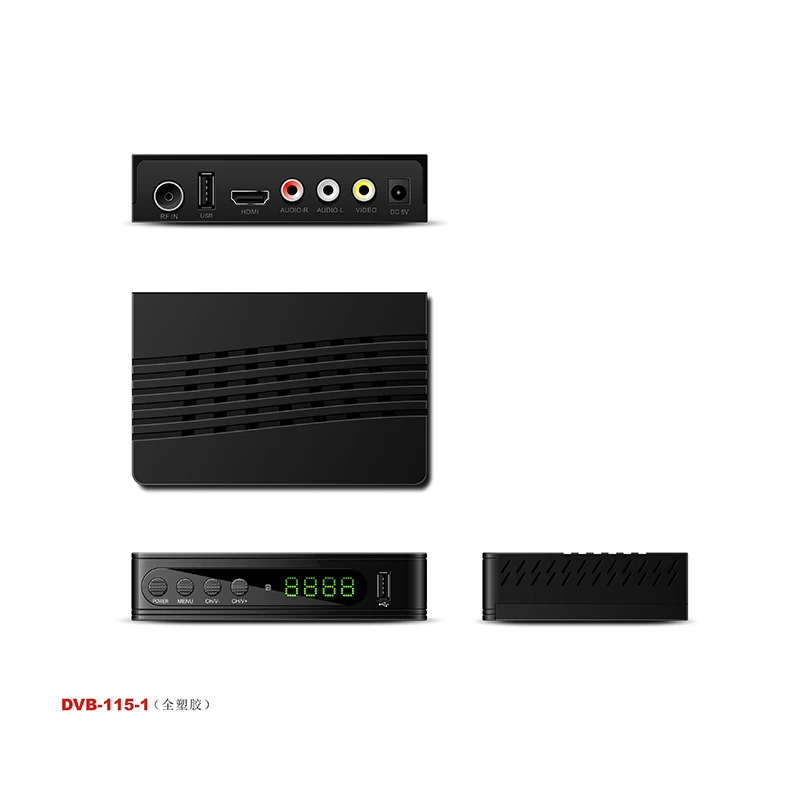

HD 1080p Digital dvb-t2 TV set-top Box Terrestrial Receiver USB TV HDTV

*Fully Compliant with DVB-T2 Standard

*H.265(HEVC) Decoding

*480i/480p/576i/576p/720p/1080i/1080p Supported

*4:3/16:9 & NSTC/PAL/Auto Switchable

*Boot up logo, radio image, watermark supported

*TV Guide/Bouquet Optional

*Auto search at background when STB boots supported

*USB PVR and Time-shift supported

*7-day EPGl, parental lock, channel management, timer, favorite group

*STB upgrade via USB, OTA and serial port supported

*NIT auto detect for channel add/delete, channel name change and LCN change at background available

*Auto/manual scan optional and network search available

*Last channel memory and multi-language supported

*Open to the latter value-added service supported

Facebook Twitter Pinterest LinkedIn 分享

Products Specifications:

1) System

CPU GX3201H, 32-bit CPU 600MHZ UP TO 1000DMIPS
Flash Flash 16MB SPI NOR, Up to 32MB
RAM 128MB DDR3, Up to 256MB
Tuner Maxliner MXL608+LNA


2)Video and Audio

Video Standard H265 video (HEVC/H.265),  BP/MP/HP up to L4.1
H.264 video (ISO/IEC 14496-10), BP/MP/HP up to L4.1
MPEG-4 video (ISO/IEC 14496-2), SP/ASP up to L5
H.263 P3
AVS
AVS plus
MPEG-2 video (ISO/IEC 13818-2), MP@HL
MPEG-1 video (ISO/IEC 11172-2)
Decoding up to 1920×1080p@30fps
Error detection and concealment
Hardware accelerated JPEG/MJPEG decoding
Video Mode 576i, 576p,720p, 1080i, 1080p
Audio Standard MPEG-1 layer I/II ,MP3 decoding
MPEG4 AAC and HE-AAC(AAC Plus) decoding
DD and DD+ Optional


3)Tuner and Demodulator

Type DVB-T&T2
Frequency Range VHF:174~230MHz
UHF:474~858MHz
RF Input Level -80~-20dBm
Band Width 6MHz/7MHz/8MHz
Demodulation DVB-T Mode 64QAM,16QAM,QPSK
DVB-T2 Mode 256QAM,64QAM,16QAM,QPSK
Transmission Mode OFDM
Code Rate DVB-T Mode 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2 Mode 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval DVB-T Mode 1/4,1/8,1/16,1/32
DVB-T2 Mode 1/4,19/256,1/8,19/128,1/16,1/32, 1/128
FFT Size DVB-T Mode 2K,8K
DVB-T2 Mode 1K,2K,4K,8K,16K,32K

4)Power Supply

Input Voltage 12V1A  AC 80-260V  50~60Hz
Operating Power Consumption Max. ＜5W
Standby Power Consumption Max. 1W(with out LED ＜0.5W )
Front Panel
Display 4 Digital 7 Segment LED Display
Indicator Red: Standby ,Green: Run
Buttons Power, CH+, CH-
USB 1x USB2.0


5)Rear Panel

RF Input IEC169-2 Female, 75ohm
Loop Output IEC60169-2 Male 75ohm
IR Extension 1 × Earphone
AV Out 3 x RCA
SCART
S/PDIF 1 x Coaxial
HDMI 1 x HDMI
USB
Ethernet NO
DC Input 1 x Jack


6)Accessories

Battery 2 x 1.5V;AAA
User Manual A5
RCU NEC Protocol
