Product Name:HD 1080P H.265 8CH POE NVR Security System With Humanoid Alarm Outdoor IP Camera
Feature

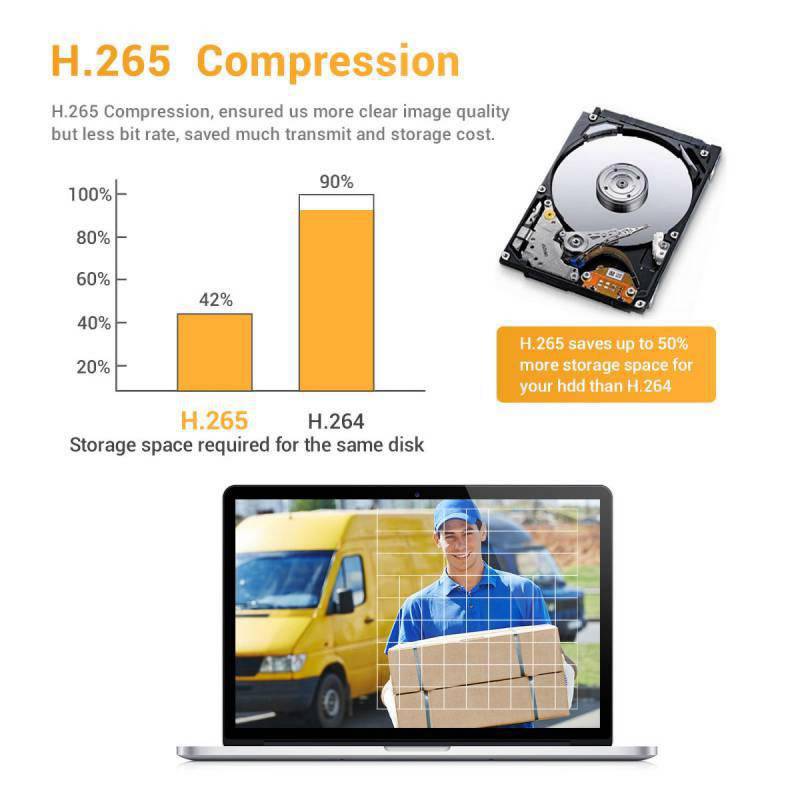

●H.265 Compression, ensured us more clear image quality but less bit rate, saved much transmit and storage cost.H.265 saves up to 50% more storage space for your HDD than H.264.

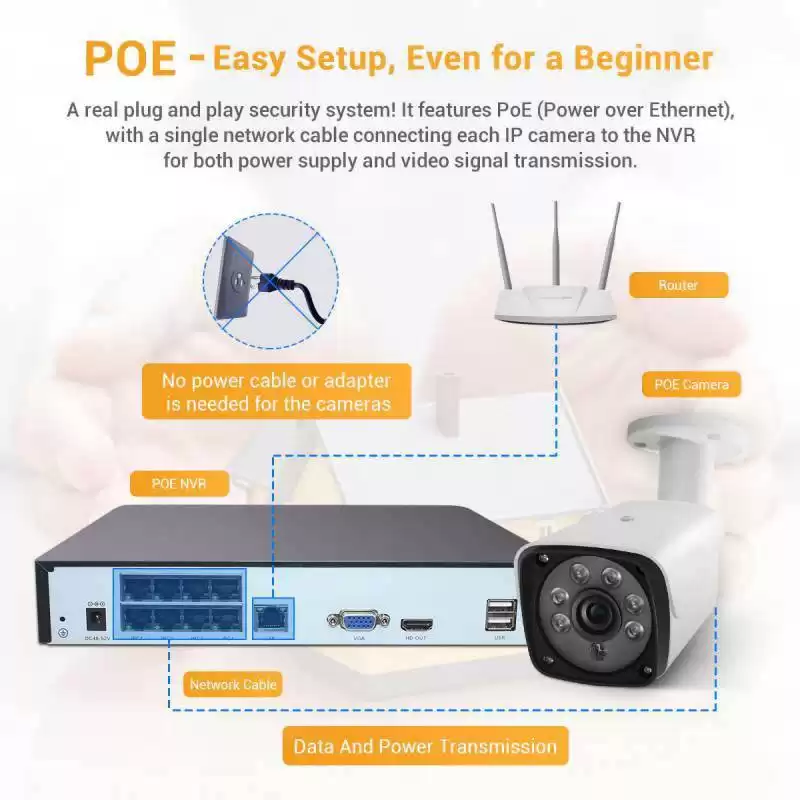

●8CH Humanoid POE, A real plug and play security system! It features POE, with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission.
●Day/Night HD 1080P Resolution.This POE security camera system is able to stream 1080P footage onto tour mobile devices with superior quality.And the camera's smart infrared night vision covers up to 50ft/15m,you're allowed to see everything clearly in the dark.

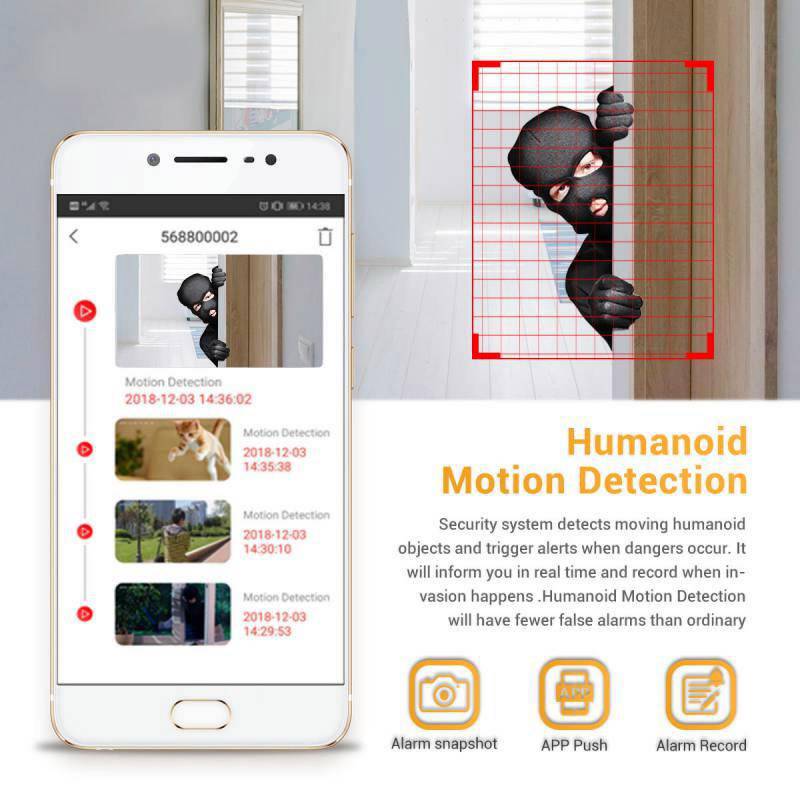

●Humanoid Motion Detection.Security system detects moving humanoid objects and trigger alerts when dangers occur. It will inform you in real time and record when invasion happens.Humanoid Motion Detection will have fewer false alarms than ordinary.
●Video Playback-Recall Events and Moments
The playback feature allows you to know the whole events.
*Replay significant evidence or funny video records.
*1-channel playback.
*Quick search for any event that happened at any time.
*The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours,or minutes to see the events you missed.
●6TB Hard Disk,Build in a SATA port, support max to 6TB 3.5 inch hard disk.
●Local and Remote Access Anytime & Anywhere.
Specification
|
Model
|
ANSDEN YAN-PVR608
|
|
Camera Parameter
|
|
Camera
|
|
Image Sensor
|
1/2.5”CMOS
|
|
Effective Pixels
|
1920*1080(2MP)
|
|
Lens
|
3.6mm
|
|
Angle of View
|
Horizontal: 80°, Vertical: 58°
|
|
Day/Night Mode
|
Auto Switchover
|
|
Min. Illumination
|
0.1Lux/F1.2(Color)；0.01Lux/F1.2(B/W)
|
|
IR Distance
|
15m(50 ft)
|
|
Backlight Compensation
|
Support
|
|
DWDR
|
Support
|
|
Video
|
|
Compression
|
H.265/H.264
|
|
Resolution
|
Main Stream:1920*1080（1080P）,1280*720（720P）
|
|
Sub Stream:800*448(448P),704*576(D1),640*360(360P),352*288（CIF）
|
|
Bit rate
|
64 Kbps~ 12Mbps
|
|
Frame Rate
|
25fps
|
|
Audio
|
|
Interface
|
Not support
|
|
Network
|
|
Interface
|
One 10M/100Mbps RJ45
|
|
Network Protocol
|
HTTP,TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
Browser Supported
|
IE browser
|
|
OS Supported
|
PC: Windows; Smart Phone: iOS, Android
|
|
Onvif
|
Support
|
|
General
|
|
Power Supply
|
DC12V & PoE (IEEE 802.3at)
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-30℃~+55℃(14°F~131°F), 10%~90%
|
|
Ingress Protection
|
IP66
|
|

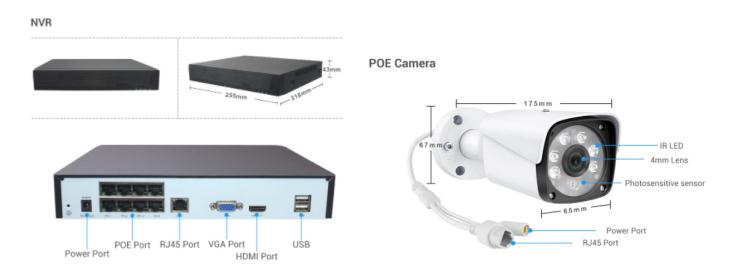

Dimensions
|
175*67*65mm
|
|
Weight
|
0.25KG
|
|
NVR Parameter
|
|
Syetem
|
|
GUI
|
16-Bit menu interface
|
|
Operating System
|
Embedded Linux OS
|
|
A/V Input
|
|
Video Input
|
8 x PoE IP Camera
|
|
Audio Input
|
Not support
|
|
A/V Output
|
|
VGA Output
|
1024*768,1366*768,1280*1024,1920*1080 (1080P)
|
|
HDMI Output
|
1024*768,1366*768,1280*1024,1920*1080 (1080P)
|
|
Audio Output
|
Not support
|
|
Playback Resolution
|
1080P/720P
|
|
Synchronous Playback
|
1 Channel
|
|
HDD
|
|
Interface Type
|
1 SATA Interface
|
|
Maximum Capacity
|
6TB
|
|
External Interface
|
|
USB Connector
|
2 x USB 2.0
|
|
Network Interface
|
One 10M/100M Ethernet RJ45 port, Four Network POE Ports for IP Cameras
|
|
Network
|
|
Network Protocol
|
HTTP,TCP/IP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
Mobile Device
|
iPhone, Android Smartphones
|
|
Remote Software
|
App, PC Client (Windows)
|
|
Onvif
|
Support
|
|
General
|
|
Power Supply
|
Input 110~260V, 52V 1.5A
|
|
Consumption
|
<20W without PoE Cameras
|
|
Working Environment
|
-10°C~+45°C (14°F~113°F),10%~90%
|
|
Dimension
|
255*218*43mm
|
|
Weight
|
0.75kg
|
|
Package information
|
|
Dimension
|
345*275*285mm
|
|
Weight
|
6.45kg
|
|
Packing List
|

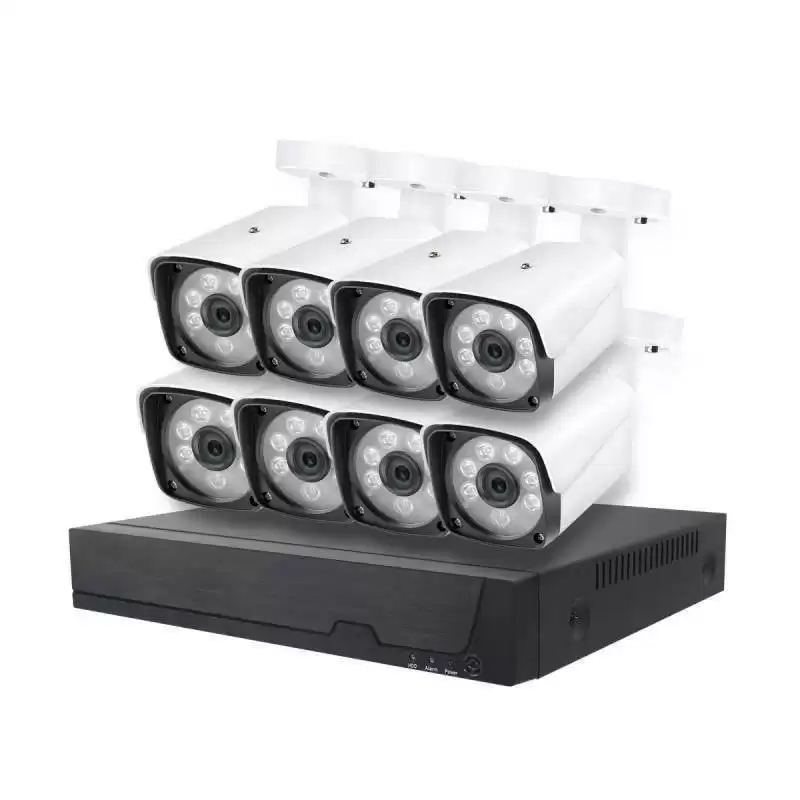

8CH POE NVR*1,POE IP Camera*8,NVR Power Adapter*1,Guide*1,
15m Network Cable*8,USB Mouse*1,Screws Package*8,Waterproof Hat*8
|
Dimension
HD 1080P H.265 Compression, ensured us more clear image quality but less bit rate, saved much transmit and storage cost.
Application
Video Playback-Recall Events and Moments,Local and Remote Access Anytime & Anywhere.
