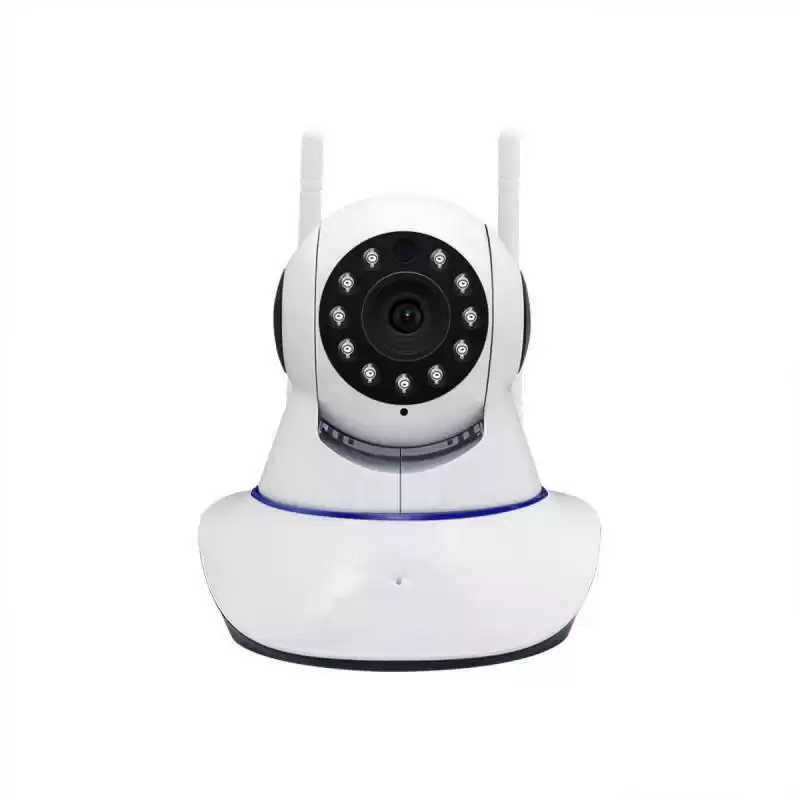

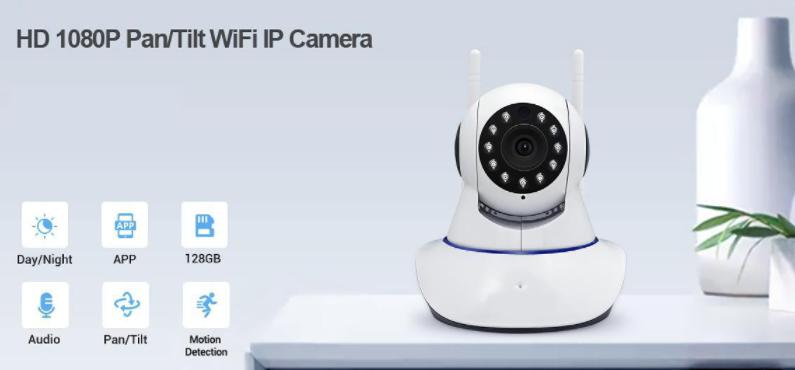

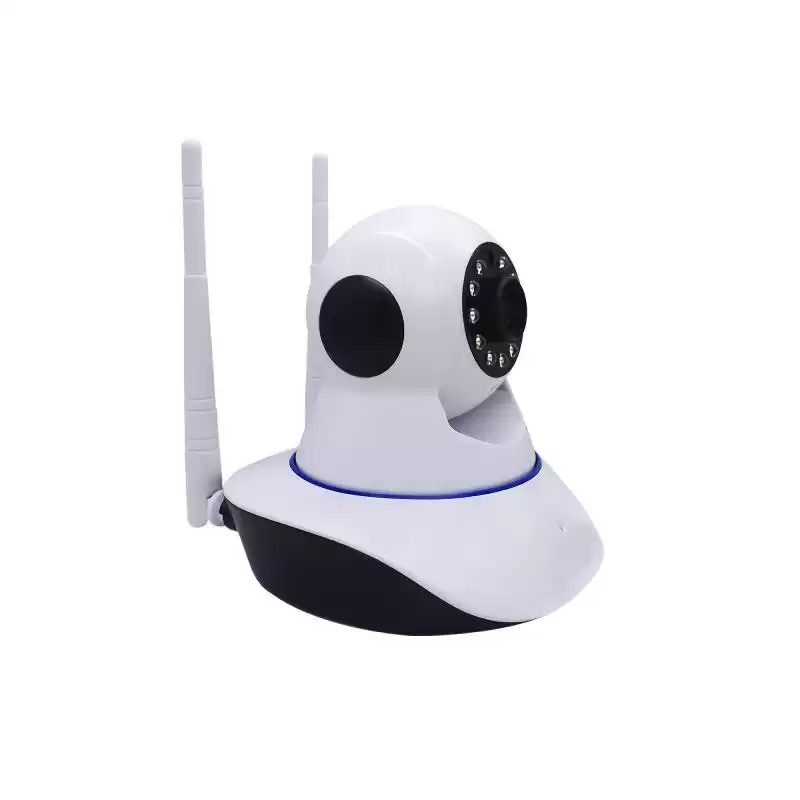

Product Name:HD 1080P WIFI IP Camera Indoor Support 128 GB TF Card PT Night Vision Onvif
Feature
●HD1080P high-definition image quality, resolution up to 2 megapixels, 1920 * 1080, 3.6mm megapixel lens.
●Pan / TiIt monitor Pan355℃ + Tilt120℃, manual sliding screen can realize remote control and real-time monitoring of camera rotation.
●Two-way call, built-in microphone and high-quality audio speaker, two kinds of online calls can be made between the camera and the mobile phone.
●Infrared monitoring and motion detection, when a moving object is detected, an email alert will be triggered. The design of 11 IR Leds can capture ultra-clear night images with a maximum infrared range of 8m.
●Support multi-platform Android / iOS Mobile tablets and computers.
●Application scenarios: home monitoring, store monitoring, company executives, baby care.
Specification
|
Model
|
ANSDEN YAC-G01
|
|
Camera Parameter
|
|
System
|
|
OS
|
Embedded Linux OS
|
|
Processor
|
GK7102C-A
|
|
Sensor
|
1/4 2MP Progressive CMOS sensor
|
|
Video
|
|
Compression Format
|
H.264
|
|
Video coding
|
Main stream:1920*1080@15fps;Sub stream: 640*352@25fps,320*176@25fps
|
|
Picture Adjustment
|
Contrast, Brightness, Saturation ,Flip and Mirror are adjustable.
|
|
Minimum illumination
|
0.8Lux/F1.4（colourful mode ),0.4Lux/F1.4（B&W mode）
|
|
Bit Rate
|
CBR/VBR, bit rate range：32-6144kbps
|
|
OSD
|
Support OSD
|
|
Lens
|

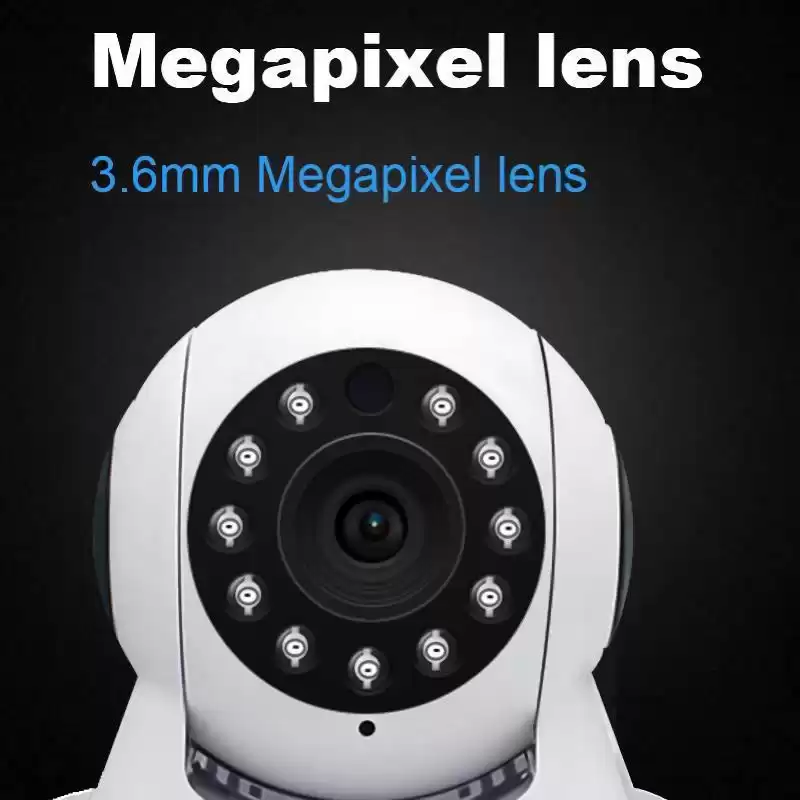

3.6mm
|
|
Night Vision
|
|
Night vision
|
11pcs IR LED,8m IR distance
|
|
IR control
|
IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
|
|
IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
|
|
Audio
|
|
Compression format
|
G.711A
|
|
Input
|
Built in microphone
|
|
Output
|
Built in speaker
|
|
P/T Function
|
|
P/T
|
Pan:355°,Tilt:120°
|
|
Preset Position
|
Support up to 8 preset positions
|
|
Network
|
|
Network interface
|
10Base-T/100Base-TX Ethernet interface
|
|
Network Protocol
|
TCP/IP,HTTP,SMTP,FTP,DHCP,DDNS,NTP,UPnP,RTSP,etc.
|
|
Online visitor
|
Support 5 online visitors simultaneously
|
|
IP address
|
Dynamic IP and static IP address
|
|
WIFI
|

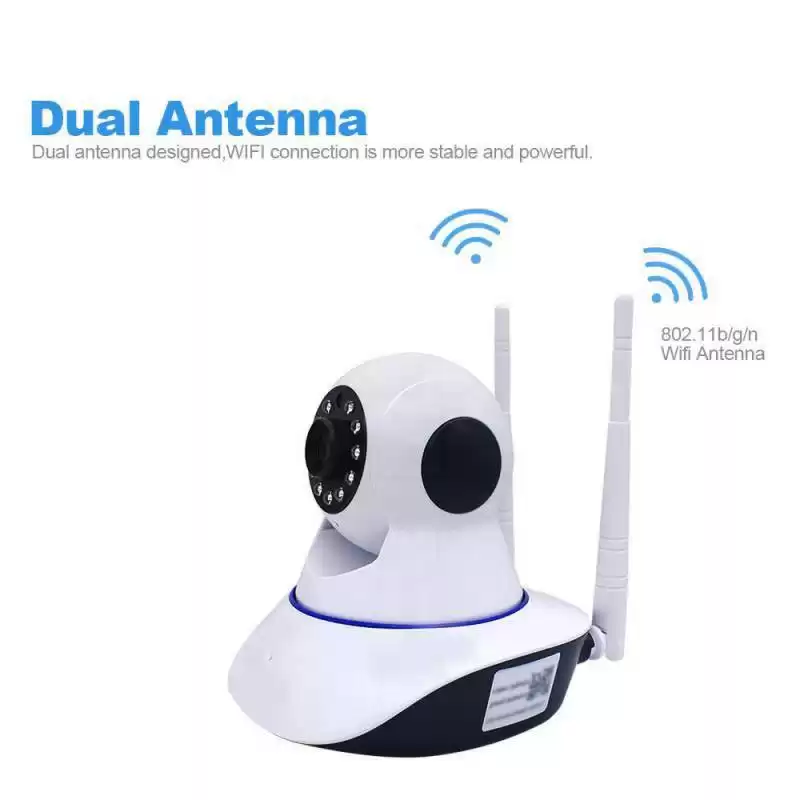

WIFI 802.11 b/g/n
|
|
Onvif
|
Support Onvif protocol
|
|
Alarm
|
|
Motion Detection
|
Support 4 independent detection areas (sensitivity 1-100 )
|
|
Audible alarm
|
Audible alarm(Sensitivity 1-100 )
|
|
Alarm linkage
|
Sending picture to Email;Uploading picture to FTP;Saving picture or video to TF card
|
|
Others
|
|
Storage
|

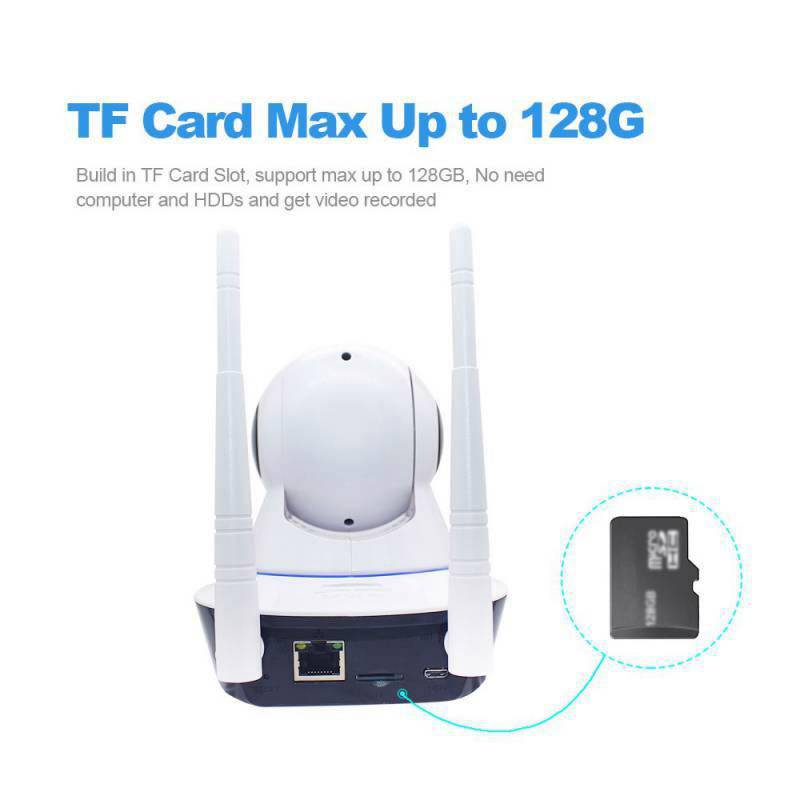

Support max to 128GB TF Card
|
|
Application environment
|
Indoor
|
|
Rated Voltage
|
DC5±0.3V
|
|
Temperature
|
-10~50 °C
|
|
Humidity
|
10 ~ 95%RH
|
|
Power consumption
|
3.5W
|
|
Package size
|
195*155*120mm (L*W*H)
|
|
Weight
|
Gross Weight ：0.5kg（Note: in kind prevail）
|
|
Accessories
|
IP camera*1,Power adapter*1, USB cable*1, Manual*1, Mounting bracket*1, screws*1.
|
|
System Requirement
|
|
System configuration
|
Windows XP/7/8/10;IOS and Android
|

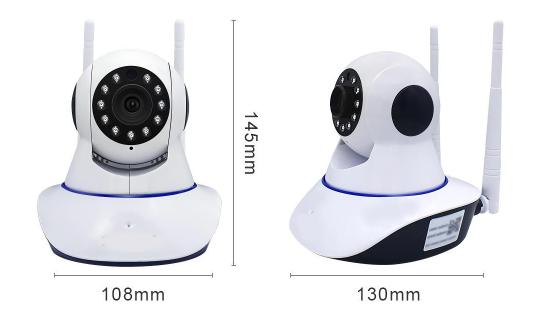

Dimension
Infrared monitoring and motion detection. The design of 11 IR Leds can capture ultra-clear night images with a maximum infrared range of 8m.
Application
Application scenarios: home monitoring, store monitoring, company executives, baby care.
