Product Name:HD 3MP Cloud Storage WIFI IP Camera HD 3MP Cloud Storage WIFI IP Camera PTZ Night Vision Motion Detection
Feature
● High-definition, resolution up to 3.0 megapixels 2560 * 1440, 3.6mm megapixel lens.

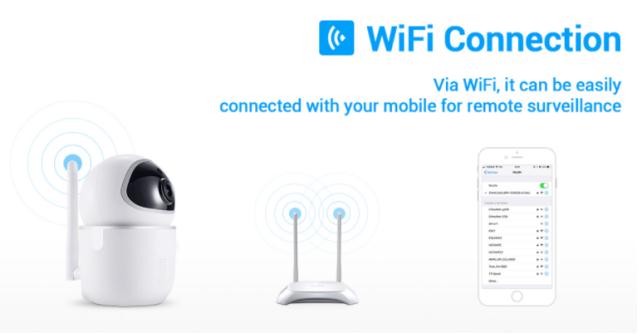

● WiFi connection, connect with mobile phone for remote monitoring.
● Pan 355° tilt 60° monitoring, manual sliding screen can realize remote control and real-time monitoring of camera rotation.
● Built-in microphone and high-quality audio speakers, two kinds of online calls can be made between the camera and the phone.
● 8 infrared LED design can capture ultra-clear night images with a maximum infrared range of 10m.
● When a person is detected, the camera will automatically track the body. When a moving object is detected, it will trigger an alarm and push notifications to your phone.
● The equipment is automatically turned on or off (up to 3 groups of plans can be set)
● Built-in TF card slot, after purchasing the cloud server, the maximum support 128GB video can also be saved in the cloud.
● Multi-platform tablet and Android/iOS.
Specification
|
Model
|
ANSDEN YAC-QF208
|
|
System
|
|
System security
|
Account, password authority management
|
|
Len
|
|
CMOS
|
1/3" CMOS
|
|
Lens/viewing angle
|
3.6mm angel:75°
|
|
Minimum illumination
|
Color: 0. 1Lux, B/W: 0.01Lux
|
|
IR
|
|
IR distance
|
8pcs IR Led, IR distance 10m
|
|
IR Control
|
Auto
|
|
Video
|
|
Video Compression
|
H.264
|
|
Resolution
|
3MP (2560*1440)
|
|
Frame rate
|
25fps
|
|
Audio
|
|
Compression
|
G.711A
|
|
Input
|
Built in microphone
|
|
Output
|
Built in speaker
|
|
P/T
|
|
P/T function
|
Pan:355°,Tilt:60°
|
|
Network
|
|
Network Protocol
|
TCP/IP,HTTP,SMTP,DNS,DHCP,P2P,RTSP
|
|
WIFI
|
WIFI 802.11 b/g/n（2.4G WIFI)
|
|
IP address
|
Dynamic IP
|
|
Multi-platform
|
|
Online visitor
|
Support 5 online visitors simultaneously
|
|
Mobile View
|
Software for iPhone, Android(iOS4.3、Android OS 2.3 above)
|
|
PC View
|
PC Client
|
|
Alarm
|
|
Alarm detection
|
Support motion detection/auto tracking
|
|
Alarm action
|
Support email alarm and APP push
|
|
Storage
|
|
Local storage
|
Support up to 128GB memory card
|
|
Cloud storage
|
Support(Need to buy)
|
|
Other
|
|
Rated voltage
|
DC5±0.3V
|
|
Consumption
|
Rated power：3.5W(IR opening )/maximum power：7W(P/T working )
|
|
Work environment
|
-10~50 °C 10%~90%
|
|
Product weight
|
164g
|
|
Gross weight
|
340g
|
|

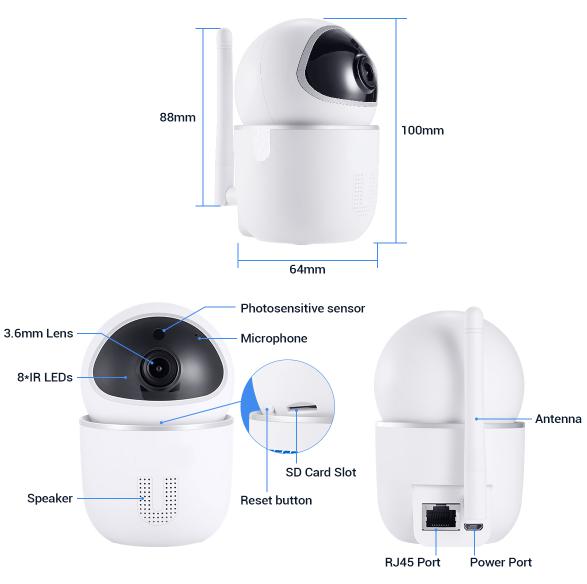

Product size
|
100*88*64mm
|
|
Package size
|
150*140*100mm
|
|
Accessories
|

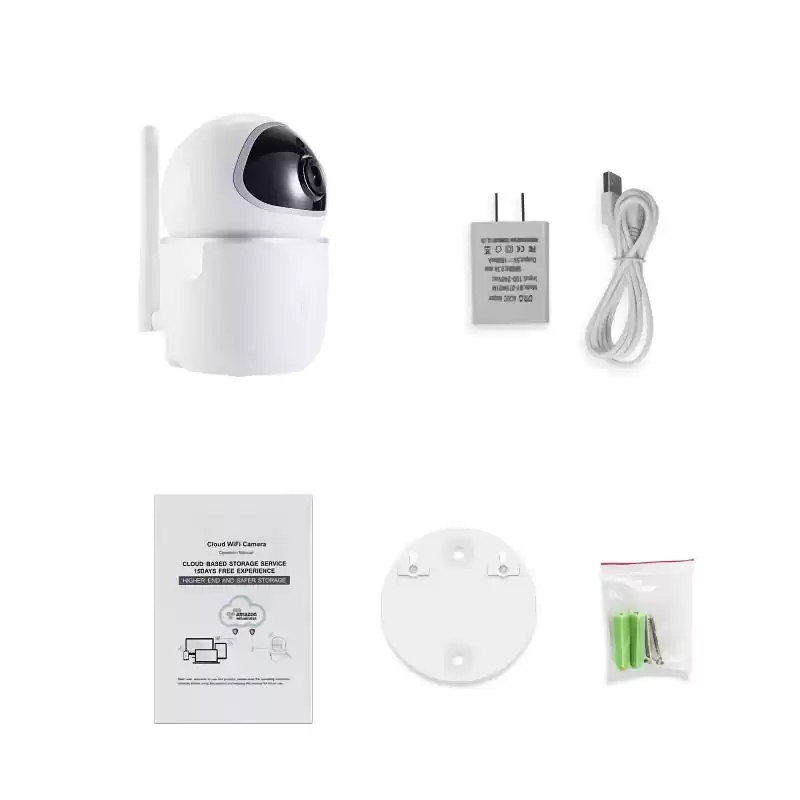

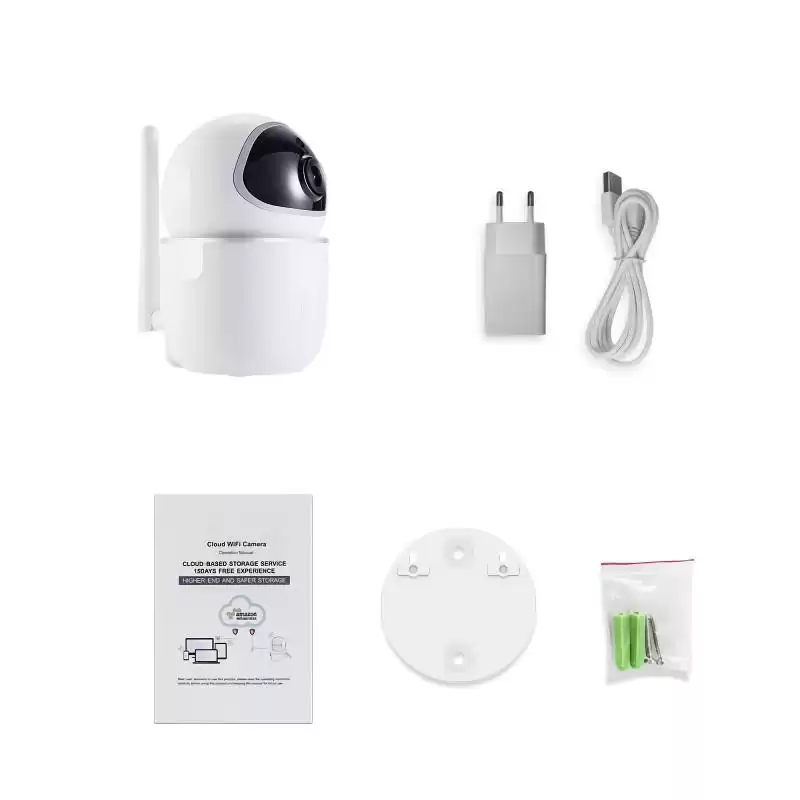

IP Camera * 1, Charger * 1, USB Cable * 1, User's manual * 1, Screw Package * 1, mounting bracket * 1
|
Dimension
High-definition, resolution up to 3.0 megapixels 2560 * 1440, 3.6mm megapixel lens.
Application
WiFi connection, connect with mobile phone for remote monitoring.
