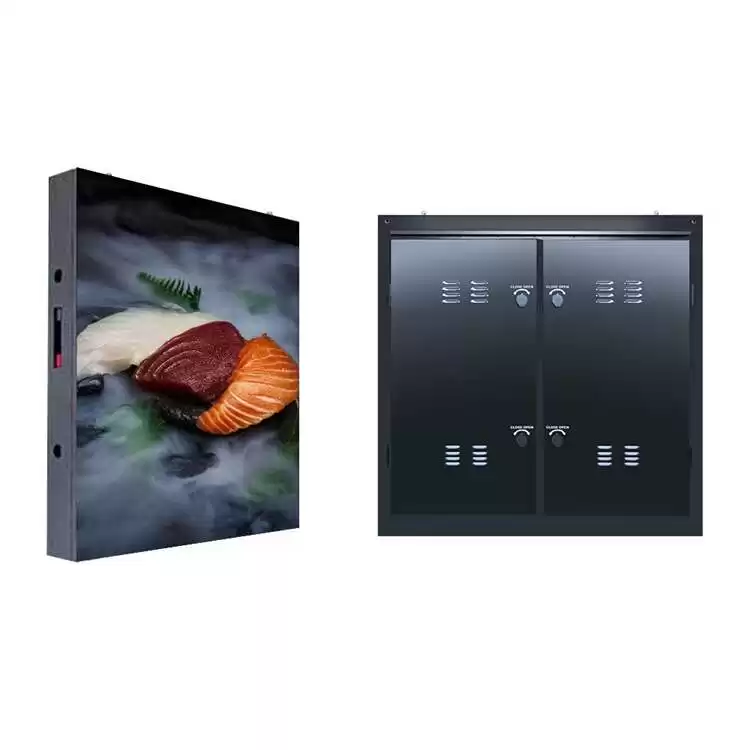

HD Large Advertising LED Outdoor Naked Eye 3D Display



1 Aluminum module chassis and panel frame accelerates heat dissipation;



2 Heat sink design for module chassis and power supply unit improves heat dissipation considerably;



3 White color frame can reflect the sunlight to reduce the heat generated in the panel;



4 Two heat dissipation hole at each flank of PSU can maintain the air pressure balance in the PSU,reducing water liquefied from steaminside when ambient temperature drops.



5 Command Center Evaluation System is abbreviate for Common Cathode Energy Saving technology





Unleash the power of 3D without the need for special glasses or additional accessories.

Our naked-eye 3D technology creates a sense of depth and realism, making every detail pop off the screen.

It's like bringing your products and messages to life right before your audience's eyes.



Built to withstand the harshest outdoor conditions, our LED display is weatherproof and durable. Whether it's rain, shine,

or extreme temperatures, you can rely on our display to deliver a flawless performance, day in and day out. Its superior brightness

ensures maximum visibility even in broad daylight, ensuring your messages are seen by everyone, everywhere.



Our LED display offers unparalleled flexibility and versatility. With customizable sizes and seamless modular design,

you have the power to create an advertising masterpiece that suits your unique needs. From advertising billboards to large-scale event displays, the possibilities are limitless.



Experience the future of advertising with our HD Large Advertising LED Outdoor Naked Eye 3D Display. Elevate your brand,

engage your audience, and make an undeniable impact that sets you apart from the competition. Get ready to captivate, inspire, and convert customers like never before

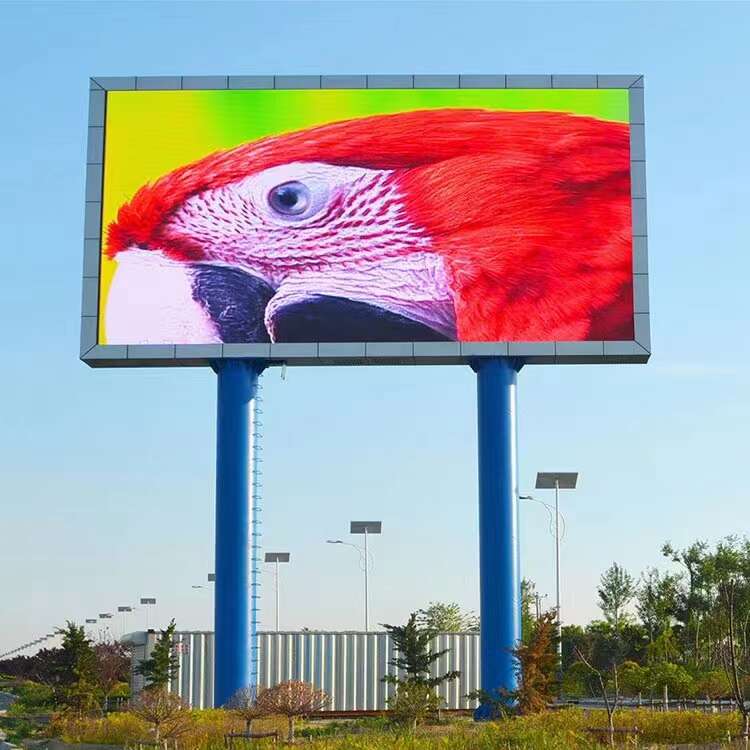

Digital Wall Billboard Signage Advertising

1 Classic outdoor advertising media fixed with LED display

2 High stability, excellent display effect

3 Professional silent heat dissipation design

4 Anti - ultraviolet, anti - deformation module kit, flat screen body does not deformation

5 Patented mask design, unique ink treatment, ultra high contrast

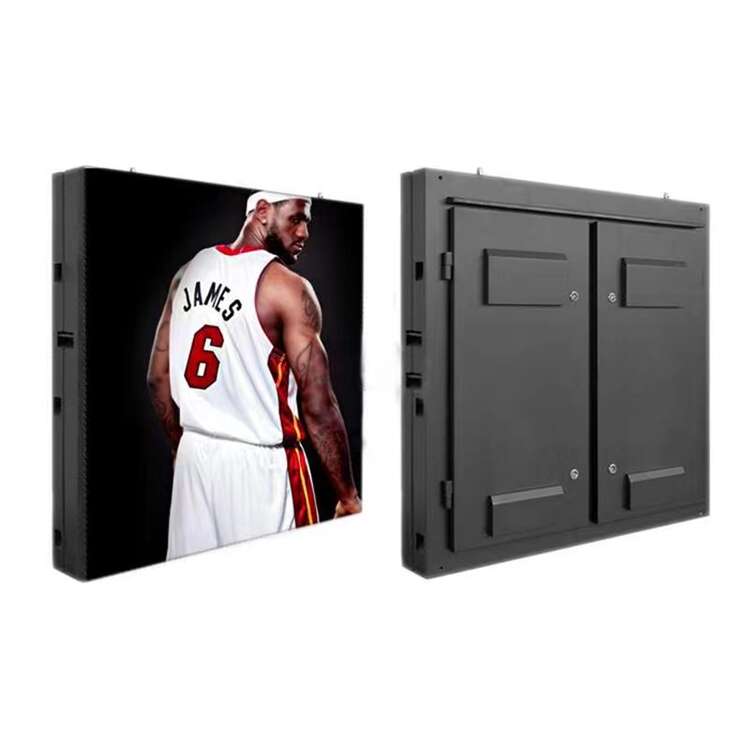

3D Video Wall Screen Outdoor 3D Led Display

Integrated design of architectural appearance

Adopts the custom bar small dot matrix module, with the arc box body, can be customized according to the site wall structure of arbitrary Angle arc, to achieve a perfect seamless transition design.

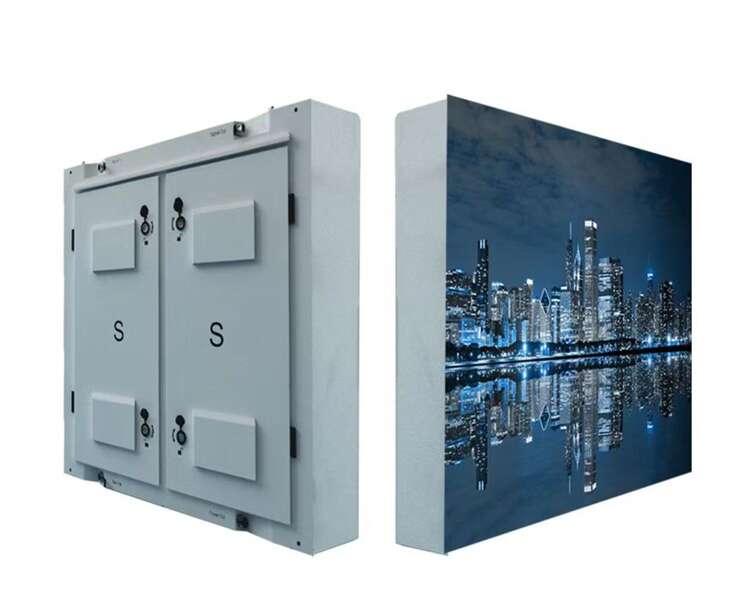

Outdoor Led Display Screen

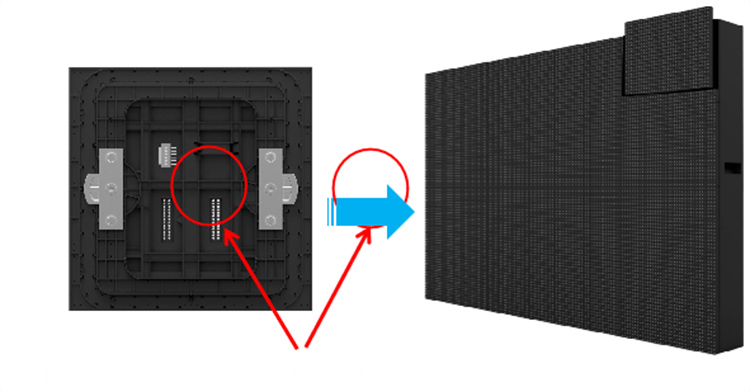

Maintenance before support, frontal maintenance is more convenient

Maintenance after support, routine maintenance after screen



                                       Quick lock device (pre-maintenance)

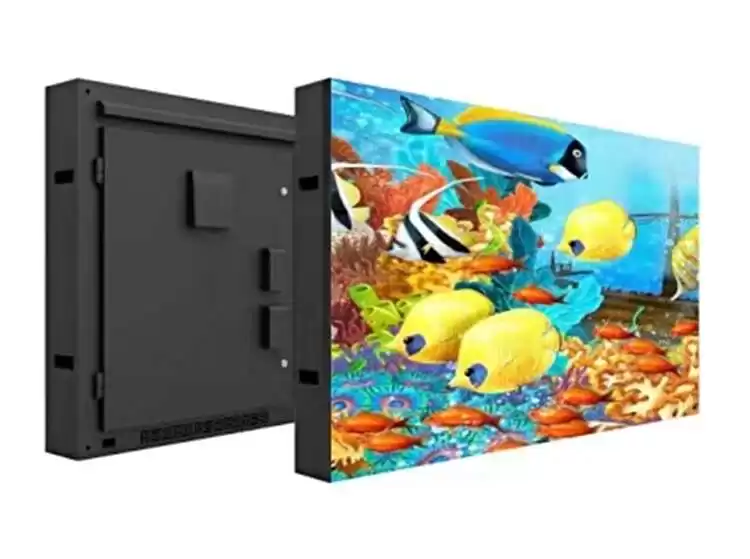

High Definition LED video wall advertising outdoor LED display

1 The brightness can be automatically adjusted according to the ambient brightness to avoid excessive brightness waste and reduce power consumption;

2 Using ultra-high brightness LED, working set in low current driving state, the power consumption of single lamp is far lower than traditional products;

3 PWM waveform drive LED, does not affect the chroma of the light emitting tube, low power consumption;







Product Specifications
Model Name
3D-P4
3D-P5
3D-P6.67
3D-P8
3D-P10
Pixel Pitch
4mm
5mm
6mm
8mm
10 mm
Pixel Density/㎡
62,500 dots
40,000dots
22,500 dots
15625 dots
10,000 dots
LED Configuration
SMD1921
SMD2727
SMD3535
SMD3535
SMD3535
Module Size
320mm*160mm
320mm*160mm
320mm*160mm
320mm*160mm
320mm*160mm
Module Resolution
64* 32 dots
64 * 32 dots
48 * 24 dots
40 * 20 dots
32*16 dots
Panel Dimension
640*640*150mm
960*960*150mm
960*960*150mm
960*960*150mm
960*960*150mm
Panel Resolution
160* 160 dots
192 * 192 dots
144* 144dots
120 *120 dots
96 *96 dots
Panel Weight
10.5 Kg
35 Kg
35 Kg
35Kg
35Kg
Driving Mode
1/10
1/8
1/6
1/5
1/4
Refresh Rate
1920-3840Hz
1920-3840Hz
1920-3840Hz
1920-3840Hz
1920-3840Hz
Brightness
≥ 5000 cd/㎡
≥ 5500 cd/㎡
≥ 6000 cd/㎡
≥6000 cd/㎡
≥6000-9000 cd/㎡
color processing bits
14-16bits
Cabinet raw material
Steel
IP rating
IP65
Service
Front/back
Life
75000-100000 hours


Classical cases:

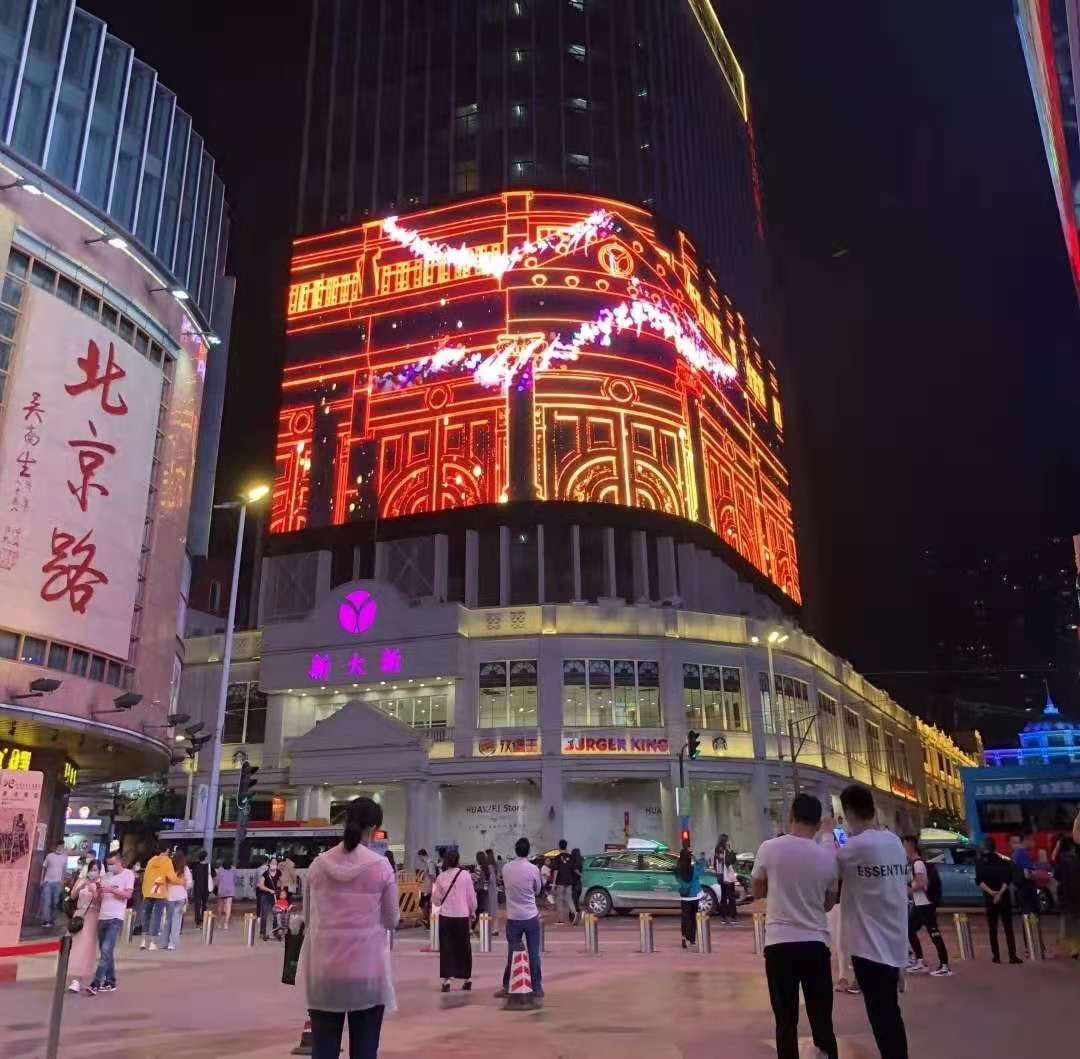

  • outdoor LED display for large shopping malls
  • Digital Wall Billboard Signage Advertising
  • P4 P5 Outdoor Led Display Screen



FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.

Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.

Q3: Can it play HD video?
A3: Yes, we can.

Q4:Can I have a sample order for your company products?
A4: Yes, we welcome sample order to test and check quality. one set sample is acceptable.

Q5: What about the lead time?
A5: Sample order needs 10 days ,20 days for order quantity more than 100 units.

Q6: How do you ship the goods and how long does it take to arrive?
A6:We usually ship by DHL, UPS, FedEx or TNT for sample, It usually takes 3-5 days to arrive. Airline and sea shipping also optional for the qty order.

Q7: Is it OK to print my logo on product?
A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q8: How to deal with the faulty?
A8: 1.Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
      2. we will send the extra parts along with the goods for you About the defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation

Q9: Do you offer guarantee for the products?
A9: Yes, we offer 2-5 years warranty to our products.
