HD Led Display Full Color Magnetic Led Module Rental Events Staged Led Screen
P2.6 P2.9 P3.91 P4.81 indoor outdoor stage background led display
1.Adopt Die-casting aluminum materials ,ultra thin , light weight ,only use one hand can lift, easy to install.
2.Use quick lock to fixed each panel ,makes connection easy and seamless.
3.The product support 2K ,4K ,8K video and image .

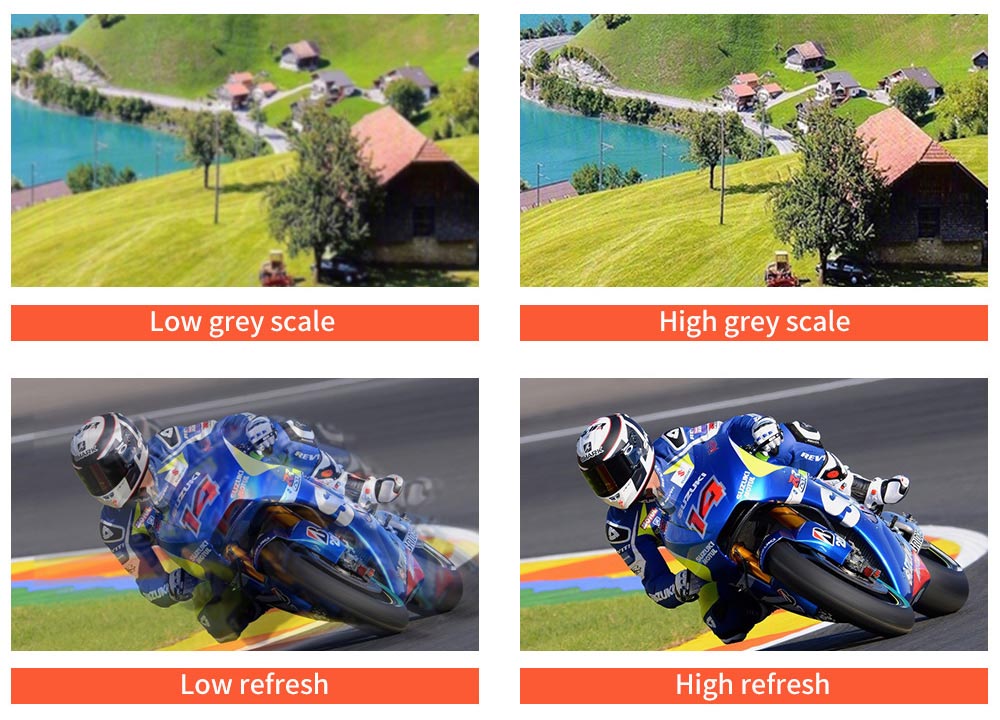

4.High refresh rate , clear effect, can be used for leasing projects and fixed installation projects.

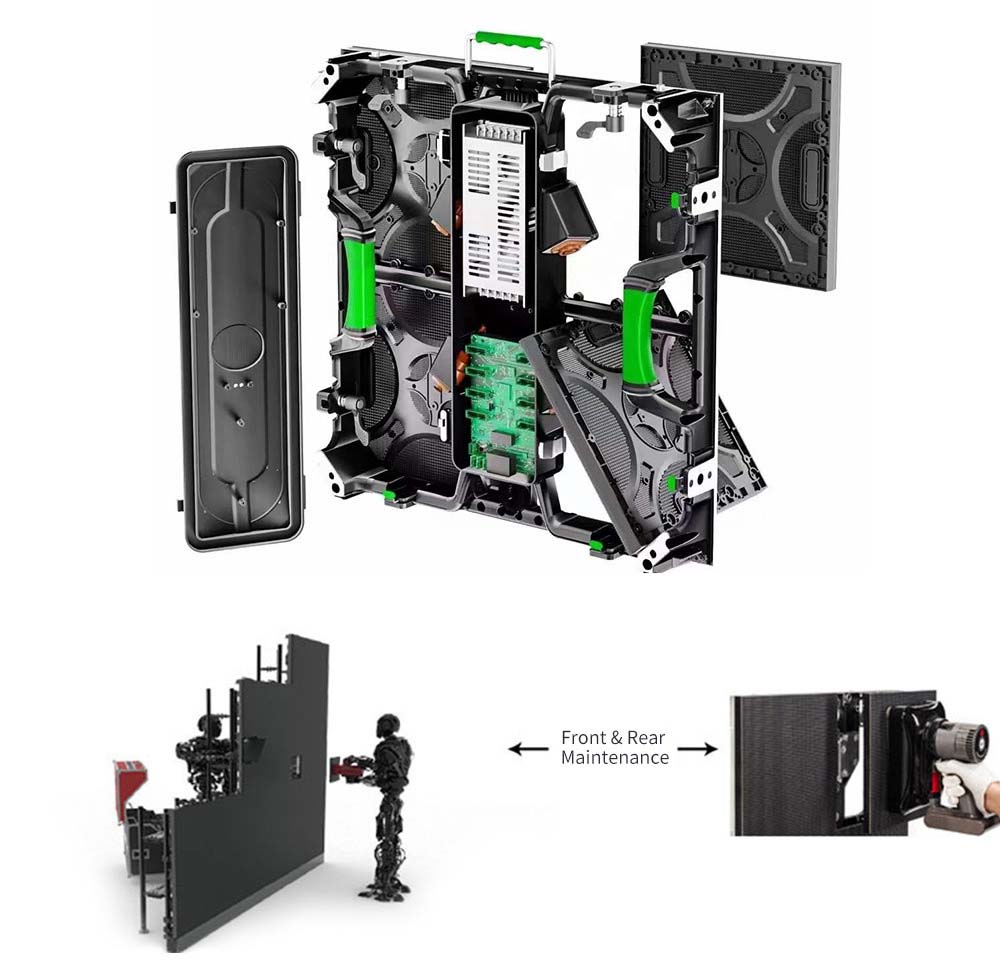

2.Easy Maintenance

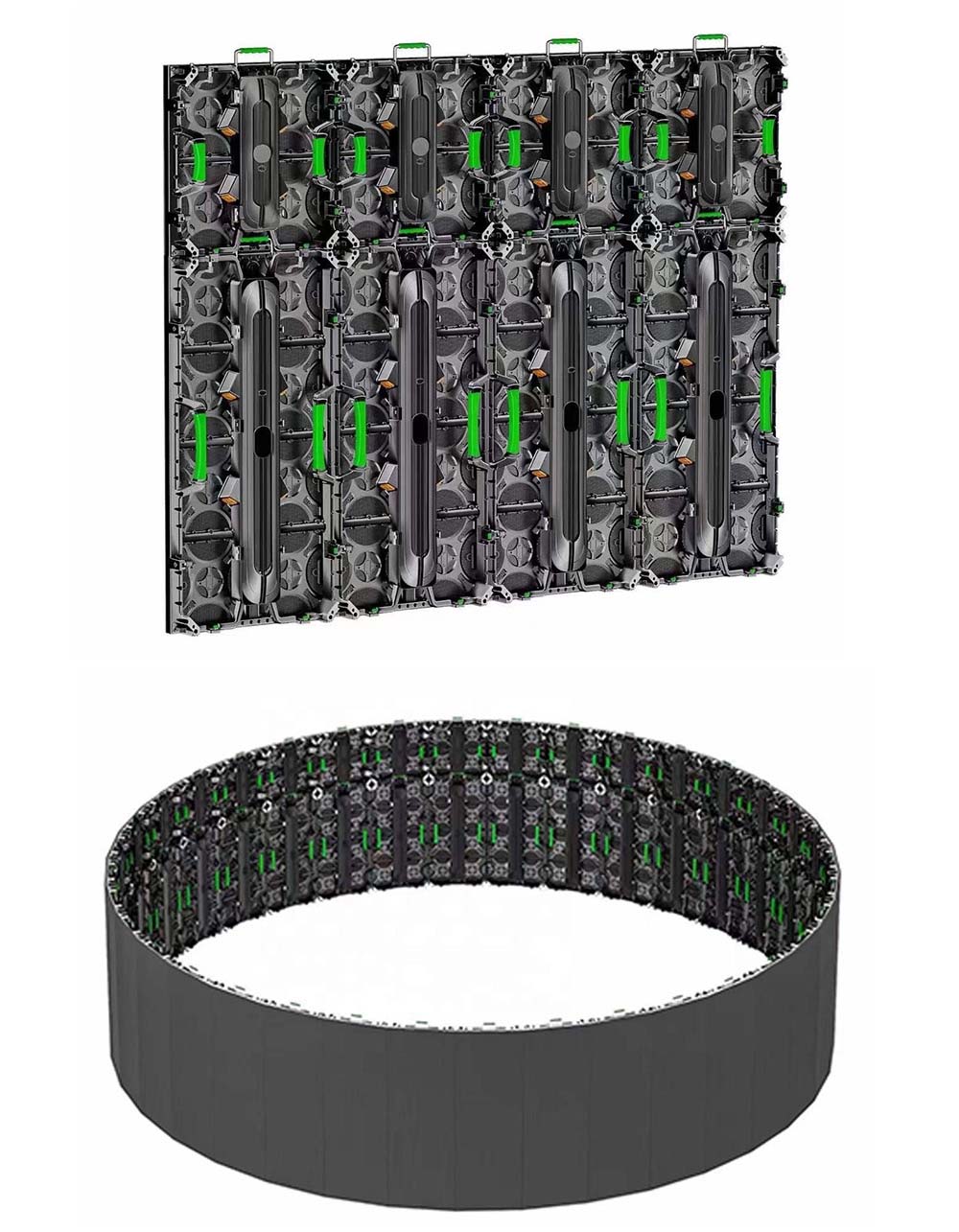

3.LED Arc Lock Design
4.Perfect Led Display Performance
Specifications
|
Product Name |
P3.91 |
|
|
indoor use |
outdoor use |
|
|
Unit Module |
||
|
Model Number |
VG-P3.91- 16S-In |
VG-P3.91- 16S-Out |
|
Module Size |
250mm*250mm |
250mm*250mm |
|
Pixel Pitch |
3.91mm |
3.91mm |
|
Pixels Density |
65536pixel/m2 |
65536pixel/m2 |
|
Pixel Configuration |
1R1G1B |
1R1G1B |
|
Package Mode |
SMD2121 |
SMD1921 |
|
Pixel Resolution |
64dots(W)*64dots (H) |
64dots(W)*64dots (H) |
|
Max Power |
30W |
35W |
|
Weight |
0.5kg |
0.65kg |
|
Drive Type |
Constant drive |
Constant drive |
|
Brightness of White Balance |
≥1000cd/m2 |
≥4500-5000cd/m2 |
|
Cabinet |
||
|
Dimension |
500mm*500mm |
500mm*500mm |
|
Monomer Module Number |
4pcs |
4pcs |
|
Power Supply |
5V/40A* 1pcs |
5V/40A* 1pcs |
|
Pixel per Cabinet |
128* 128 |
128* 128 |
|
Best Viewing Distance |
5M～20M |
5M～20M |
|
Best Viewing Angle |
160°(W) 120°(H) |
160°(W) 120°(H) |
|
Temperature |
storage:-35℃~+85℃ .working:- 20℃~+50℃ |
storage:-35℃~+85℃ .working:- 20℃~+50℃ |
|
Relative Humidity |
10%-95% |
10%-95% |
|
Thickness |
65mm |
65mm |
