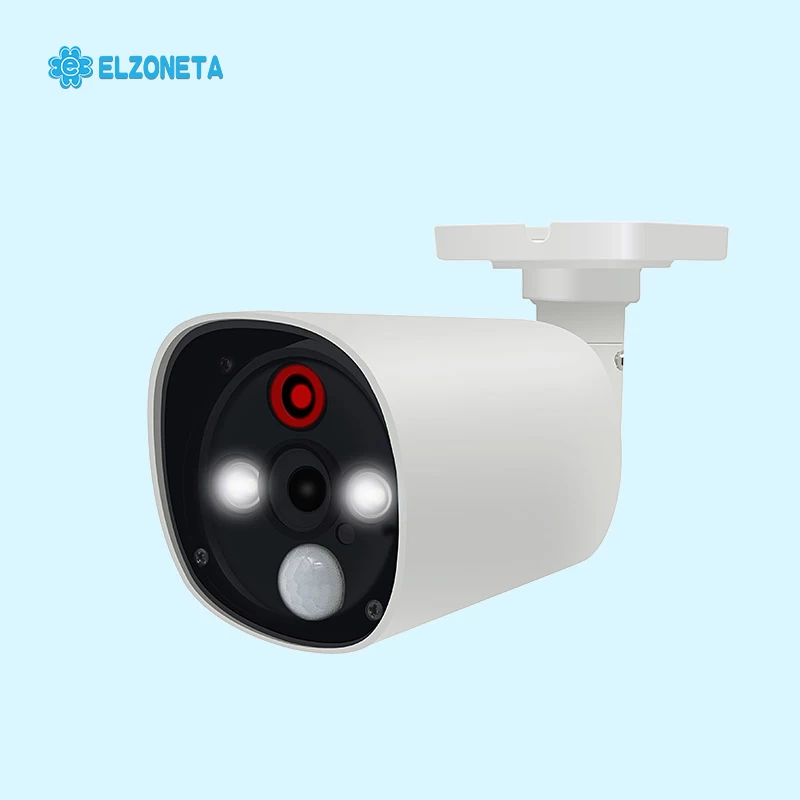

EC-G13 IP Bullet Camera With PIR Sensor
Features:
1.) Resolution: 2.0/3.0/4.0/5.0megapixel
2.) Alarm Type: PIR(Passive Infrared Detector)
3.) Alarm DSP: designed by Elzoneta
4.) White Leds: 2pcs white array leds(new)
5.) IR Leds: 1pcs IR array leds(new)
6.) Leds range: up to 30meter
7.) Lens: 3.6mm HD fixed lens
8.) Dual stream
9.) DC12&POE
10.) H.264/H.265 video encoding
11.) Support ONVIF protocol
12.) Plug and play tech(P2P)
13.) Offer CMS and Mobile APP
14.) 3-axis adjustment
15.) Product Guarantee for 2 years
Specifications:
|
Camera
|
|
Model No.
|
EC-G13X
|
EC-G13U
|
EC-G13T
|
EC-G13S
|
|
Sensor
|
5.0MP
Cmos Sensor
|
4.0MP
Cmos Sensor
|
3.0MP
Cmos Sensor
|
2.0MP
Cmos Sensor
|
|
Effective
Pixels (HxV)
|
2560(H)*1960(V)
|
2592(H)*1520(V)
|
2048(H)*1536(V)
|
1920(H)*1080(V)
|
|
Signal
System
|
PAL /
NTSC
|
|
Mini
Illumination
|
0.01lux(IR
off)
0.00lux(IR
on)
|
0.01lux(IR
off)
0.00lux(IR
on)
|
0.02lux(IR
off)
0.00lux(IR
on)
|
0.02lux(IR
off)
0.00lux(IR
on)
|
|
Lens
|
4.0mm,
6mm HD fixed lens optional
|
|
Angle
of View: 83°(4.0mm), 55°(6mm)
|
|
Lens
Mount
|
M12
|
|
Day
& Night
|
IR
cut filter with auto switch
|
|
DNR
|
3D
DNR
|
|
Wide
Dynamic Range
|
120db
|
|
Alarm Function
|
|
Alarm
type
|
Passive
Infrared Detector
|
|
PIR
distance
|
5-8 Meter
range
|
|
Alarm
Control
|
PIR IC mainboard
|
|
Leds
|
2pcs
white array leds
|
|
1pcs IR
array leds
|
|
leds
Range
|
Up to 30meter
|
|
Siren
function
|
DC12V
output Siren is optional
|
|
Interface
|
1ch RJ45/1ch
power/1ch Alarm
|
|
Network
|
|
LAN
|
RJ45
10M/100M adaptive ethernet
|
|
Dual
stream
|
Support
|
|
Access
protocol
|
ONVIF/CGI/GB28181
|
|
Mobile
APP
|
IOS/Android
|
|
Support
protocol
|
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
|
|
Mobile
App
|
IOS/Android
|
|
ROL Codec
|
Support
|
|
Corridor
Type
|
Support
|
|
Regional
Block
|
Support 3
regional block
|
|
Intelligent
functions
|
Support
face detection, Perimeter intrusion detection, Objects left&missing
detection, Crossing the fence, Retrograde motion detection, Wandering detection,
Desity detection intelligent functions
|
|
General
|
|
Operating
Condition
|
-20
°C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power
Supply
|
12
VDC±15%
|
|
Power
Consumption
|
Max. 4W
|
|
IP Rate
|
IP66
|
|
Weight
|
0.64 kg
|
|
Dimension
|
242(L)*82(W)*75(H)mm
|
