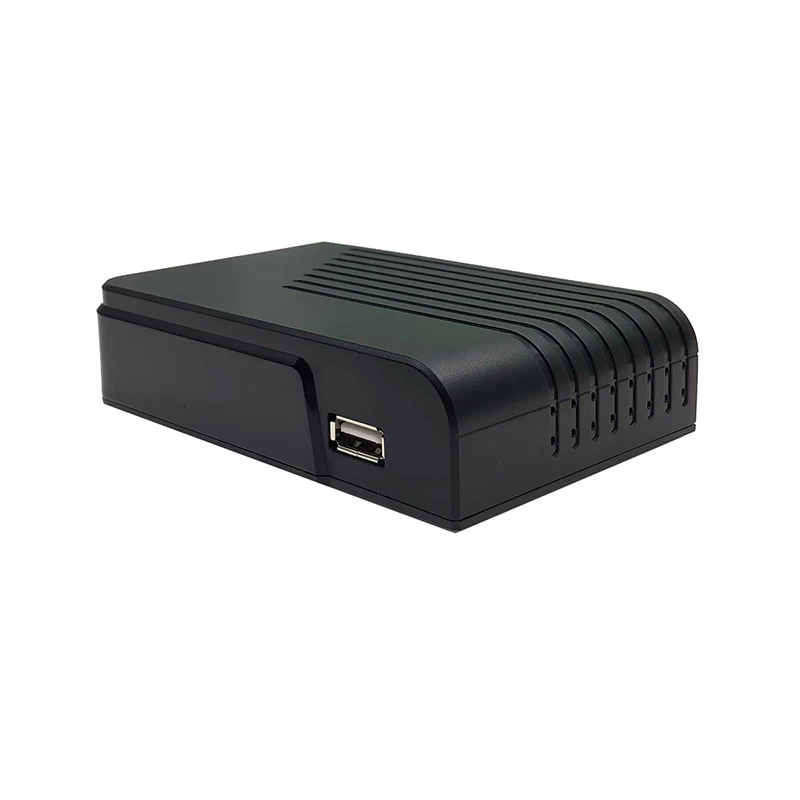

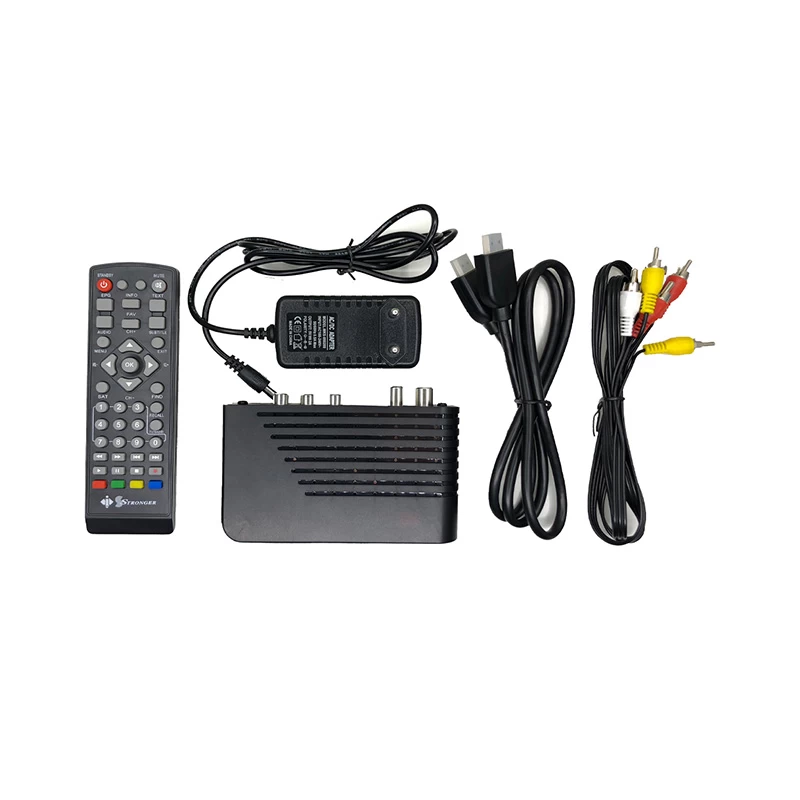

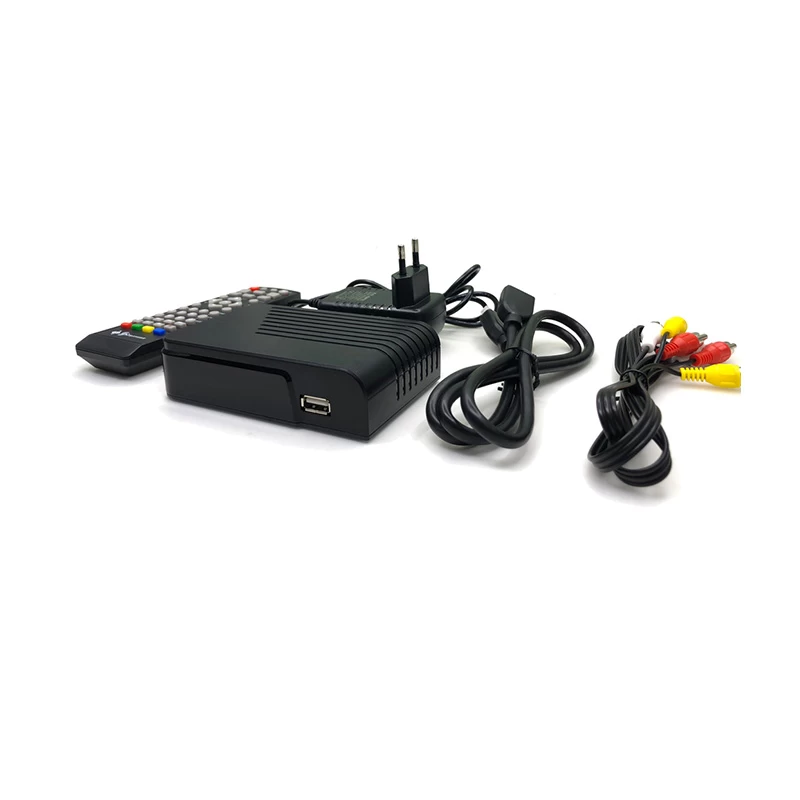

HD Video Broadcasting Satellite Receiver TV Box Tuner DVB-S2

*DVB-S2 / DVB-S Compatible

*True-color OSD and 2D graphics accelerator, anti-flicker filter supported

*MPEG-4&H.264,H.263,MPEG-2,JPEG/MJPEG Video Decoding

*HDMI port

*Video Resolution:1080P/1080i/720p/576P/576i/480p/480i

*All of the PAL and NTSC analog TV standards supported

*Media Player Support MP4,AVI,MKV,FLV, MPG, VOB, DAT,TS etc

*2*USB 2.0, Support PVR/Timeshift/Multi-Media Player

*Strong Memory:Up to 100 Satellites,1000TP & 5000 Channels

*Support DiSEqC1.0/1.1/1.2/USALS

*Supports fast channel blind

*Hotstar, YouTube, Google Map, Weather Report, IPTVsupported

*Wifi supports MT7601 and RT5370

*Patch: Biss, Powervu(auto) supported

*IKS Protocol: Cccam



Products Specifications:

1) System

CPU GX6605S, 32-bit CK610M CPU 600MHZ
Flash 32M-bit Serial Flash
RAM 512Mb DDR2 RAM embedded
Tuner AV2018

2) Video and Audio
Video Standard MPEG-2 MP@ML,MP@HL,MPEG-4 H.264/AVC
Video Mode 576i, 576p,720p, 1080i, 1080p
Audio Standard MPEG-1 layer I/II ,MP3 decoding
MPEG4


3) Tuner and Demodulator

Type DVB-S2[EN302 307],  DVB-S[EN300 421]
Frequency Range 950 ~ 2150MHz
RF Input Level -60 ~ -25dBm
Transmission Mode ISO/IEC 13818-1 MPEG-2 Transport stream Specification
Symbol Rate DVB-S mode 1 ~ 45MS/s
DVB-S2 mode 1 ~ 30MS/s
Demodulation DVB-S mode QPSK
DVB-S2 mode 8PSK, QPSK 16APSK 32APSK
Code Rate DVB-S mode 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode 1/2, 3/5,2/3, 3/4, 4/5,5/6, 8/9,9/10

4) Power Supply

Input Voltage AC 80-260V  50~60Hz
Operating Power Consumption Max. 8W
Standby Power Consumption Max. 1W

5) Front Panel

Display 4 Digital 7 Segment LED Display
Indicator Red: Standby ,Green: Run
Buttons Power, CH+, CH-
USB 1x USB2.0

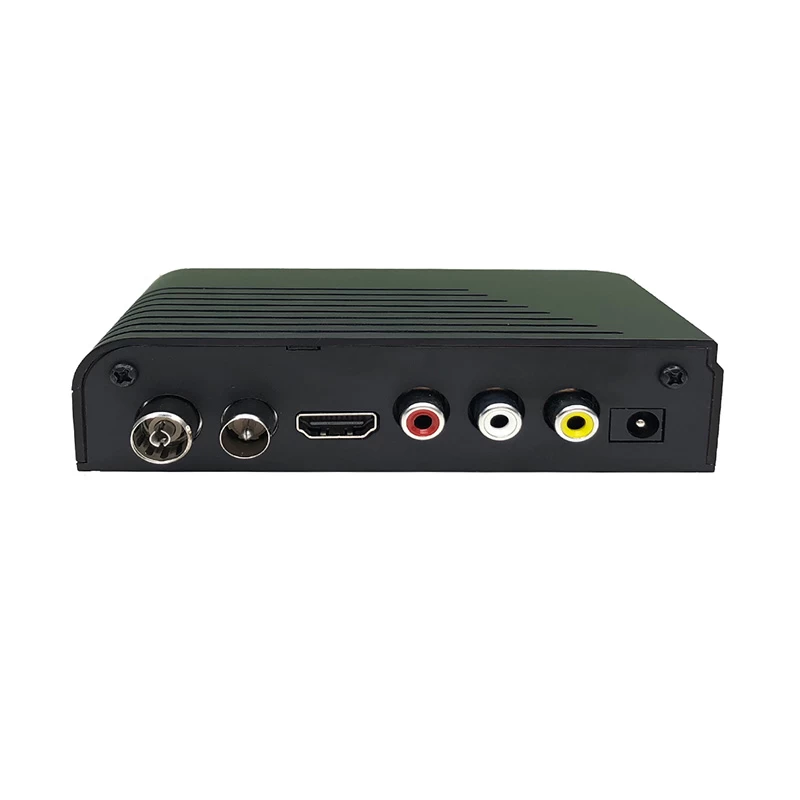

6) Rear Panel

RF Input F Type Female 75ohm
AV Out 4 x RCA
S/PDIF 1 x Coaxial
HDMI 1 x HDMI
USB 1 x USB2.0
DC Input 1 x Jack
