HDG steel Zn-Al-Mg Coated Steel Solar Mounting Structures for rooftop and ground mount

HDG steel Zn-Al-Mg Coated Steel Solar Mounting Structures  is widely used in solar rooftop and ground mount, ZN-AL-MG coated steel provides outstanding corrosion resistance, 3-5 times anti-rust performance than galvanized steel.


  • Tilt Angle0-60degree

HDG steel Zn-Al-Mg Coated Steel Solar Mounting Structures

Zn-Al-Mg Coated Steel Solar Mounting Structures

DESCRIPTION

Unique Hot-dip galvanization properties (hot-dipped in a molten bath of zinc, Aluminum & Magnesium)
Corrosion resistance performance up to 3 times better than Zinc coated steel.
20 years anti-corrosion warranty.
The best suited protection to withstand harsh environments.
Self repairing protection for cut edges.
Customized designs to fit your applications.
Compatible with all types of modules.

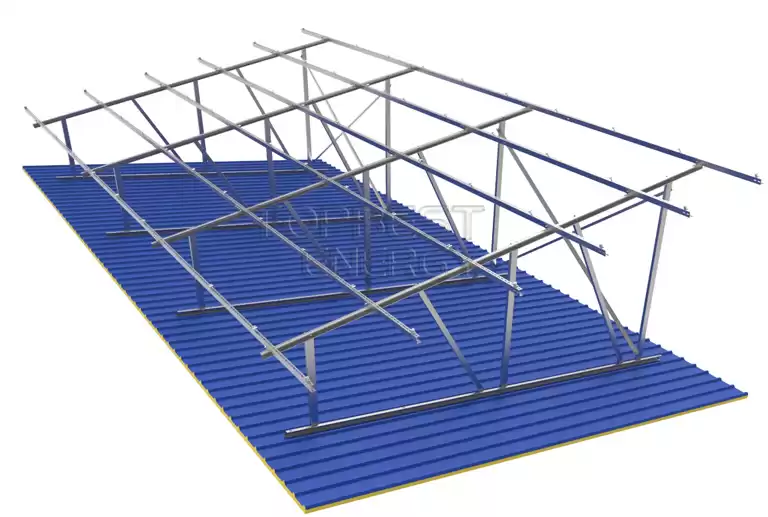

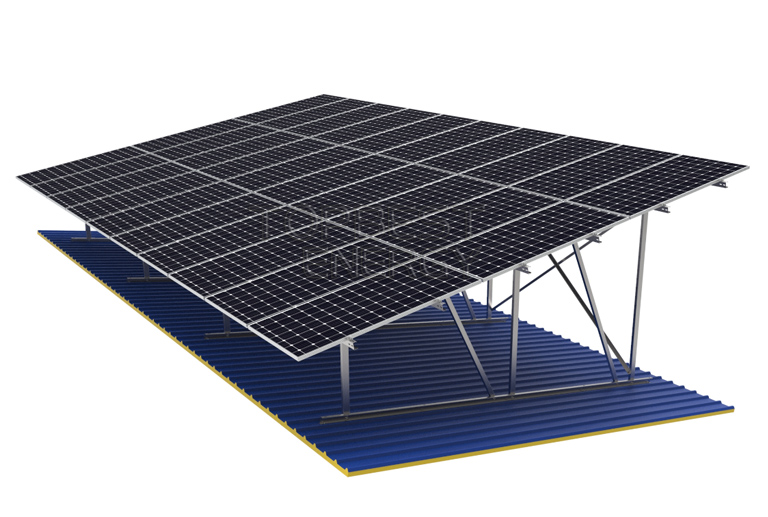

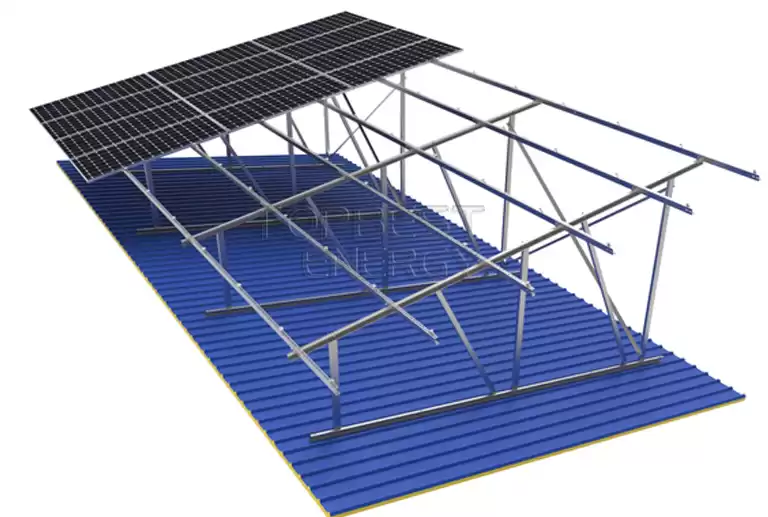

Pitch Steel Roof Mounting Structure

FEATURES & BENEFITS
1. Unique properties (hot-dipped in a molten bath of zinc, Aluminum & Magnesium)
2. Corrosion resistance performance up to 3 times better than Zinc coated steel.
3. 12 years anti-corrosion warranty.
4. The best suited protection to withstand harsh environments.
5. Self repairing protection for cut edges.
6. Customized designs to fit your applications.
7. Compatible with all types of modules. Hot-dip galvanized steel solar structure

TECHNICAL DATA
Installation Site: Tin roofs.
Tilt angle: According to the roof tilt.
Applicable Temperature: – 50 C° to 100 C°.
Structure Materials: Hot-dip galvanized by Magnelis, Hot-Dip Galvanized Steel and Stainless Steel.
Basic Wind Speed: 120km/hr (can be optimized from 120km/hr up to 160km/hr).
Design Snow Pressure: according to site elevation above sea level.
Warranty: 10 years.
Design Standards:   ASCE, AISC and ASIS & BS.

Zn-Al-Mg Coating Steel Zm275 Solar PV Support Bracket


Product Tags Zn-Al-Mg Coating structure Steel          Solar PV Support Bracket          HDG steel Zn-Al-Mg          Pitch Steel Roof Mounting Structure          Zn-Al-Mg Coating Steel Zm275          Hot-dip galvanization structure
