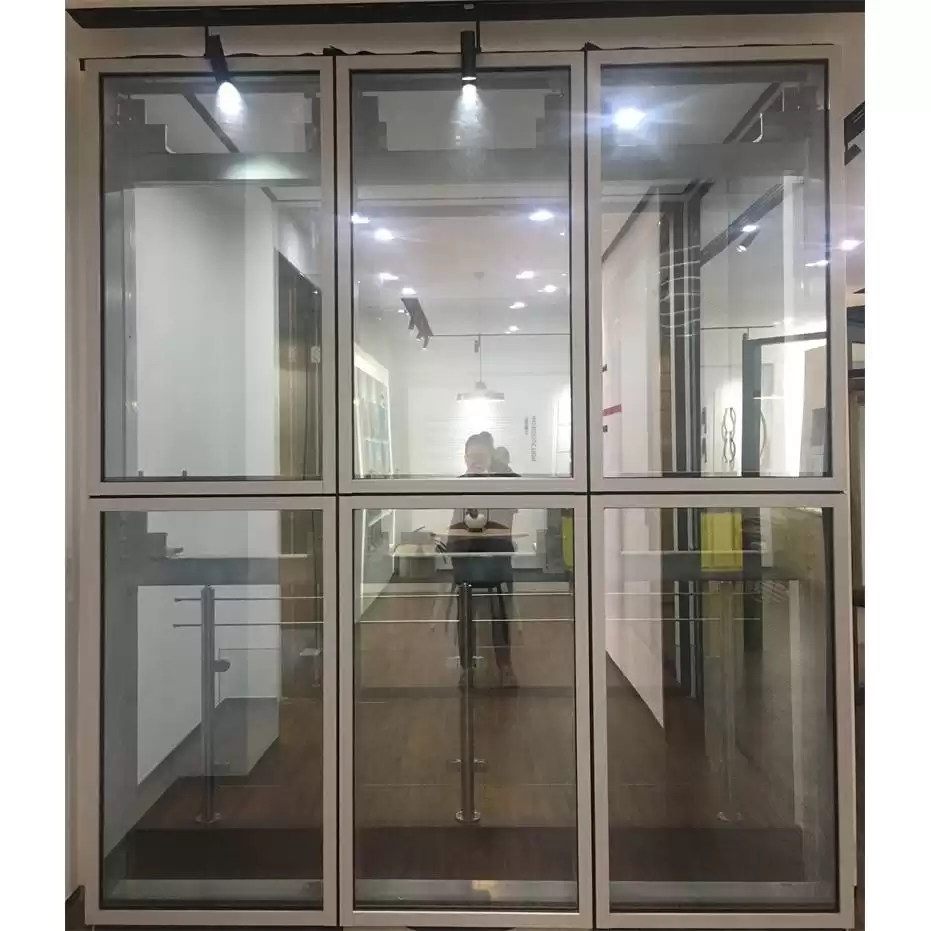

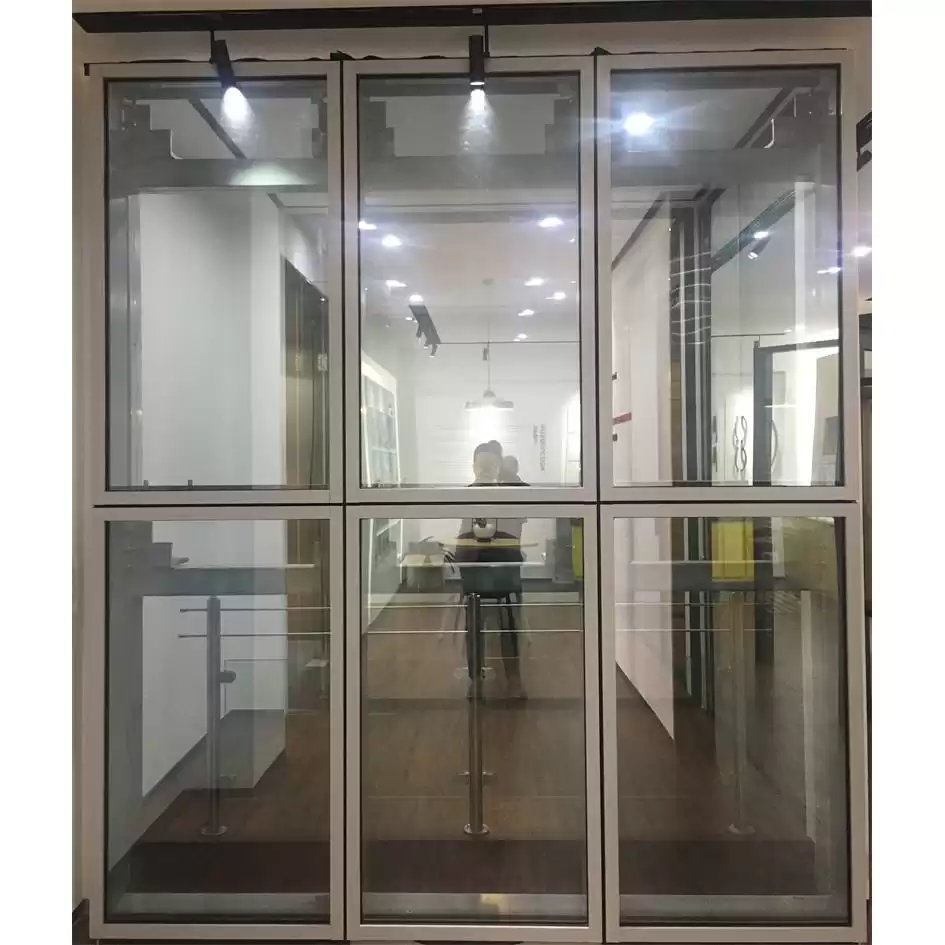

HDM180 Aluminium Unitized Glass Curtain Wall

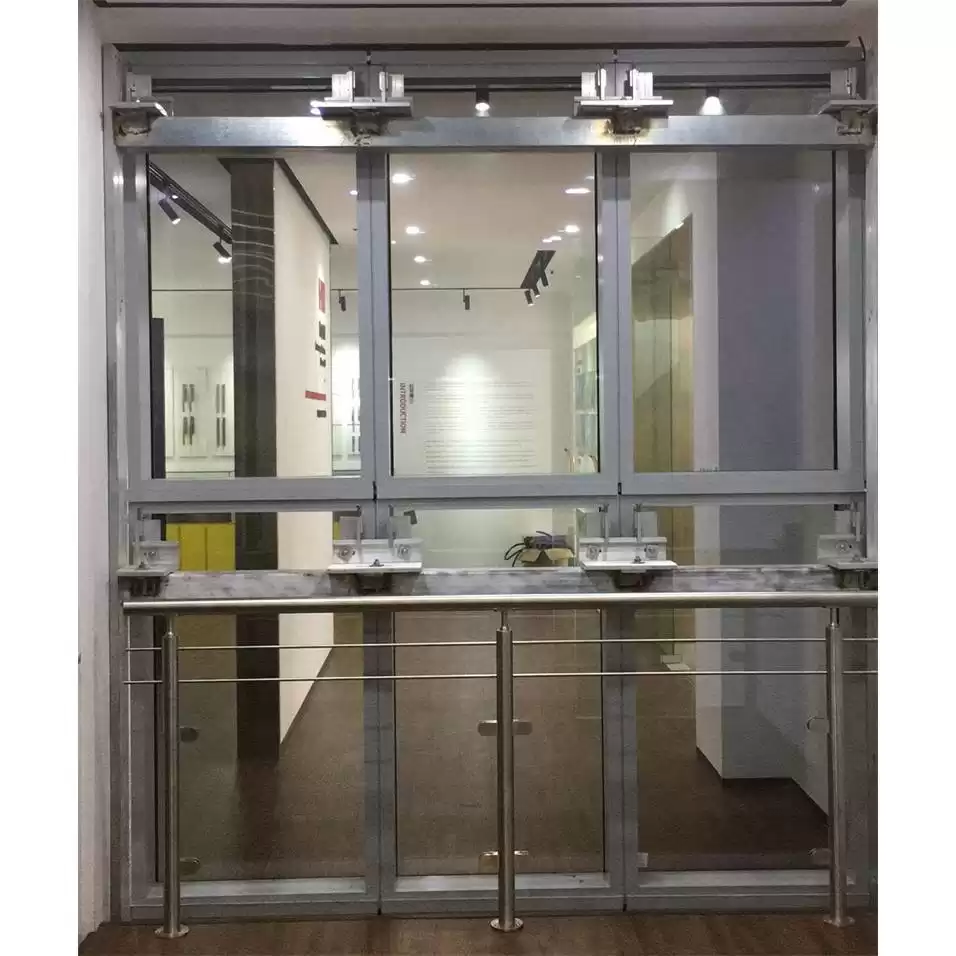

HDM180 unitized curtain wall system is a ready prefabricated units which can be installed without scaffolding.


  • Surface FinishingPowder Coating/Anodized/Eletrophoresis/PVDF
  • ShapeColumn
  • GlassClear/Frosted/Reflective/Low-E
  • Product OriginChina
  • CustomAvailable
  • Opening PatternCustomized
  • MaterialAluminum Alloy



HDM180 Aluminium Unitized Glass Curtain Wall



HOMI Curtain Wall System is a unitized solution engineered to meet these criteria and more.  It is offered in a wide range of options that can be customized to each project.  Whether you prefer stock length, fabricated or pre-assembled and pre-glazed – this is a unitized solution, the way you want it.



FEATURES



  • This is the ideal option for large construction and tall towers.
  • The external glazing bars can be fitted easily and quickly saving valuable construction time.
  • Broken glasses can be replaced easily
  • Opening units fully integrated into load-bearing structure can be constructed



Parameters
Suitable Width/Height of Sash
(mm)
Visible Width/Height

(mm)
Aluminium width
(mm)
Glass Thickness(mm)

Curtain wall awning window sash
-Width  500-1800mm
-Height 500-1800mm
-Weight 60kg

/
/
SGU:
6-10mm
DGU:
14-35mm



Performance
Heat Preservation Performance
W(m2.k)
Sound Insulation Performance
(DB)
Watertight Performance
(Pa)
Airtight Performance
Wind Load Resistance
(KPA)
6+12A+6 Low-E,2.3-2.8,
level 5/6
35DB
level 4
based on elevation
based on elevation
based on elevation



WHY CHOOSE US

Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.

Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.

System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.



FAQ

Q: Are you trading company or manufacturer?

A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience.  And you are warmly welcomed to visit us.

Q: How long is your delivery time?

A: Generally it is 15-20 workdays after receiving payment.

Q: Do you provide samples for free? What's the MOQ?

A: The new die samples are free for approval and inspection. The MOQ is 8-10tons

Q: What is the payment terms?

A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
