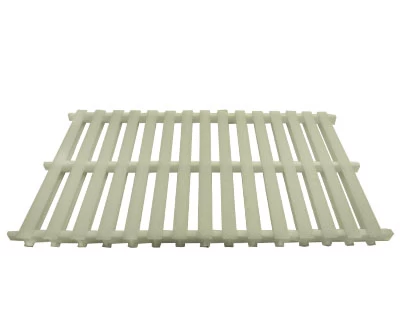

HDPE Drainage Overflow Pool Grating

Pool Overflow Grating is available in 3 widths(180mm, 250mm, 300mm)choice. The special surface pattern of pool overflow grating ensures an anti-slip surface and pleasing appearance, whilst remaining easy to clean.


  • Press Strength400 KN (41 ton/sqm)
  • Total Volume0.6m3/bundle
  • Size18cm/25cm/30cm
  • ColorWhite
  • MaterialHDPE

HDPE Drainage Overflow Pool Grating Specification:

 Item No.  JES01
 Material  HDPE and flat steel (Outer plastic, inner steel)
 Size  18cm/25cm/30cm
 Color  Beige (Other color can be customize)
 Shape  One faucet or two faucet
 Pressure Strength  400KN (41Ton/Sqm)
 Unit Weight  150g/pc
 Hardness  86
 Water Drainage Rate  95%
 Vertical Circulating Capacity  50cm3/s
 Water Retention  3.5litre/m2
 Elongation  9%
 Tensile Strength  250MPa
 Application  Swimming pool, landscape pool, anti-skid slot of drain pool site, basin, sauna bath room, guttery, ditch, etc.
 Feature

  •  Solid and Corrosion Resistant(Outer plastic plus inner steel);
  •  Attractive, non-slip top surface;
  •  Recoverable, recycle, classical environment protection material;
  •  Anti-slip and wear-resistant for long life;
  •  Environmental friendly, non-pollution, no toxic chemicals;
  •  Easy installation and easy to clean and maintenance convenient;
  •  Water-proof, weather resistance, flexible and strong arcing curves;
  •  Ideal for overflow systems of swimming pool and spa;

 Package  45pcs/bundle, 0.6m3/bundle



Introduction About Overflow Grating:

Overflow Grating uses high density polyethylene (HDPE) and flat steel as raw material. With high strength, corrosion resistance, fast drainage, easy installation feature, plastic overflow grating is the best solution for swimming pool and other grating. If combined with pebbles the HDPE overflow grating will have beautiful landscape and excellent drainage effect.

The most popular size of pool overflow grating, the 300mm wide product can be found in pools all across China. The modular design makes our overflow grating easy to install and maintenance.

Plastic Overflow Grating Main Material:

Swimming Pool Overflow Gratings

Overflow Grating Construction Section View:

Overflow Pool Grating

Project:

Pool Overflow Grating
