HDPE Material Non Toxic Paddock Drainage True Grid Flooring

The load bearing capacity of paddock drainage true grid flooring is up to 250 ton per square meter depending on installation preparation. Topping material depth is dependent upon use, climate and area restrictions.




Recruit Global Distributors of Drainage Grid Flooring

The load bearing capacity of paddock drainage true grid flooring is up to 250 ton per square meter depending on installation preparation. Topping material depth is dependent upon use, climate and area restrictions.

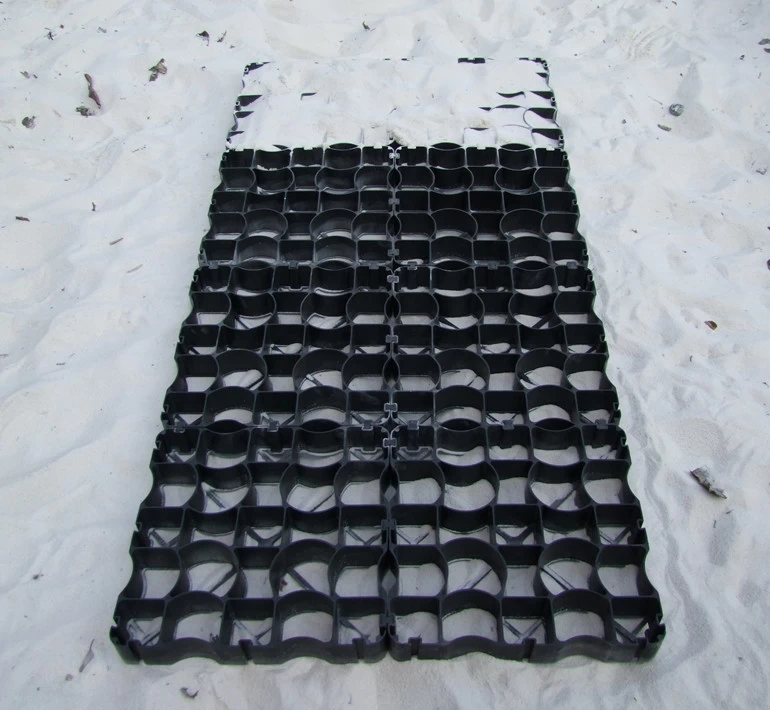

HDPE MATERIAL NON TOXIC PADDOCK DRAINAGE TRUE GRID FLOORING


LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –TRUE GRID FLOORING

HDPE true grid flooring is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Non toxic ture grid flooring from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.



DIMENSION

 MATERIAL:  HDPE(100% Recycled High Density Polyethylene)
 SIZE:  336*336*50mm
 COLOR:  Black; Dark Green
 CELL WALL THICKNESS:  2mm
 WEIGHT:  0.65kg/pc; 5.85kg/m²
 PACKING:  Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.
 LOADING QUANTITY:  570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ


SPECIFICATION

 LOADING BEARING CAPACITY:  More than 250tons/m2 after filled
 OPEN CELL PERCENTAGE:   92% top; 75% base
 ANTI HCL:  According to GB4218-1984, 30%x24h, no visible change
 ANTI NaOH:   According to GB4218-1984, 30%x24h, no visible change
 THERMAL AGING:   According to GB/T 7141-1999, 70ICx24h, no visible change
 UV RESISTANCE:  According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
 TOXICITY:  Non Toxic
 DURABILITY:  Durability of at least 10 years in neutral ground of 4<pH<9



COLORS

HDPE Material True Grid FlooringHDPE Material True Grid Flooring


APPLICATION


  • Indoor and outdoor riding arenasPaddock Grid Floor

  • Paddocks and open stables

  • Horse walkers

  • Lunging arena

  • Equestrian sports area

  • Tethering and mounting areas

  • Feeding spots

  • Tolt tracks, Racetracts

  • Gravel road

  • Round pens

  • Washing areas.




FEATURE

Plastic Grid Floor



-Light weight

-Non-slip

-Elastic and robust

-Easy Install

-Crack-proof

-Weatherproof

-Environmentally friendly, 100% recyclable

-High load capacity

-Ammonia resistant

-Withstands frost and UV light

-Does not rot
