HDRiG V Lock Mount Plate Power Supply Splitter Set with Coiled Power Cable

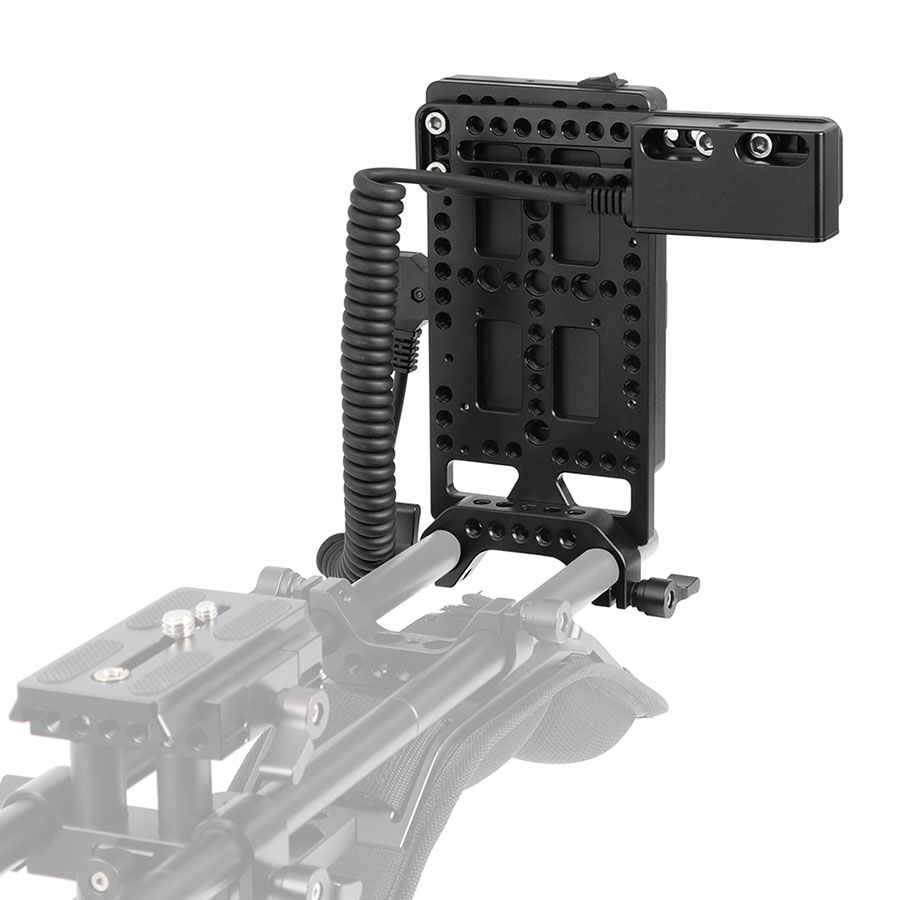

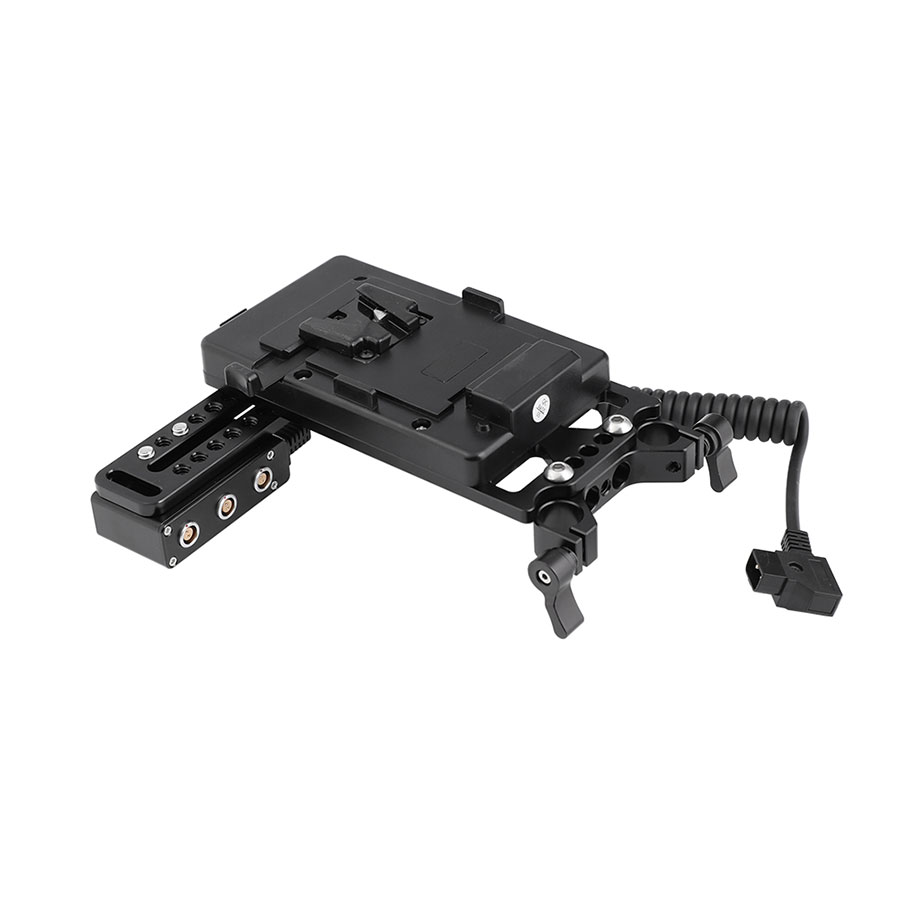

This is the V Lock Power Supply Splitter Set with 15mm rod clamp and 2pin power cable.




HDRiG V Lock Mount Plate Power Supply Splitter Set with Coiled Power Cable



• V-Lock quick release mount battery plate

• Splitter power output interface: 12V; 7.2V; 5V; 14.8V D-Tap

• 15mm rod clamp to mount the battery splitter on DSLR rig system

• 1/4"-20 & 3/8"-16 screw-holes & 15mm LWS clamp bracket

• Comes with Standard male D-Tap to LEMO 2 Pin male connector

• Coiled cable length 12 inches and stretchable length 36 inches

• Material: ABS Flame-retardant plastic and Aluminum



• 12V output voltage: apply to the monitor screen

• 7.2V output voltage: for Canon 6D, 7D, 60D, 70D, 5D MarkII, 5D markII etc

• 5V output voltage: apply to the recorder , H4N microphone , frequency divider ect

• LP-E6 dummy battery for Canon EOS 6D, 7D, 60D, 70D, 5D MarkII, 5D markII etc

• D-Tap to Lemo 2 Pin Male Coiled Power Cable is compatible with Teradek, Paralinx, Cinegears, Ghost Eye, Came TV, Serv Pro, Teradek Bolt, Sidekick, Tomahawk or Arrow-X, etc.

• Each cable is individually tested prior to delivery to ensure that there are no short circuit ,no potential breakdown problems, and it works great!

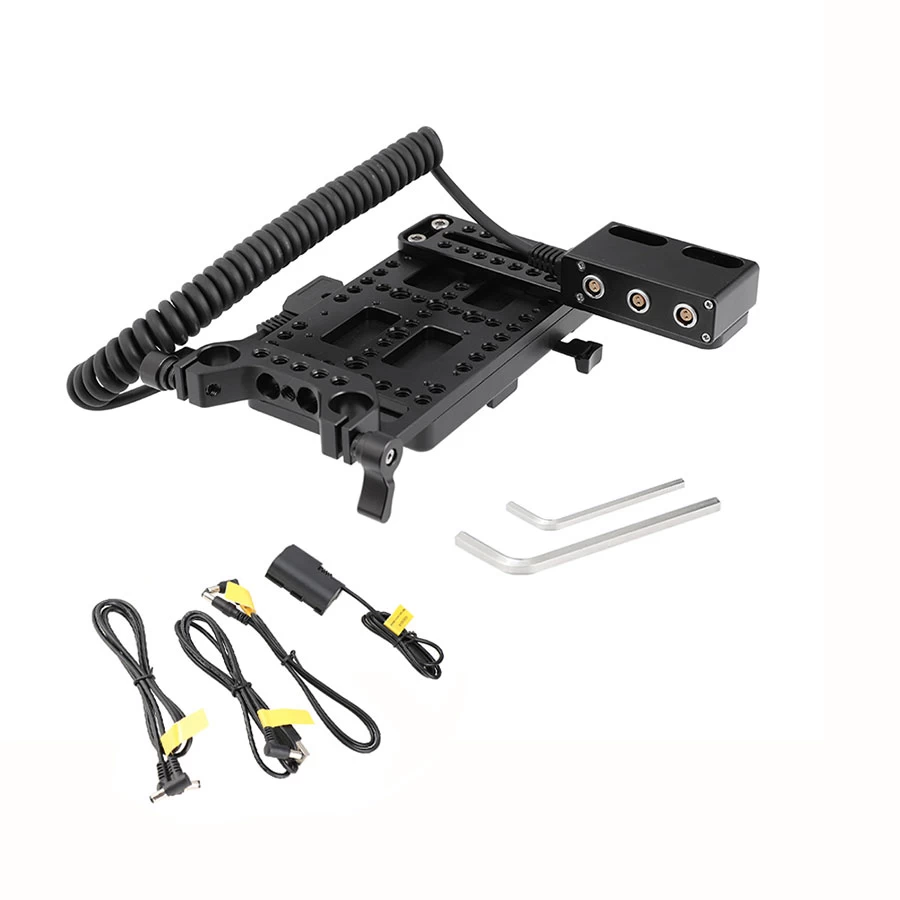

1 x Cool Cheese Plate

1 x 15mm RailBlock

1 x V-mount Power Supply BP Battery Splitter

1 x LP-E6 Dummy Battery Pack Adapter

3 x DC Cable

1 x D-Tap to Lemo 2 Pin Male Coiled Power Cable
