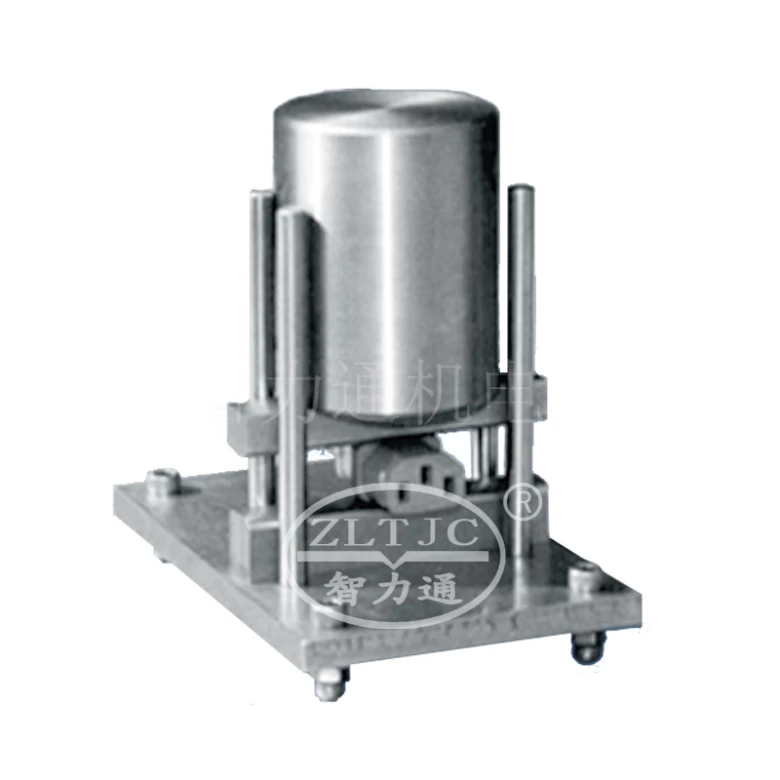

Heat Compression Test Apparatus
Product details: Model ZLT-RS1.

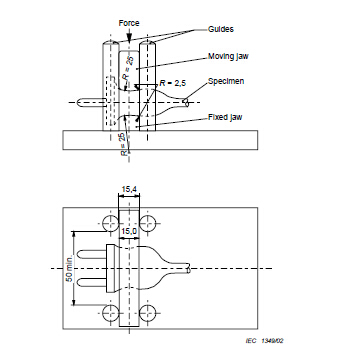

To determine the verification of resistance of accessories and surface type mounting at a temperature of (80±2)℃, according to IEC 60884 1 figure 38 and clause 25.4, VDE 0620 figure 37, BS 1363 figure 23.
Standard outfit:
2 steel jaws, a moving jaw and fixed jaw, cylindrical face of 25 mm radius, width of 15 mm and length of 50 mm, the corners with a radius of 2,5 mm,
1 weight of 20N,
4 brackets for fixed jaws,
All stainless steel.
