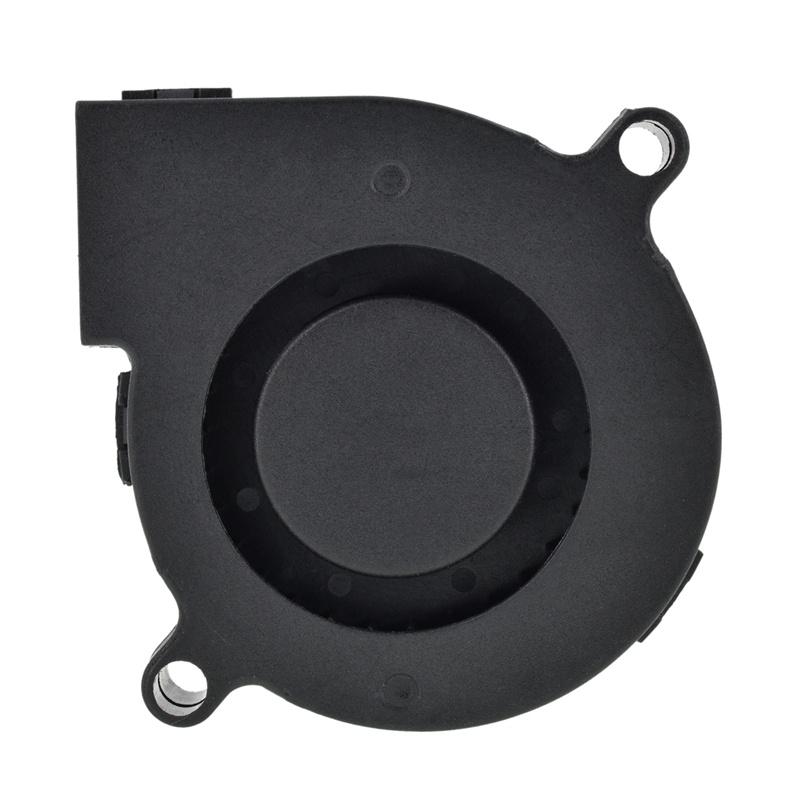

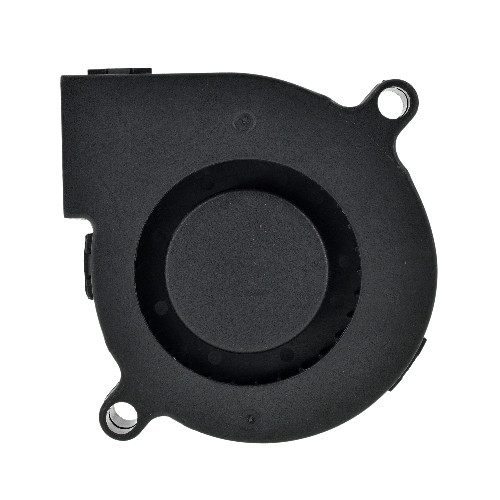

Plastic Impeller DC Brushless Centrifugal Air Cooling Radiator Fan Ventilation Blower. Size of the fan is 50mm x 50mm x 10mm, with ball bearings system has a lifespan of 67,000 hours.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

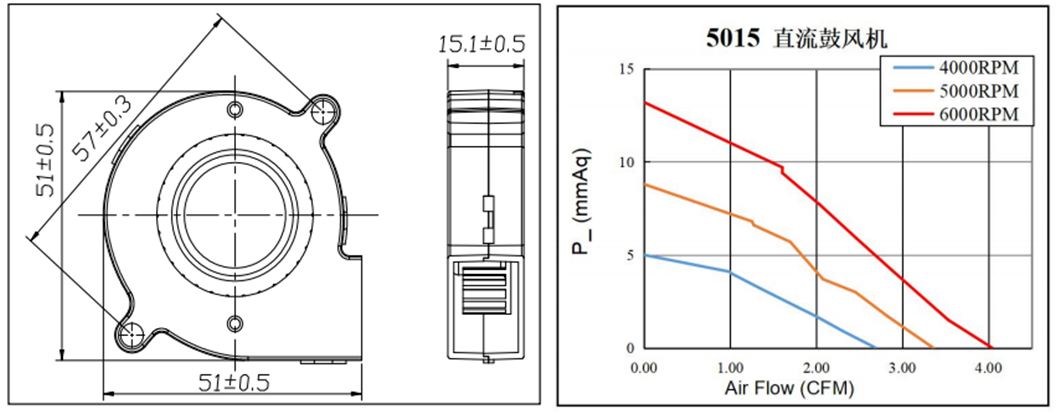

Dimension of outer the frame is 50 mm(L) x 50 mm(W) x 15 mm(H) / The size of fan in inch is 1.96 in(L) x 1.96 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 57.0 ± 0.3 mm / 2.24 in.
-

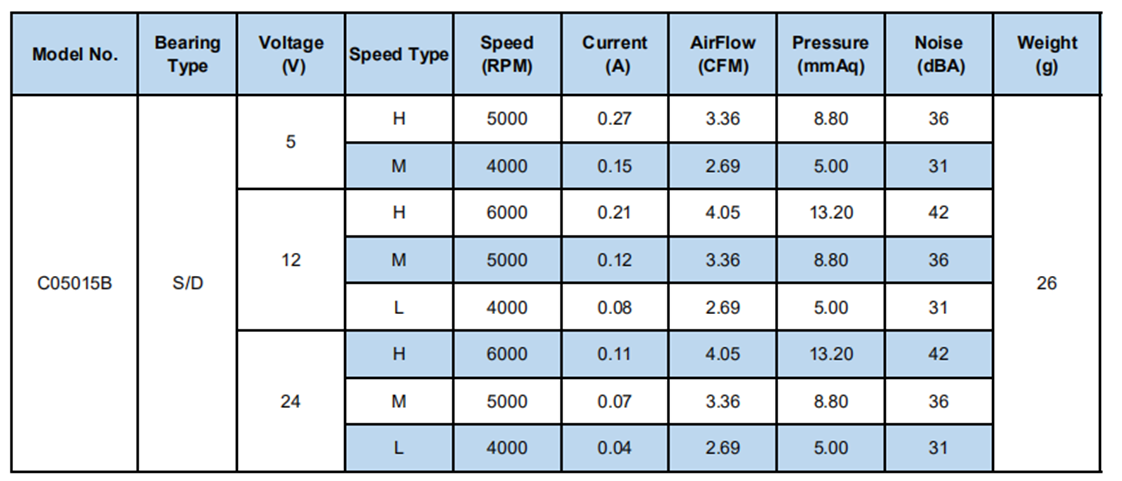

Operating Voltage Range: DC 5V/12V/24V | Current: 0.04 ~ 0.27 Amp | Speed: 4000 ~ 6000 RPM | Airflow: 2.69 ~ 4.05 CFM | Noise: 31 ~ 42 dBA | Pressure: 5.00 ~ 13.20 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

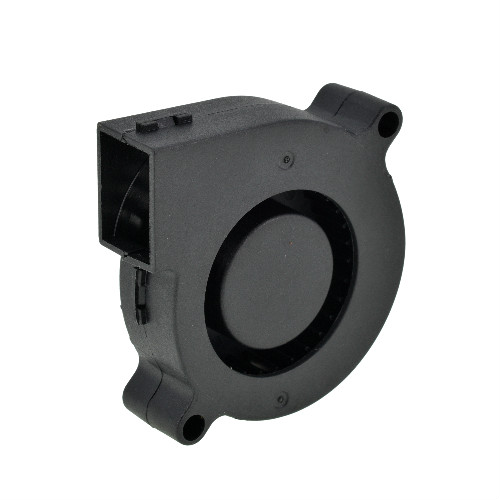

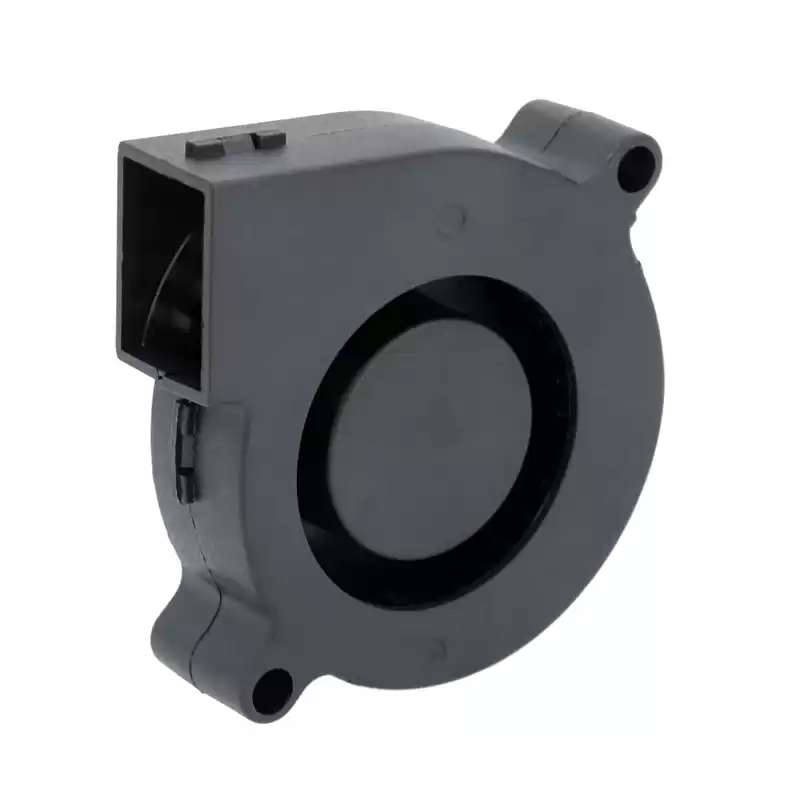

DC BLOWER FAN 50x50x15mm(1.96"x1.96"x0.59")
General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Strict Waterproof & Dustproof Test;
-
Controllable versatility, high speed of 5000RPM in operation;
-
Impedance protection ensures safe operation at high temperatures;
-
PBT frame and blades, not easy to deform and break, long service life;
-
They are available to customers in various voltages, and are fabricated in accordance with international standards.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
We are committed to solving cooling and ventilation problems of Electronic Products, Medical Equipment, Office Electrics, Air Purifier, Automotive Electronics, ect.
-
Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
-
Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
