1.Features of glasswool sandwich panel:
1. Heat and sound insulation. Temperature suitable for Glass Wool ranges from -200 centigrade to 150 centigrade.
2. Good chemical resistance, waterproof, anti-corrosion, insect-free etc.
3. Advanced Tech: Automatic rolling machines make the whole process of manufacture effective.
4. Energy conservation, environmental protection, economical, heat insulting, good structure, easy-doing construction
5. Light weight enough to reduce building expense.
6. Time can be saved on a building project due to the simple installation.
2.Application:
Steel house, suburban housing, villa, kindergarten, model house for apartment, commercial building, remodeling of clean room, steel structure house, workshop, airport, cold storage, etc.
3.Specification:
|

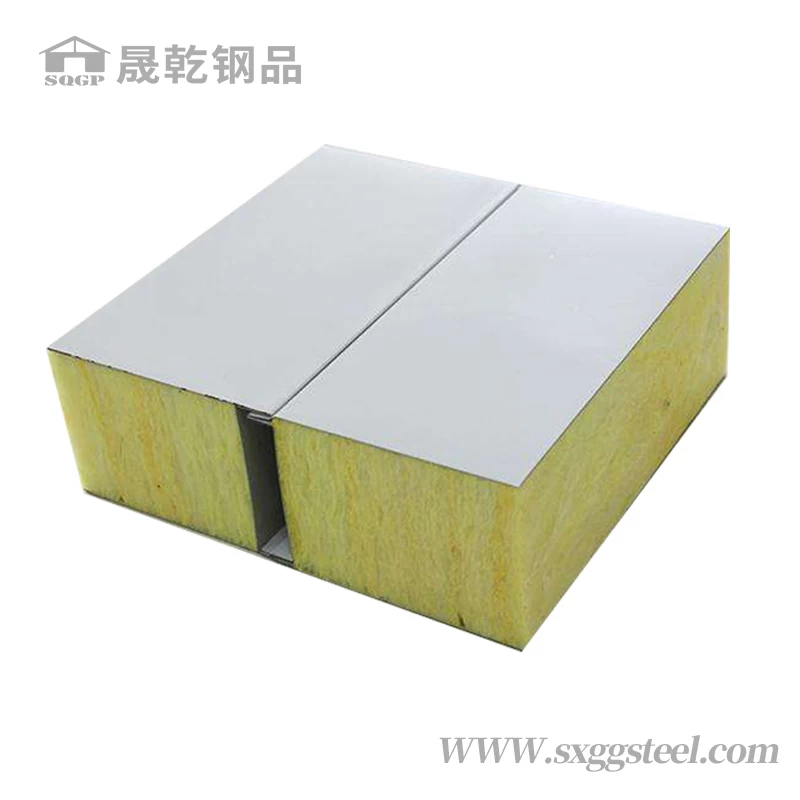

Specifications of glasswool sandwich panel:
|
|
Effective width
|
Wall panel: 950mm 1150mm Roof panel: 950mm
|
|
Length
|
According to customer's request
|
|
Materials
|
Glass wool, Color steel sheet
|
|
Structure
|
Upper and lower layer: Color steel sheet
|
|
Middle: Glass wool board
|
|
Thickness
|
Color steel sheet: 0.3-0.6mm rock wool: 50mm 75mm 100mm 120mm 150mm
|
|
The Density of glass wool
|
40~60kg/m3
|
|
Color
|
Ral Standard
|
|
Character
|
Fireproof, heat insulation, green and environmental
|
|
Use
|
various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.
|

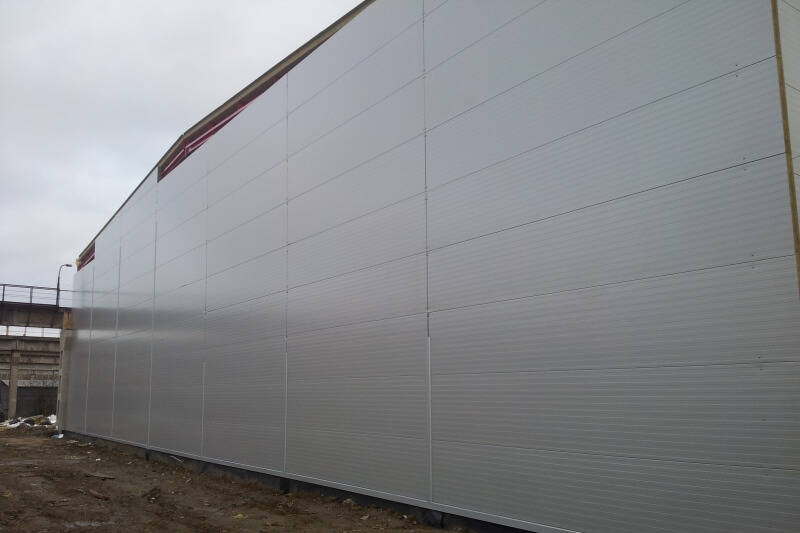

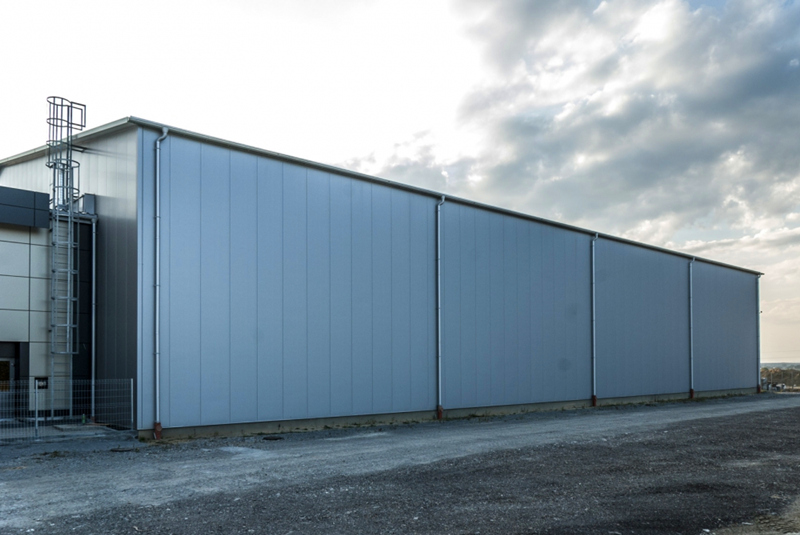

4.Exterior wall panel case
