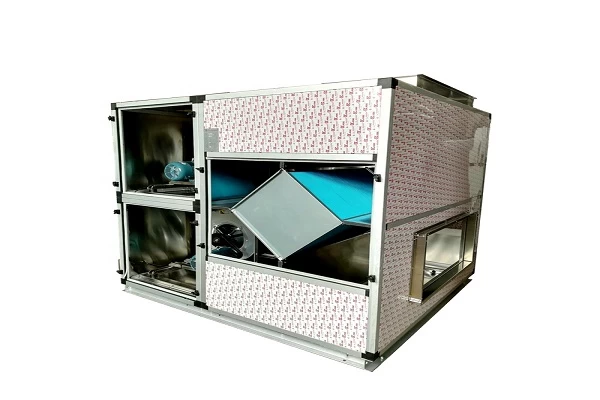

Heat Recovery Fresh Air Handling Unit
Main Features:
No pollution heat exchange: the
exchanger is made with modular structure, aluminium extruded sections,
aluminium coated Zinc plate, all the joints sealed by sealant, avoid
cross-polluted
- Operation efficiency and quietly, VFD fan available
- Outstanding reliability and performance
- Anti-corrosion stainless steel structure, clean hygienic design, durable
epoxy resin coated coil available
- Configured flexibly, numerous options for customization: cooling,
dehumidifying, heating and air clean function optional
Detailed Configuration:
Frame
• Penta-post extra heavy gauge aluminium profiles
and strong fiber-reinforced PE corner connection forming the structural frame
• Superior mechanical strength and rigidity to the
unit frame and to prevent any buckling or deformation
• Thermal bridge free design, the profiles filled with polyurethane foam for
insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing Panel and Insulation
•
Double skin construction is provided by sandwich type panels comprising
inner and outer stainless steel skins and polyurethane foam with
minimum 48kg/m3 density, providing a good thermal and acoustical
performance
• The gasket liner between the panels and frame ensures the air leakage
rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings,
complies to 500h salt spray testing, showing an excellent corrosion
protection performance
Famous Brand Blower and Motor
•
Fan selection based on the air flow and air static requirement is done by
fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal
fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• TEFC type motor, class F insulation and IP54 or IP55 protection, energy
saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option
Vibration Eliminator
•
To reduce the transmission of vibration and noise, fan and motor are installed
on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
• This unique structure not only reduce the vibration and noise, but also
protect fan and motor during transportation
High Efficiency Cooling and
Heating Coil
•
All coils calculation and selection is done by selection software to match the
required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Stainless Steel Drain Pan
•
Slop type design, no drain water carryover
•
Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan available upon application
• SteriTouch technology Dust Free Drip Pan Coating
• Antimicrobial surface
• Good exterior durability and corrosion resistance
• Non-toxic, comply with BS476 part 7
