Description

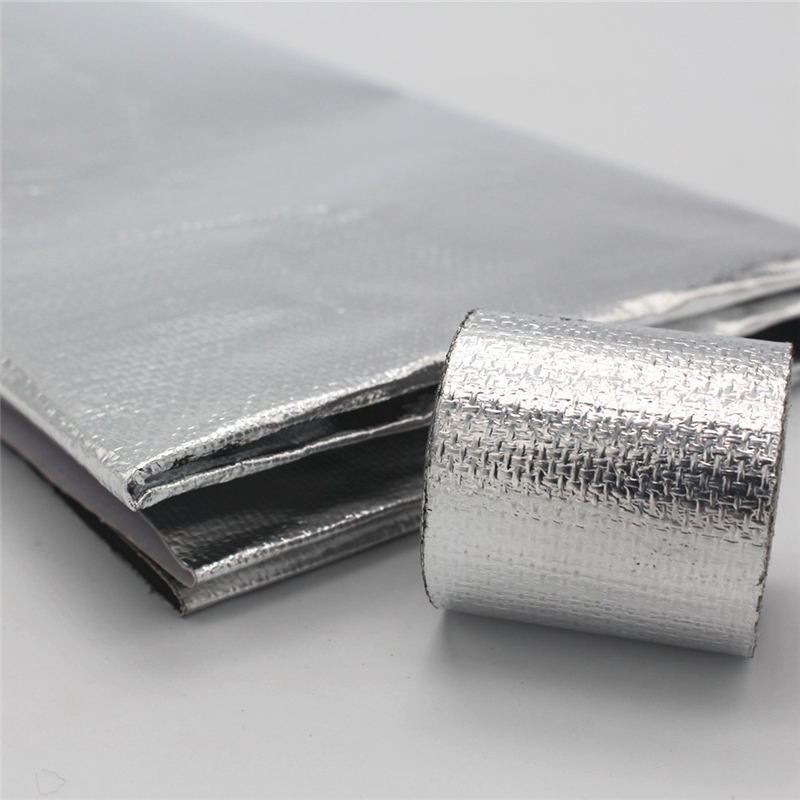

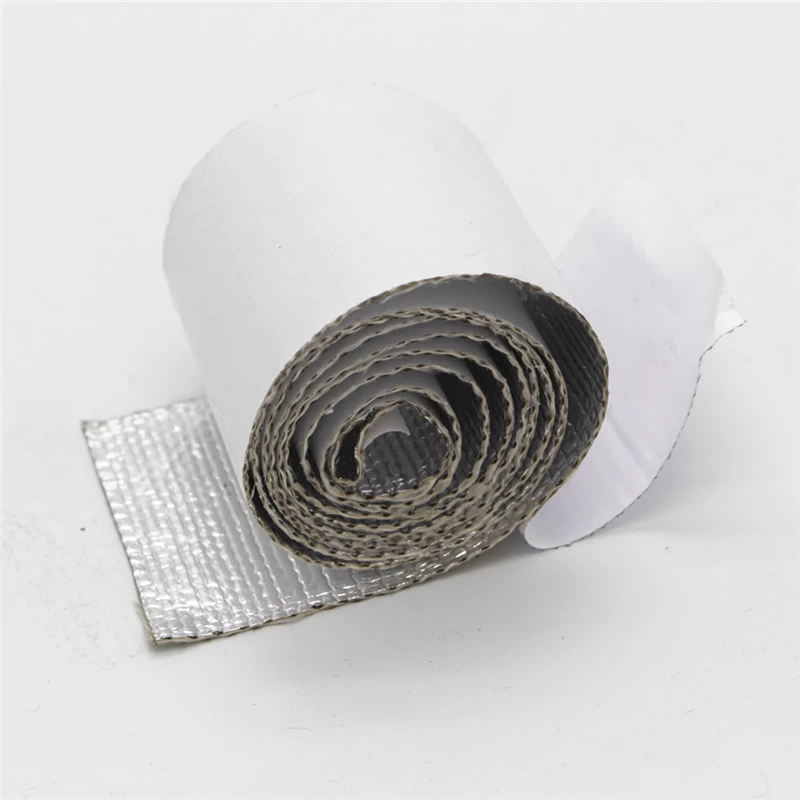

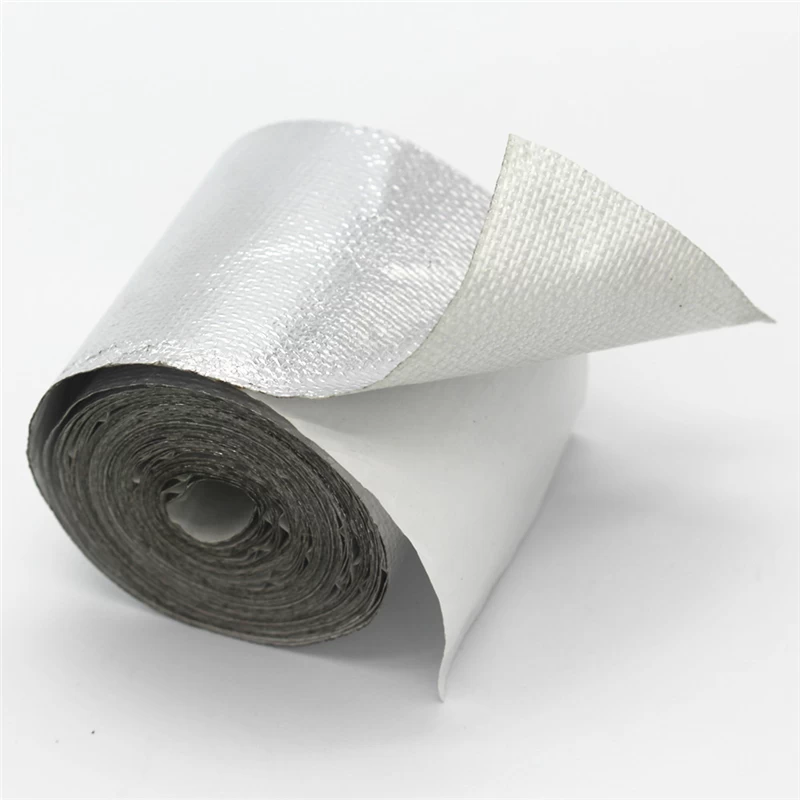

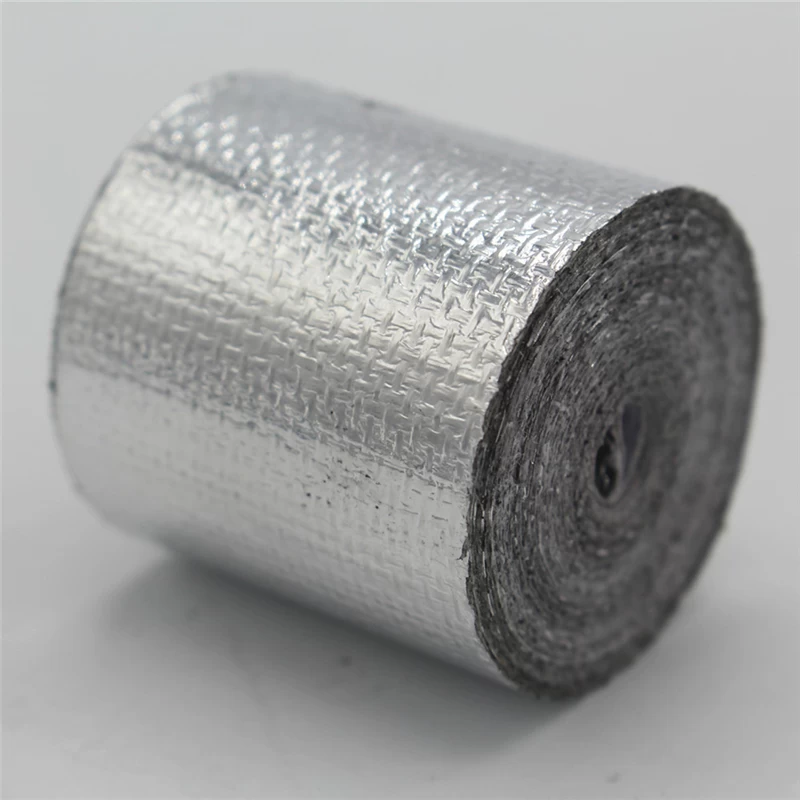

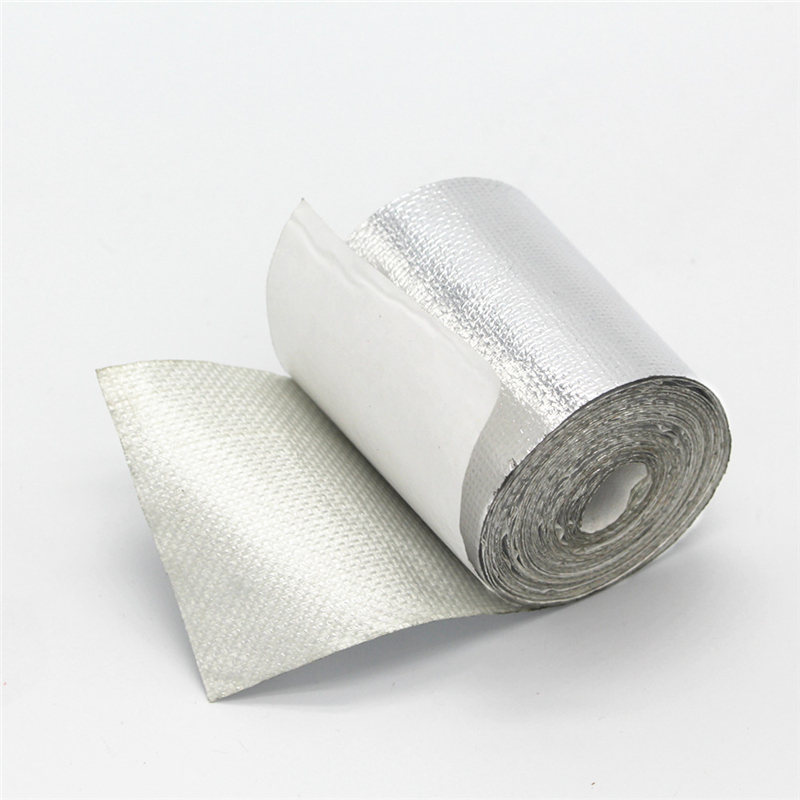

FGT-AL-PSA Heat Reflect Shield Tape with Adhesive Backing made by heat reflective aluminum and fiberglass, then with PSA adhesive backed. The PSA have acrylic or silicone material.
The tape is overlaped by 30% when wraping, which provides the entire assembly with stability.
Product design can be in die-cut, tape or custom geometric shapes. Pressure sensitive adhesives may be used for the product to be adhered directly to component or mechanical attachments such as snaps and clips may be integrated into the design.
Features

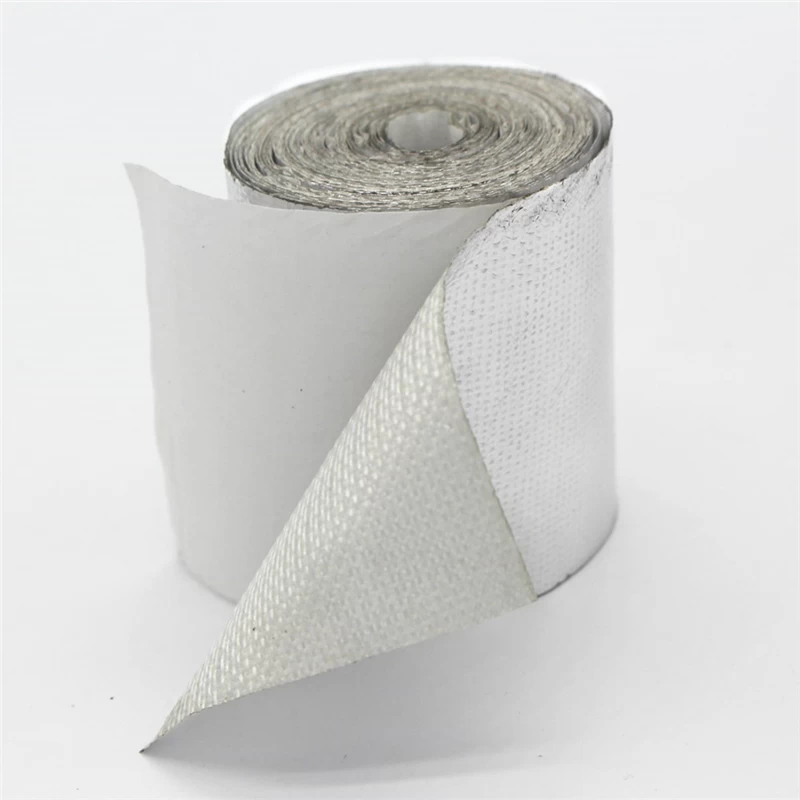

Paper release liner makes for quick and clean application
Operational temperature range of -50°C to 260°C
Application

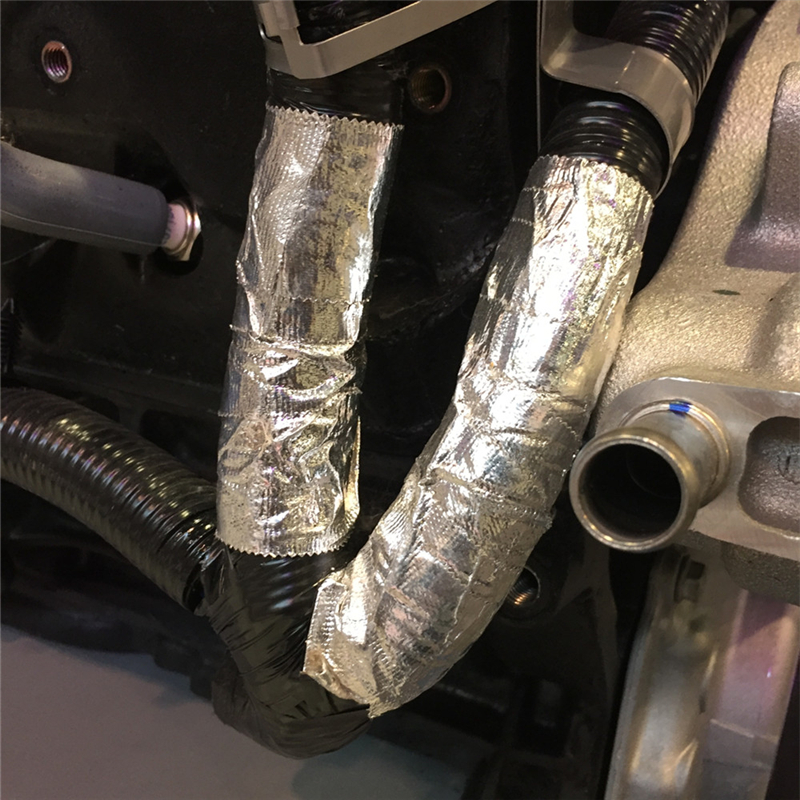

It is used to protection of industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe from exposure to high and extreme heat conditions.
Specifications
|
DATASHEET
|
|
Part number
|
Width
|
Length
|
|
mm
|
m
|
|
FGT-AL-PSA-25
|
25
|
30
|
|
FGT-AL-PSA-38
|
38
|
30
|
|
FGT-AL-PSA-50
|
50
|
30
|
|
FGT-AL-PSA-75
|
75
|
30
|
|
FGT-AL-PSA-100
|
100
|
30
|
|
FGT-AL-PSA-125
|
125
|
30
|
|
FGT-AL-PSA-150
|
150
|
30
|
|
FGT-AL-PSA-200
|
200
|
30
|
|
Technical Datasheet
|
|
Material
|
Fiberglass, aluminum
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Silver
|
|
Standard thickness
|
0.2, 0.8, 1.5, 2.0, 3.0MM
|
|
MOQ
|
500 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness and width upon request
Special length or packing upon request.
