Description

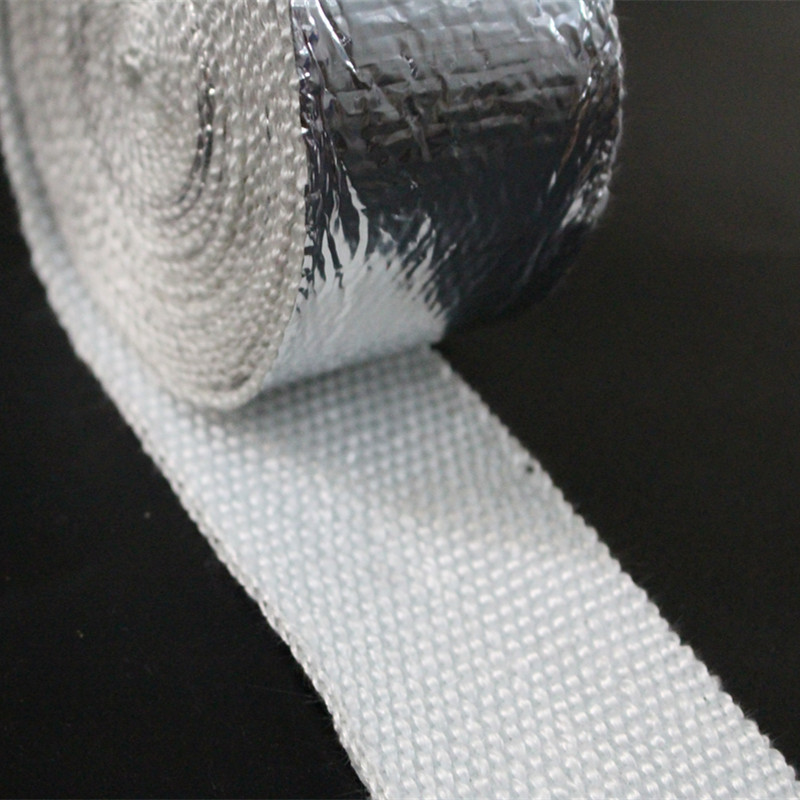

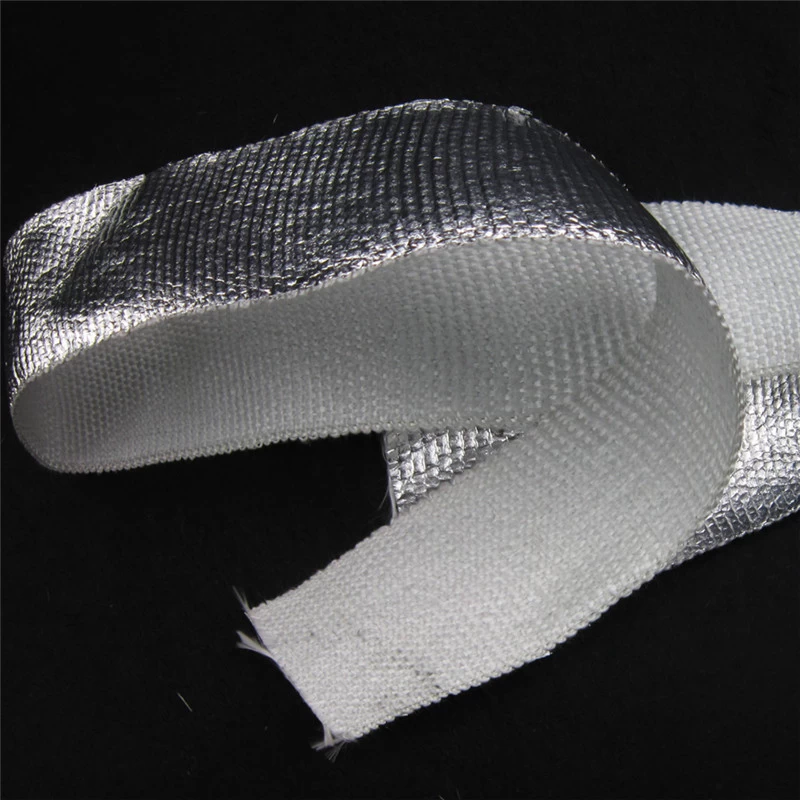

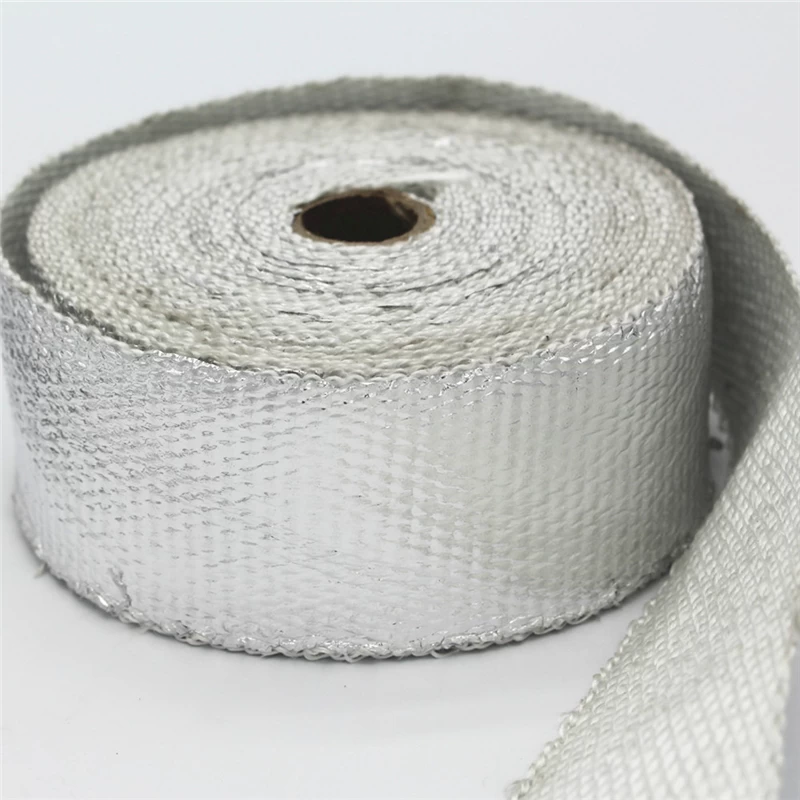

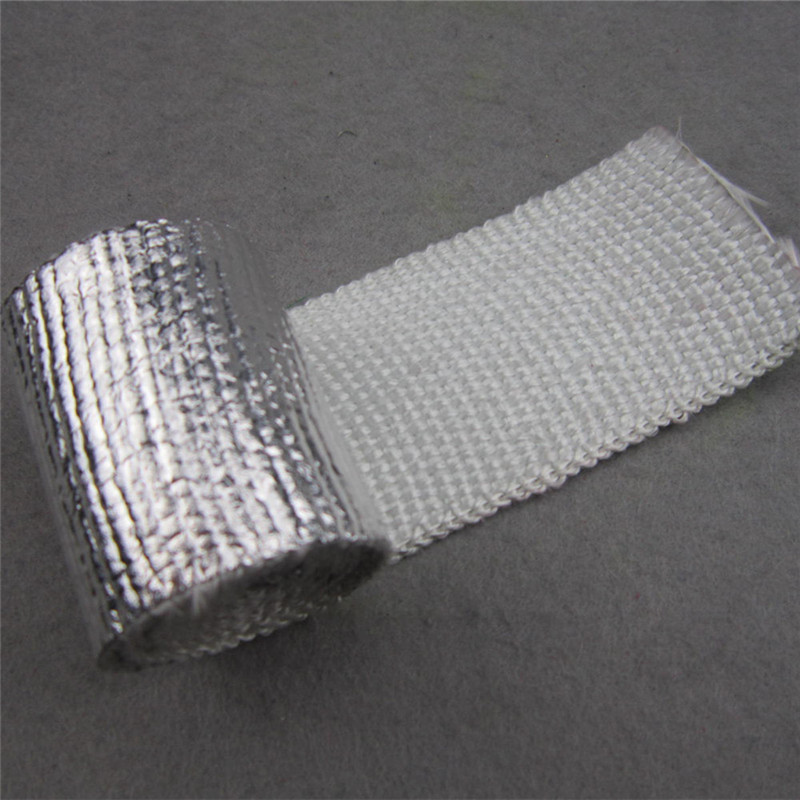

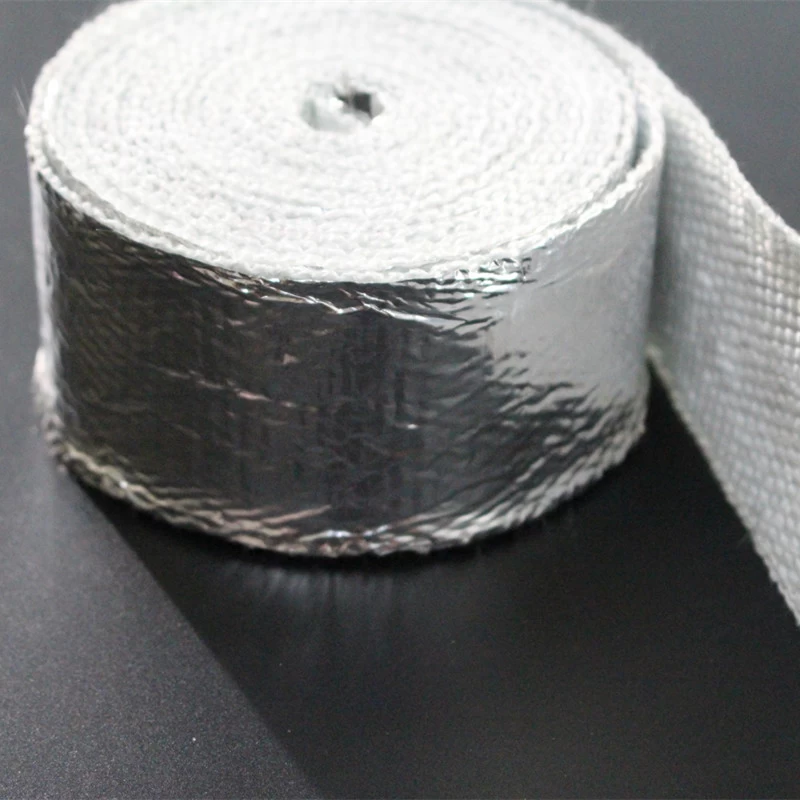

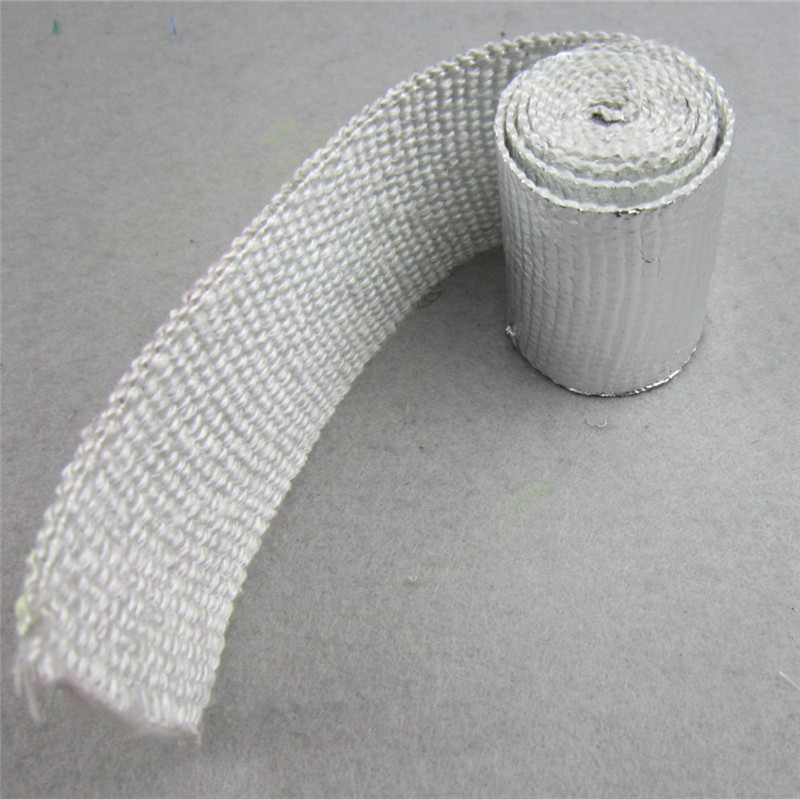

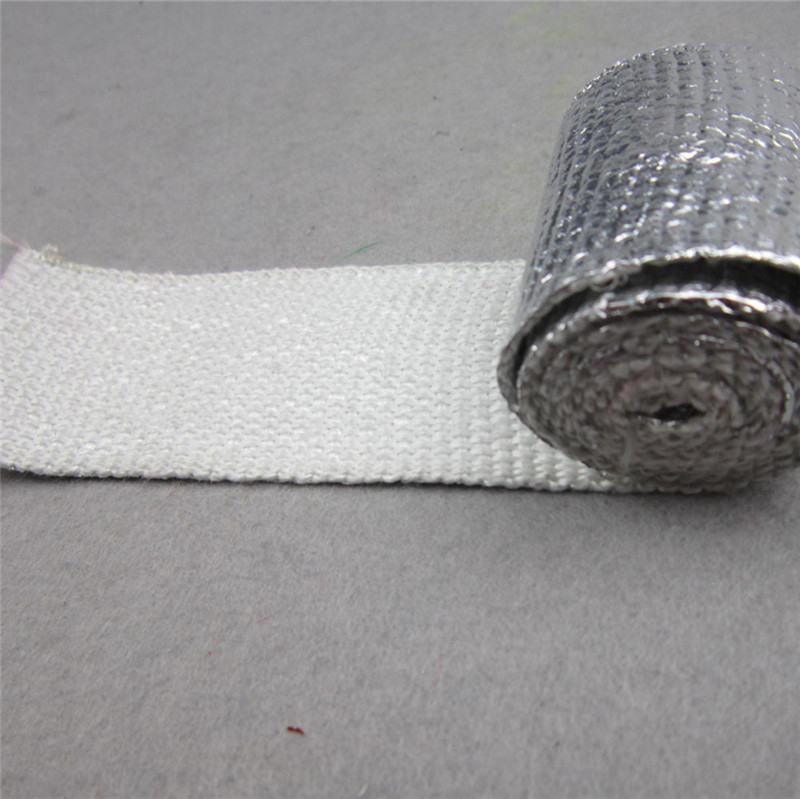

FGT-AL Heat Reflective Aluminum Fiberglass Tape made by heat reflective aluminum coated with fiberglass tapes. These heat reflective materials generally reflect 95 to 98% of the infrared heat striking its surface.
Features
The tape is overlaped by 50% when wraping, which provides the entire assembly with stability. Safety wire, clamps, ties or pure silicone tape can be used to secure the tape in place after installation.
Application
It is used to protection of industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe from exposure to high and extreme heat conditions.
Specifications
|
DATASHEET
|
|
Part number
|
Width
|
Length
|
|
mm
|
m
|
|
FGT-AL-25
|
25
|
30
|
|
FGT-AL-38
|
38
|
30
|
|
FGT-AL-50
|
50
|
30
|
|
FGT-AL-75
|
75
|
30
|
|
FGT-AL-100
|
100
|
30
|
|
FGT-AL-125
|
125
|
30
|
|
FGT-AL-150
|
150
|
30
|
|
FGT-AL-200
|
200
|
30
|
|
Technical Datasheet
|
|
Material
|
Fiberglass, aluminum
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Silver
|
|
Standard thickness
|
1.5 mm
|
|
MOQ
|
100 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness and width upon request
Special length or packing upon request.
