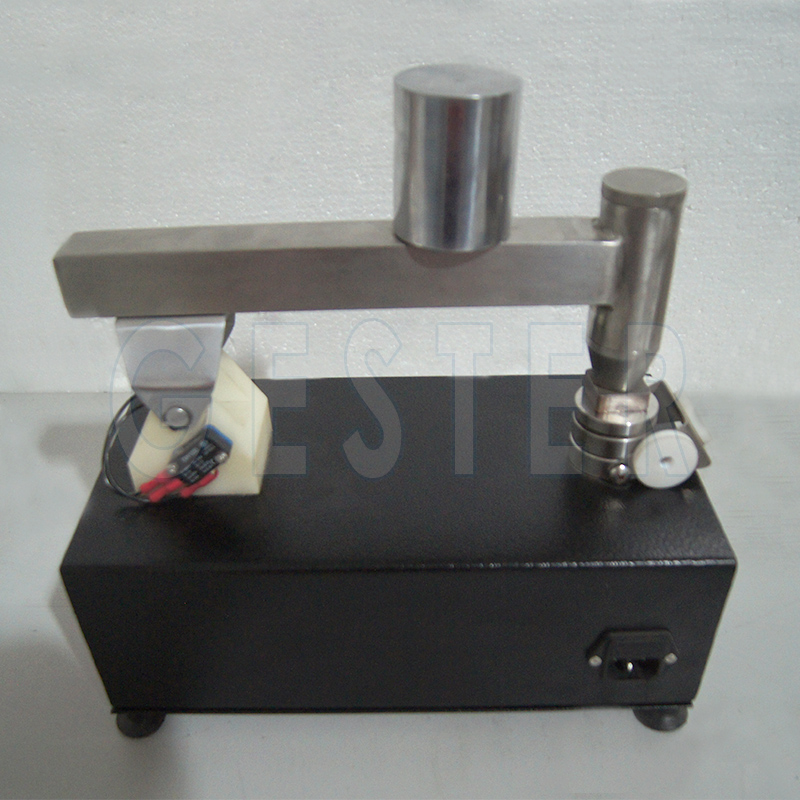

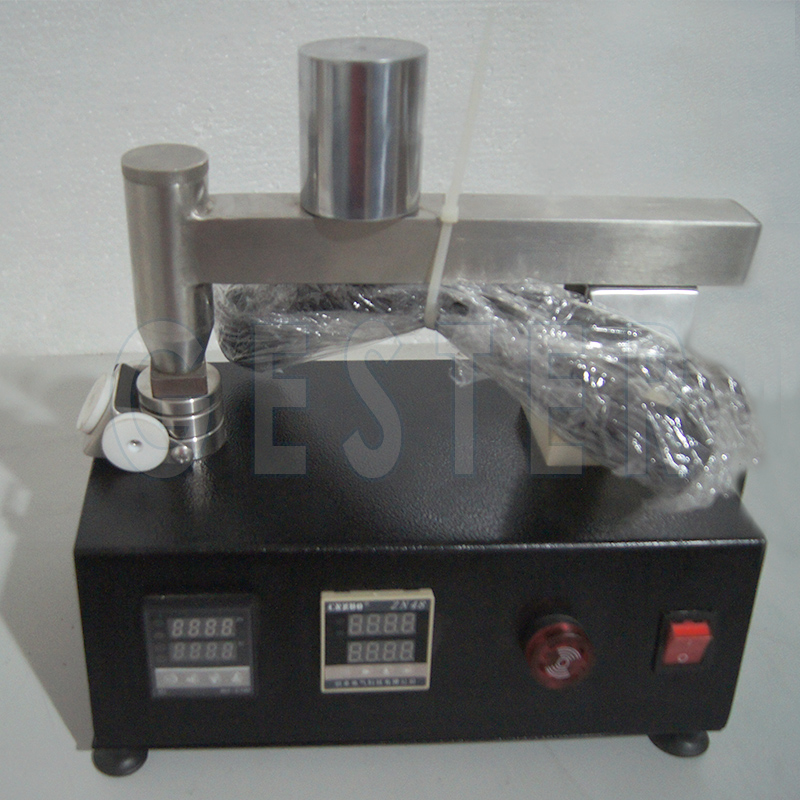

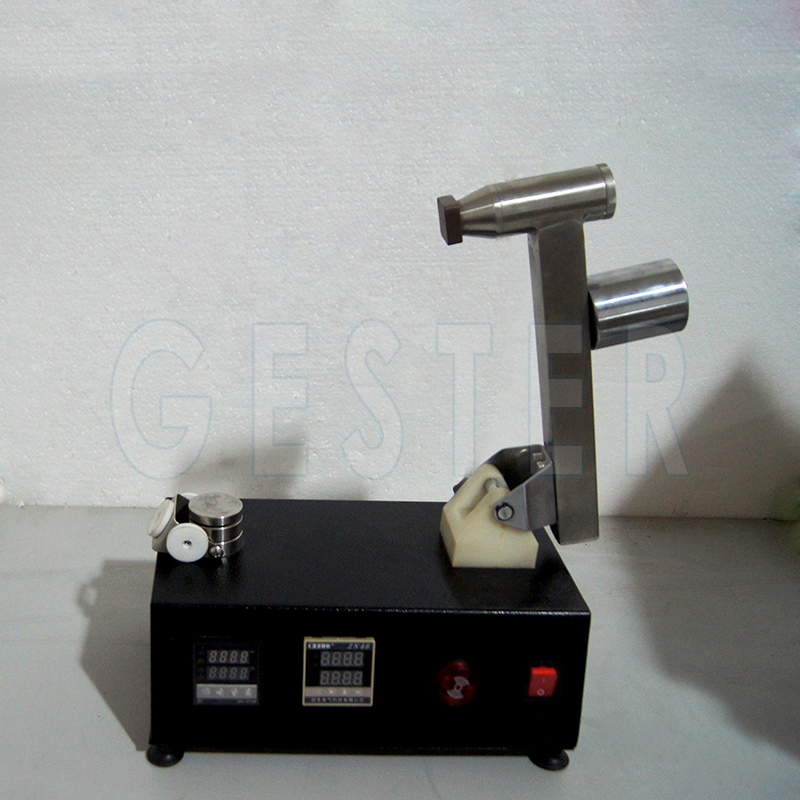

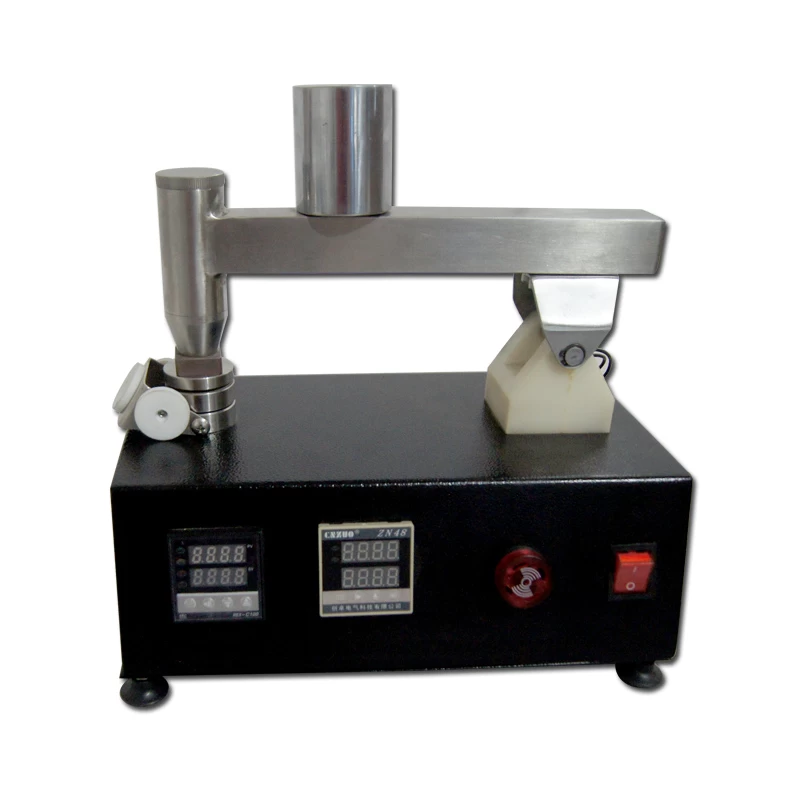

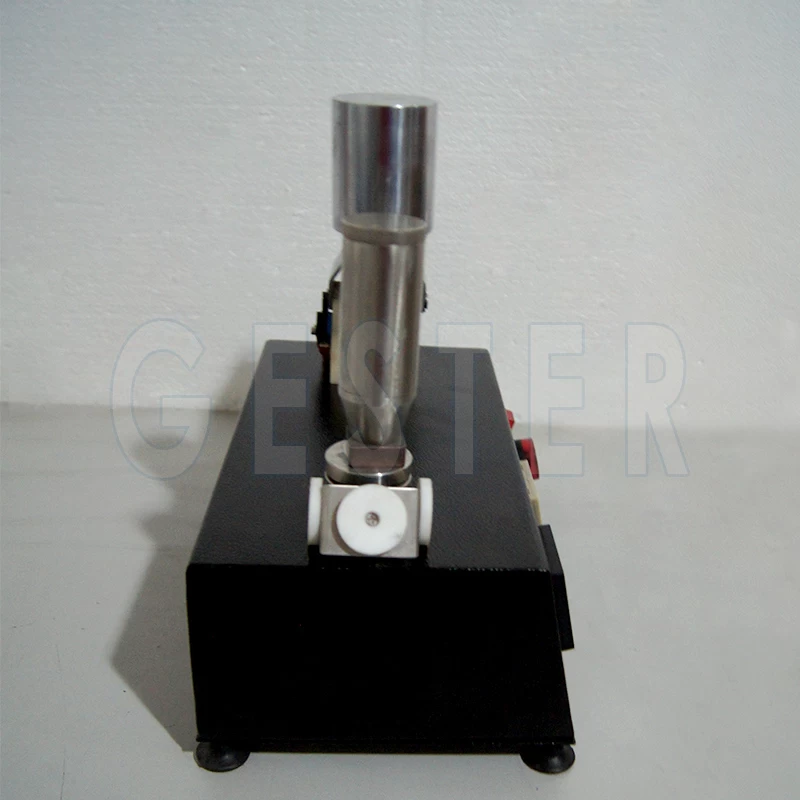

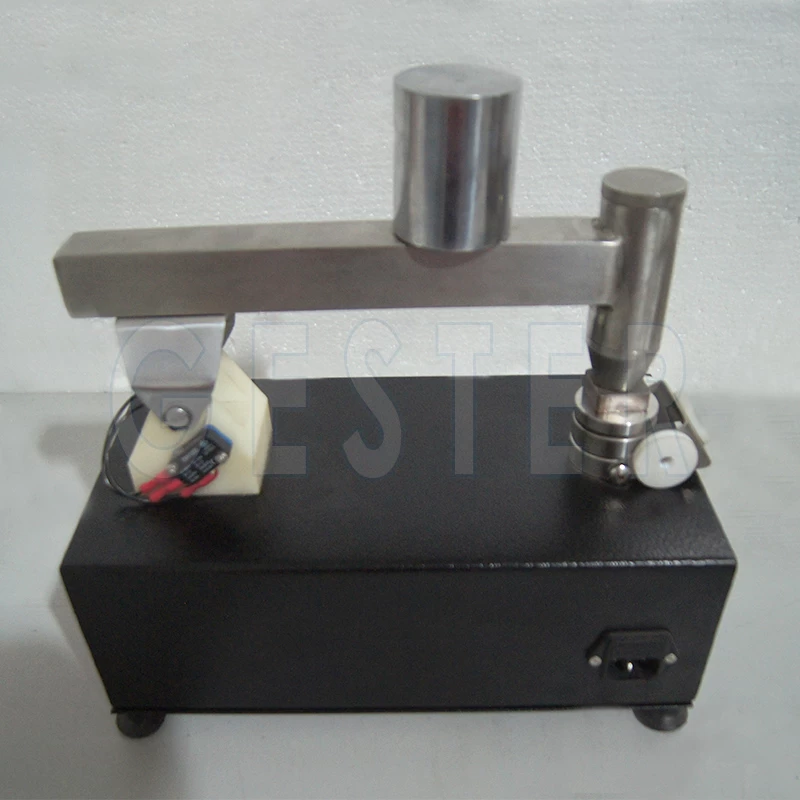

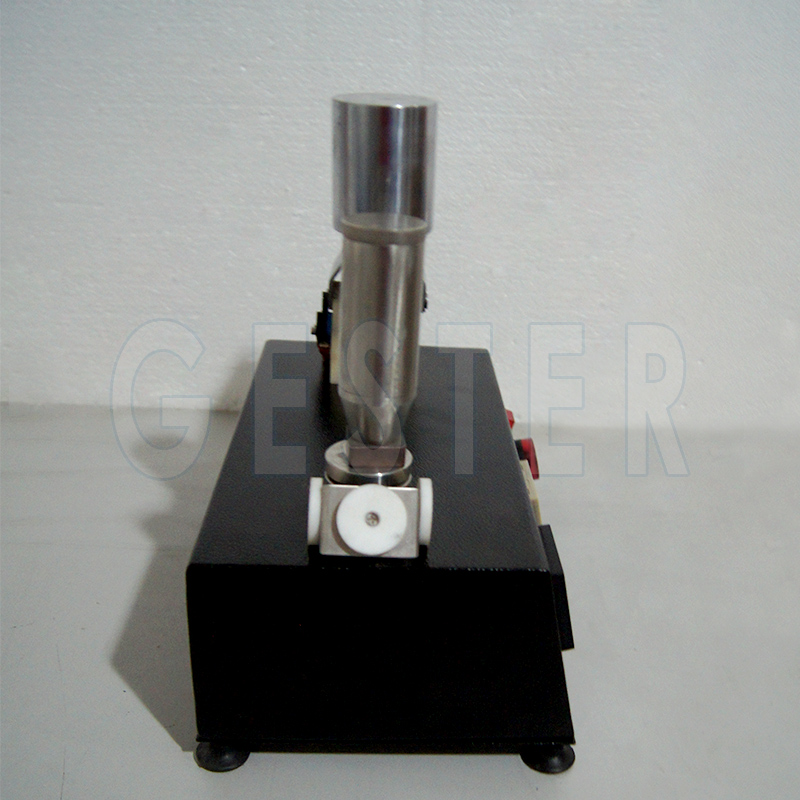

Heat Resistance Contact Tester GT-KB24
Product Introduction
|
Application:
This Heat Resistance Contact Tester is used for determine the ability of shoe materials to withstand the heat due to shoe making operation such as embossing, crimping, toe and seat flagging, hot blasting etc.
Standards:
EN-344-1 section 5.18, SATRA TM49, GB/T 20991 section 8.7, AS/NZS 2210.2 section 8.7, ISO 20344 section 8.7, BS 5131 Part2.11
|
Dimensions
Feature
1. Copper test head, heat-resistance,wear-resistance, corrosion-resistance.
2. Equip with temperature controlled device, automatically control heater temperature.
3. Equip with air-bubble level to indicate whether machine in level.
Key Specifications
Model
|
GT-KB24
|
Cylindrical copper body
|
Mass 200±20g, Lower end surface 25.5 x 25.5 mm
|
Metal heating block
|
530±50g
|
Test pressure
|
20±2kPa
|
Test Time
|
60s
|
Temperature range
|
RT-----400℃
|
Specimen size
|
70 x 30mm
|
Power line
|
1∮AC 220V 50/60HZ 3A
|

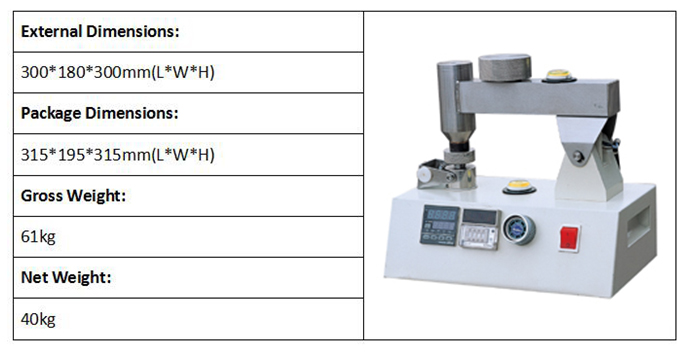

Dimensions( L x W x H)
|
300x180x300mm
|
Weight
|
40 kg
|
Standards
|
EN-344-1 section 5.18 ,
SATRA TM49
GB/T 20991 section 8.7 ,
AS/NZS 2210.2 section 8.7
ISO 20344 section 8.7 ,
BS 5131 Part2.11
|
