Heat Roller Press Machine for Battery Electrode Calendering
Product Specification
|
Model
|
Φ150*300mm LIO-DR-H150-300
|
|
Working Voltage
|
3phase 380v 50hz, or 3phase 208v 60hz
|
|
Power
|
6000W Total
|
|
Warranty
|
One year limited manufacture warranty with lifetime support
|
|
Roller Dimension
|
150mm(Dia.) x 300mm(W)
|
|
Roller surface hardness
|
>HRC62
|
|
Rolling press accuracy
|
≤±0.005
|
|
Roller surface finish
|
0.8
|
|
Roller surface hardening depth
|
5mm
|
|
Rolling press thickness
|
0-3mm adjusted with Dial gauge
|
|
Rolling press width
|
Max 300mm, Customized
|
|
Rolling press speed
|
0-6.5m/min adjustable
|
|
Heating temperature
|
RT-120℃, (can customize to 200℃)
|
|
Application Notes
|
This roller is specially designed for battery R&D in terms of its advantages
as affordable, compact and precise.
1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2 Coated Rust-proof oil if machine were to be unused for a long period of time
3 The minimum thickness of the rolled sheet should depend on the physical
property of the materials.
|
|
Package weight
|
400kg
|
|
Package volume
|
0.7M3
|

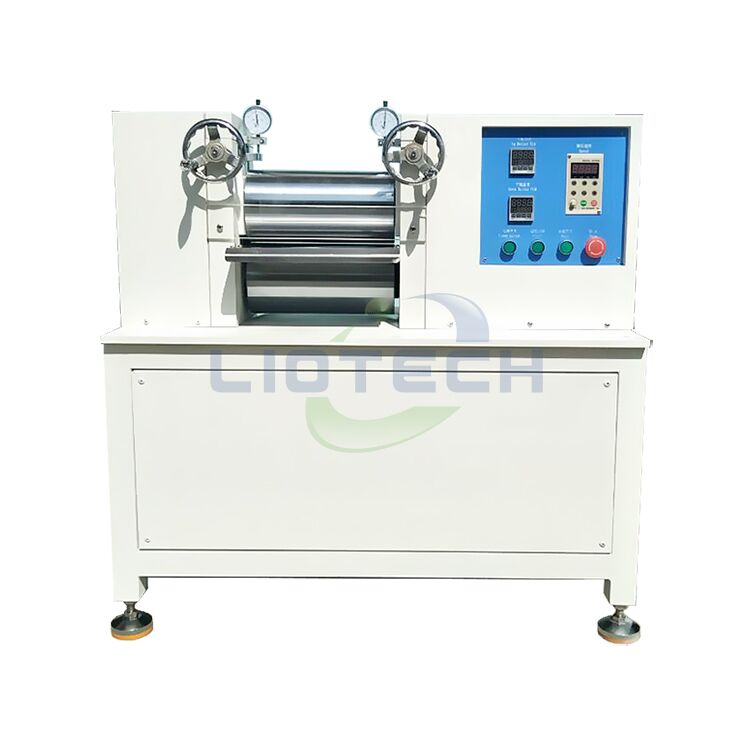

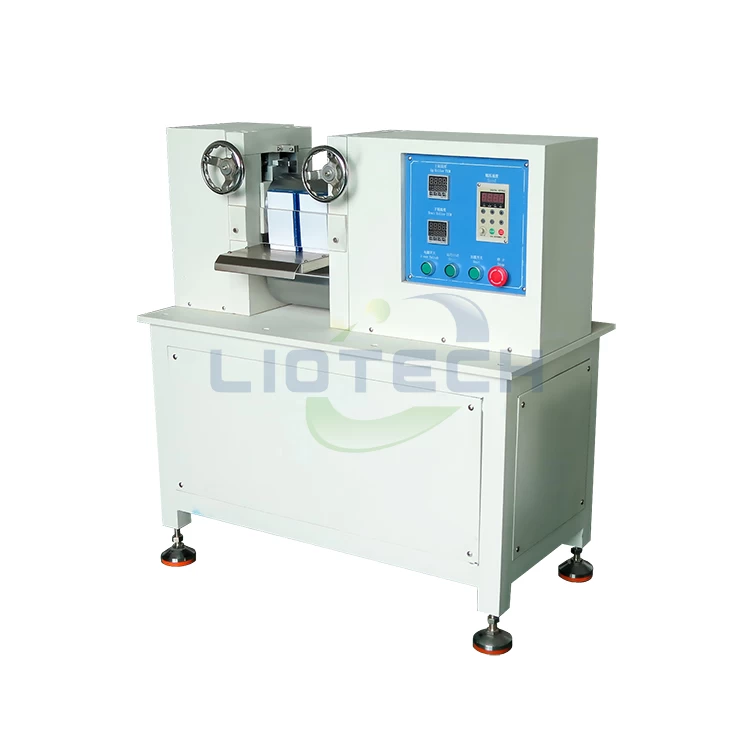

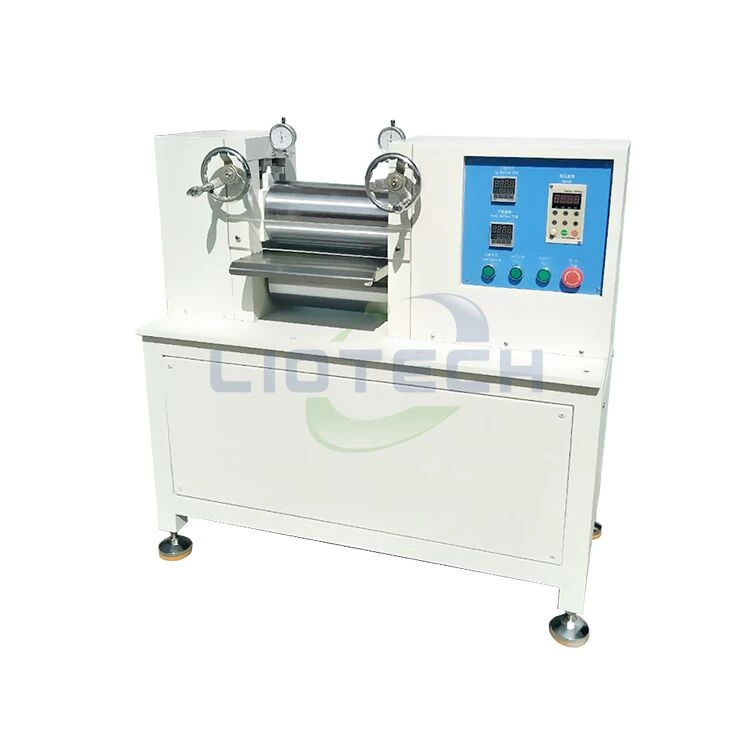

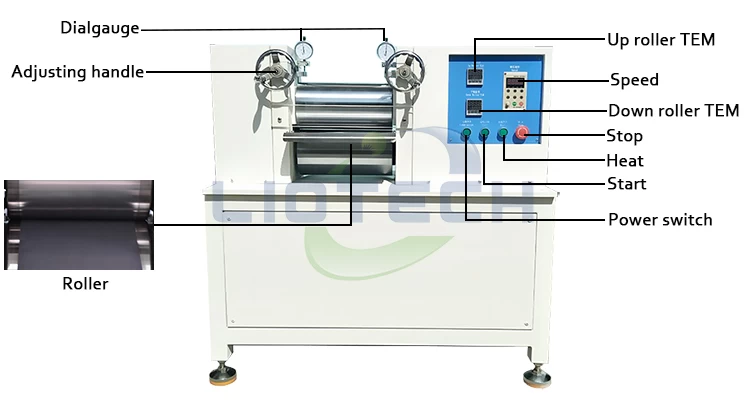

Product Images
