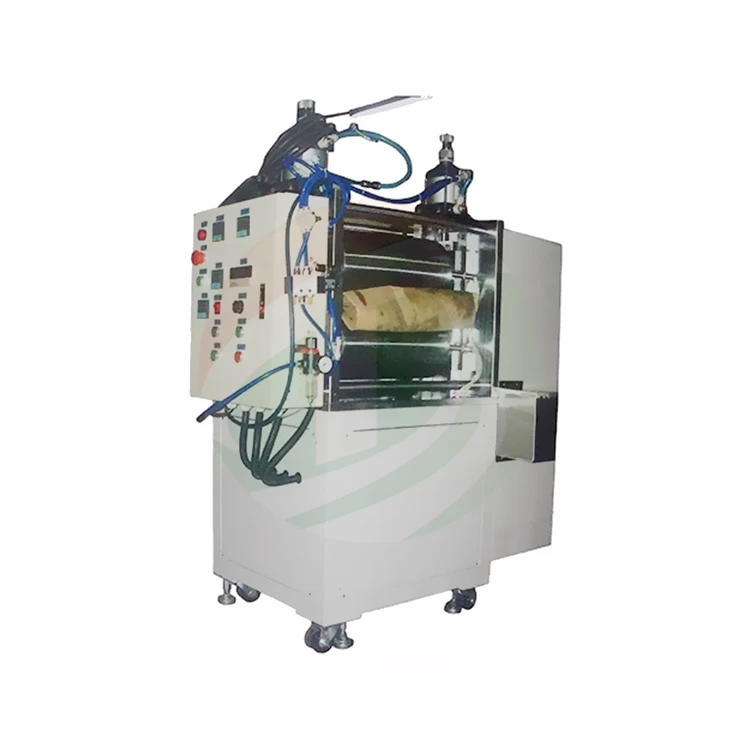

Hot roll press machine for battery anode material and Cu or Al mesh substrate temperature composite
SPECIFICATIONS
|
Power
|
Three-phase AC380V, 50HZ;
Button light and electromagnetic valves AC 220V;
Motors 380V;
Switchboard power of about 10KW;
|
|
Size
|
900 (L) * 1110 (W) * 1350 (H)
|
Function:
The machine is used for battery anode material and Cu or AL mesh substrate temperature composite.
Basic configuration:
1. Imported Gear Motor
2.AirTAC cylinder and solenoid valve.
3.Composite roll: φ200x400
4.Imports of non-contact temperature sensing
5.Iimport temperature Controller.
Features:
1.Compound main roller surface roughness :0.2
2.Compound main roller concentricity: ± 0.007mm.
3.Compound main roller cylindricality: ± 0.007mm.
4.Compound main roller materials :GCr15,Quenching hardness HRC50,Hard chrome plated; Coating thickness 0.1mm;
surface hardness of about HRC60.
