Heating Cooling Digital Dry Bath Laboratory Dry Bath Incubator

Dual-Functionality (Heating & Cooling)



Facebook Twitter Pinterest LinkedIn 分享

Product Introduction

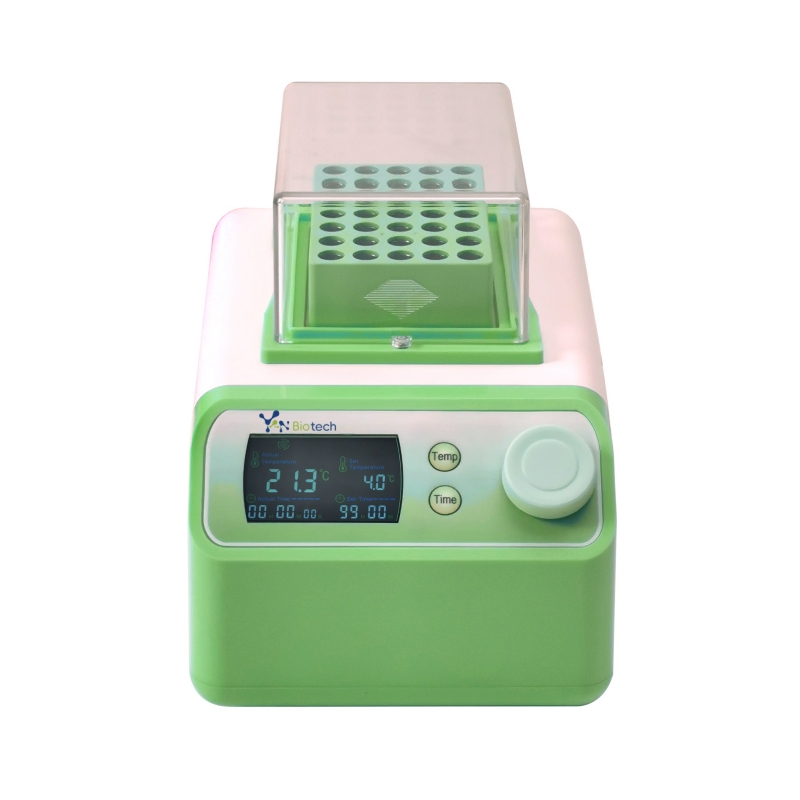

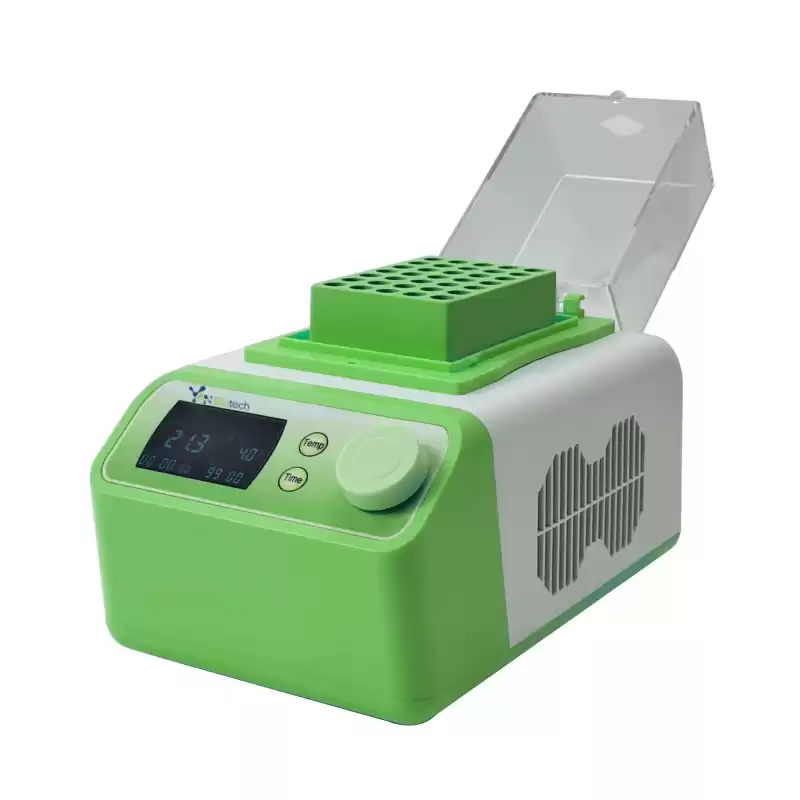

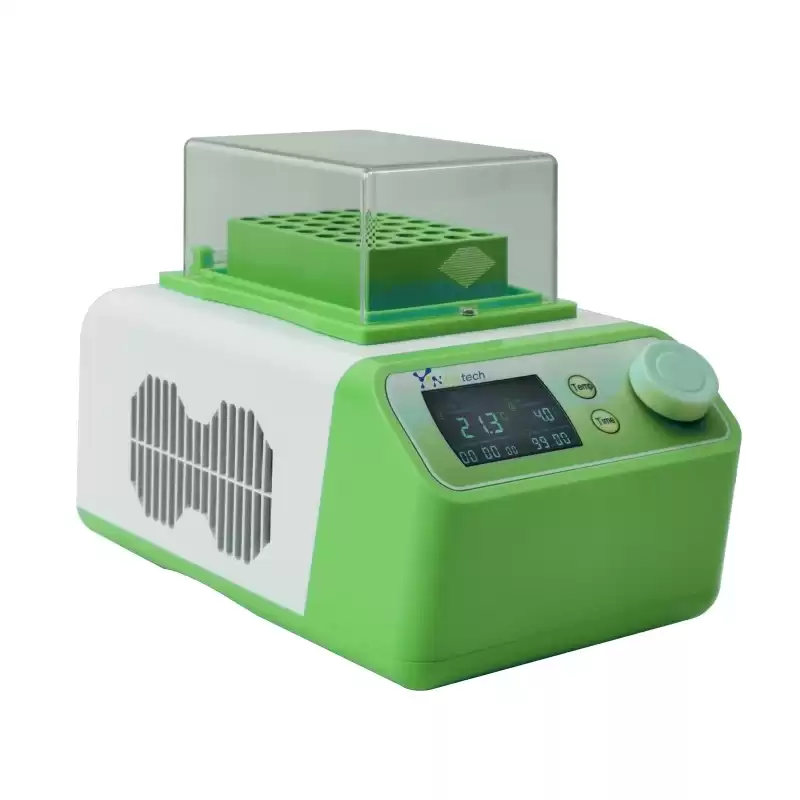

Cat No.YB-DBHC, dry bath incubator with heating and cooling functions is a more advanced version of a standard dry bath. It allows precise temperature control for both heating and cooling, making it useful for applications requiring temperature shifts or stability.



Product Specifications

Product Name Dry Bath with Heating Function Dry Bath with Heating, Cooling Function Dry Bath with Cooling, Heating, Programmable Function Dry Bath with Cooling, Heating, Shaking Function
Cat. No. YB-DBH YB-DBHC YB-DBHCP YB-DBHCS
Programmable     Yes
Horizontal Amplitude       3mm
Speed Range       200-1500rpm
Temperature Control Range +5℃-100℃ 0℃-100℃ 0℃-100℃ 20℃-100℃
Temperature Setting Range +5℃-100℃ 0℃-100℃ 0℃-100℃ 0℃-100℃
Time Setting 1min-99h59min 1min-99h59min 1min-99h59min 1min-99h59min
Speed Range 40-200rpm
Module Temperature Stability 40-100℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃
Module Temperature Uniformity ＜40℃ ≤±0.3 ℃ ≤±0.3 ℃ ≤±0.3 ℃ ≤±0.3 ℃
Module Temperature Uniformity ＞40℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃
Temperature Display Accuracy +0.1℃ +0.1℃ +0.1℃ +0.1℃
Lifting Speed of Heating and Cooling ≤15 min
(20 ℃-100 ℃)		 ≤15 min
(20 ℃-100 ℃)		 ≤15 min
(20 ℃-100 ℃)		 ≤12 min
(20 ℃-100 ℃)
Sample Processing Capacity 1 Standard Module 1 Standard Module 1 Standard Module 1 Standard Module
Input Power AC100 V/AC220 V
50 Hz/60 Hz		 AC100 V/AC220 V
50 Hz/60 Hz		 AC100 V/AC220 V
50 Hz/60 Hz		 AC100 V/AC240 V
50 Hz/60 Hz
Power 150W 150W 150W 200W
Fuse 250V/3A 250V/3A 250V/3A 250V/3A
Dimension 175×278×197 mm 175×278×197 mm 175×278×197 mm 178×278×244 mm
Net Weight 2.2kg 3.3kg 3.3kg 16k



Key Features



Dry Bath

Dual-Functionality (Heating & Cooling): Can heat samples up to ~100°C and cool them down to ~0°C.

Precise Temperature Control: 10° Angle tray are suitable for different application enviroment.

Interchangeable Heating Blocks: Different block sizes accommodate various tube types.

Compact & Low Maintenance: No need for water, reducing contamination risks.



Module Parameter

Module YB-DBHC
Standard Module 1.5 mLx 35
Optional Module A 0.5 mL X 54
Optional Module B 0.2 mL X 96
Optional Module C 2.0 mL X 35
Optional Module D 0.2 mL X 32+1.5 mL X 25
Optional Module E 5 mL X 24
Optional Module F 15 mL X 12 (high lid)
Optional Module G 50 mL X 6 (high lid)
Optional Module H 0.2 mL X 96 ( ELISA plate)
Optional Module I 0.2 mL X 32+0.5 mL X 10+1.5 mL X 15
Optional Module J 10mL X 15
Dimensions(mm) 175x278x197
Weight(kg) 3.3


Applications

🔬 Molecular Biology: Incubating DNA, RNA, or enzymes.

🧪 Clinical & Medical Labs: Heating serum, blood samples, or reagents.

🦠 Microbiology: Culturing or activating bacteria.

⚗️ Chemical Reactions: Conducting temperature-sensitive processes.
