Product Item:

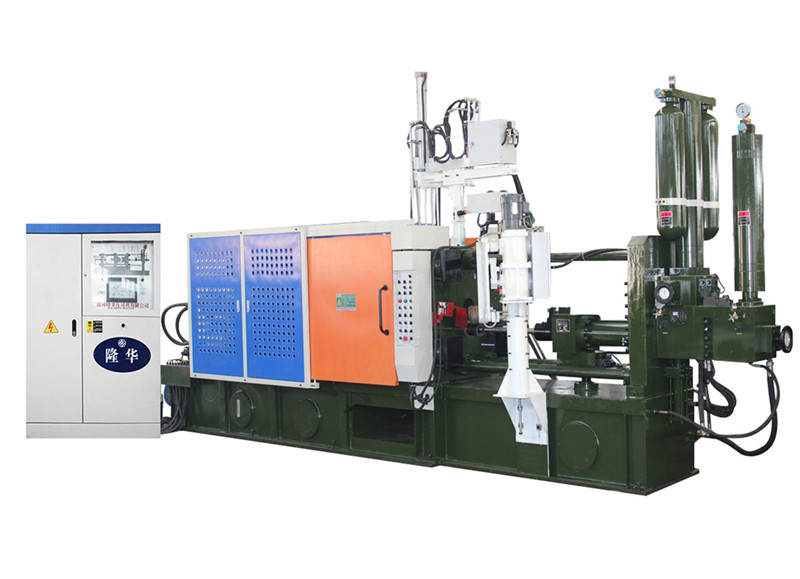

Heating radiators making machines aluminum die casting machines(LH-400T)
LH SERIES OF STANDARD PARAMETER TABLE (LH-400 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
4000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
620*620
|
|
TIE BAR DIAMETER
|
MM
|
￠125
|
|
DIE OPENING STROKE
|
MM
|
450
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
415
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
200
|
|
INJECTION POSITION
|
MM
|
0 -- 175
|
|
PLUNGER DIAMETER
|
MM
|
￠60----￠80
|
|
INJECTION STROKE
|
MM
|
500
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
141/104/80
|
|
CASTING FIANGE PROTRUSION
|
MM
|
12
|
|
CASTING FIANGE DIAMETER
|
MM
|
130
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
1008
|
|
LNJECTION WEIGHT(AL)
|
KG
|
5
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
300～750
|
|
EJECTOR FORCE
|
KN
|
180
|
|
EJECTOR STROKE
|
MM
|
140
|
|
MOTOR CAPACITY
|
KW
|
18.5
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
7.3*2*2.8
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
16.5
|
|
OIL TANK CAPACITY
|
L
|
1000
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
LonghuaDie Casting MachineMain Features
1.Siemens artificial intelligence control system can control and monitor the data and status of each action, which is convenient for operation and maintenance.
2.Large LCD display, Chinese, English, Russian, Portuguese and other languages conversion.
3.Powerful memory function, can store mold forming data, such as time, parameters, speed, pressure, stroke, mold thickness, selection conditions, etc.
4.With the function of hardware fault self-check and alarm and the function of mechanical fault alarm display, it is convenient to eliminate the machine fault.
5.Mold locking adopts high-precision electronic ruler positioning detection, and the position control precision can reach 0.1mm.
