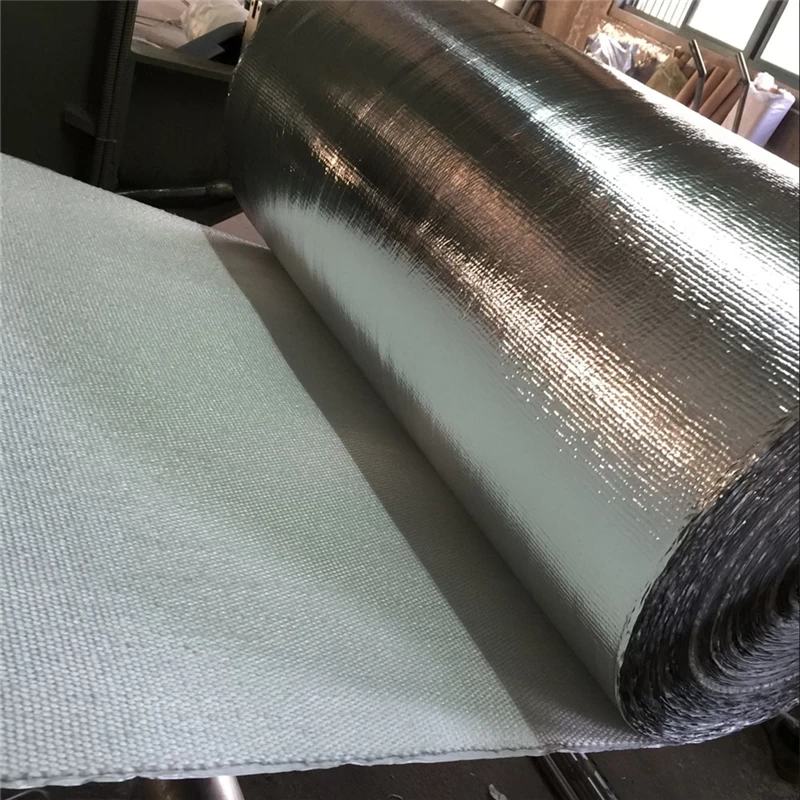

Heatshield Aluminum Heat Screen

It is a no-adhesive aluminized heat screen, made by aluminum and glass fiber base material. Heatshield aluminum heat barrier is a reflective heat protection barrier that will protect and keep components cool in the most demanding applications.



Description

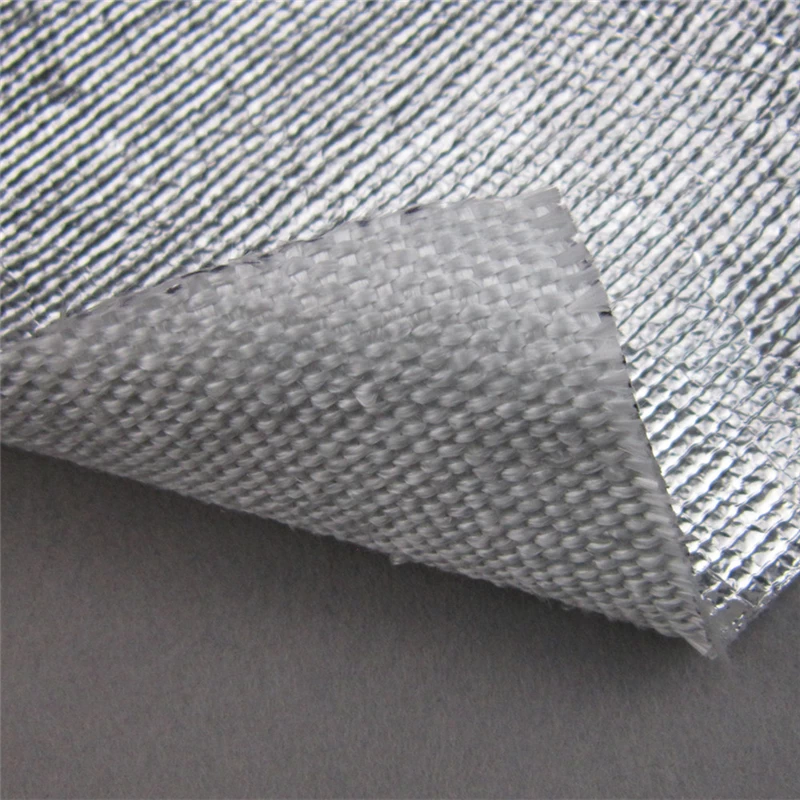

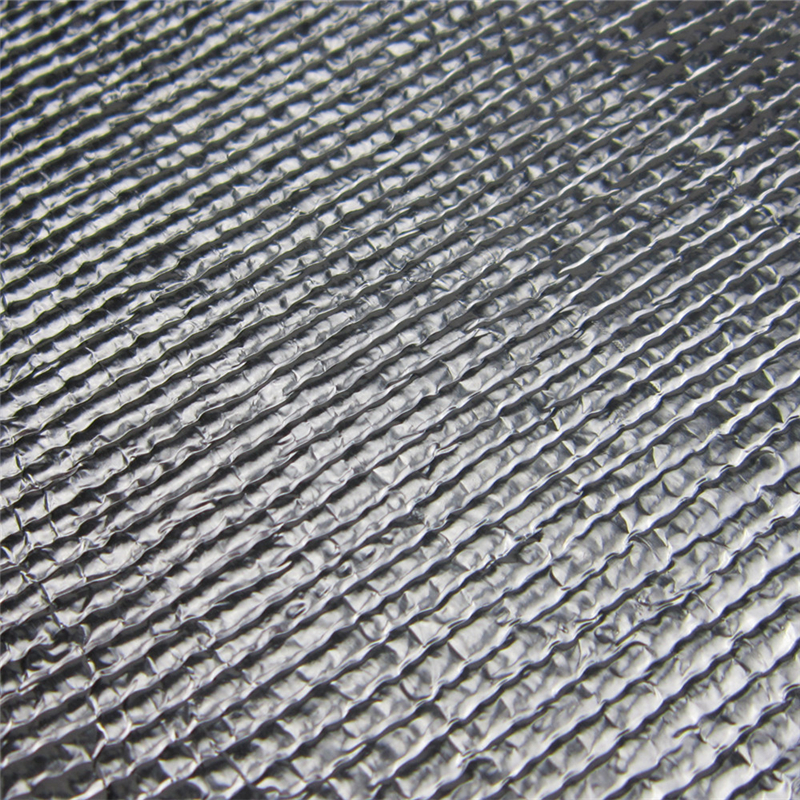

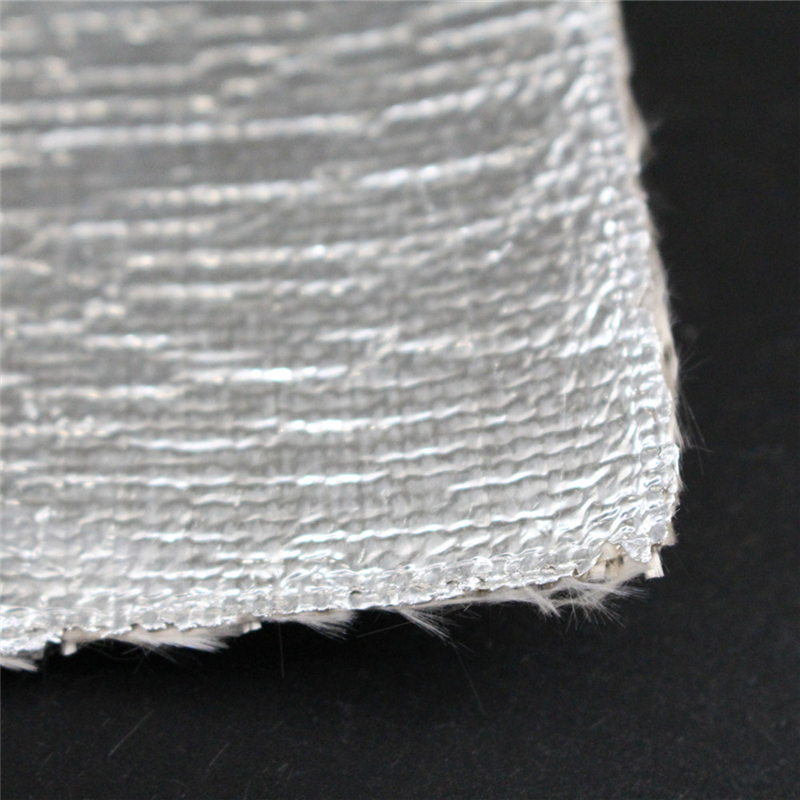

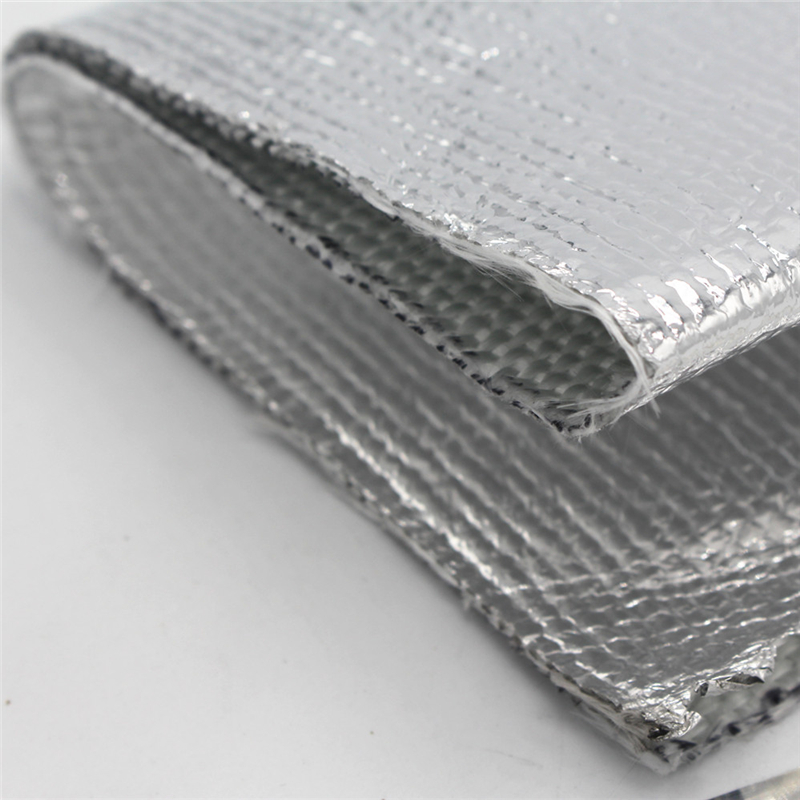

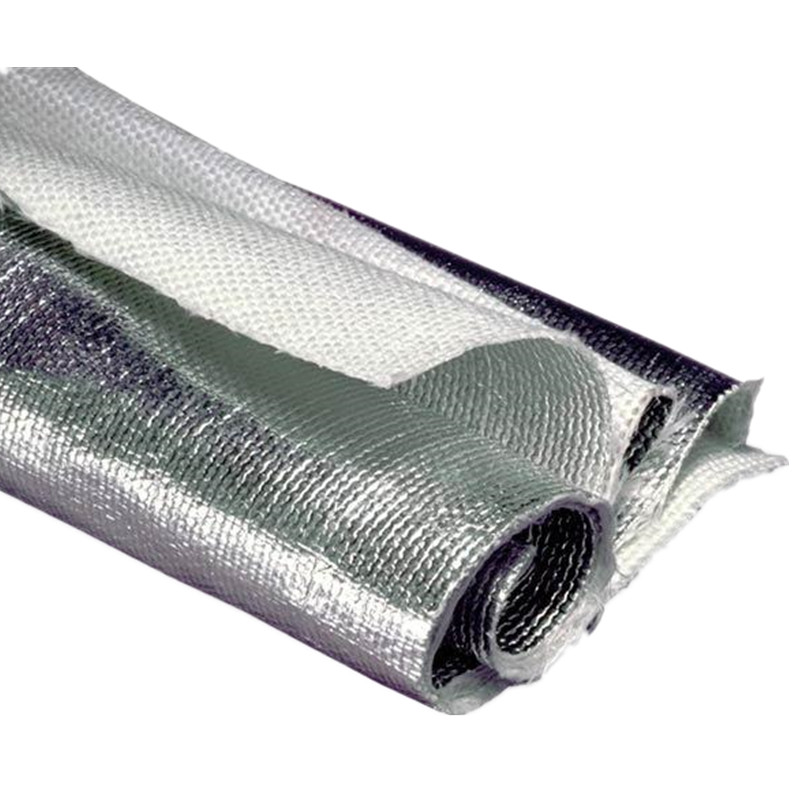

Heatshield Aluminum Heat Screen is made from fiberglass and aluminum mylar finish.


Feature

Direct Heat Resistance: 800°F
Base glass radiant heat to 1100°F


Application

Solves the problem of heat from engines and exhaust intruding into interiors and components. Helps shield fire walls, hoods, body panels, floor boards


Specifications

Datasheet
Material Aluminum, fiberglass
Continuous Temperature 1100 °F
Melt Temperature 2000 °F
Standard Thickness 0.8mm
Thickness 0.2mm, 0.6mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
Length MAX 50 meter/roll
Color Silver
Cutting Tool Scissor

Part Number Description
311212 12 in × 12 in
311224 12 in × 24 in
311310 12 in × 50 in
311818 18 in × 18 in
312424 24 in × 24 in
312448 24 in × 48 in
312640 26 in × 40 in
313658 36 in × 58 in
314036 40 in × 36 in
314050 40 in × 50 in
314046M 40 in × 164 ft


Notes:

Other size upon request.

Bluk rolls upon request.

Custom packages upon request.



HEAT SHIELD MATERIAL - HD HEATSHIELD MAT

Heat Screen Aluminized Mylar Radiant Matting
