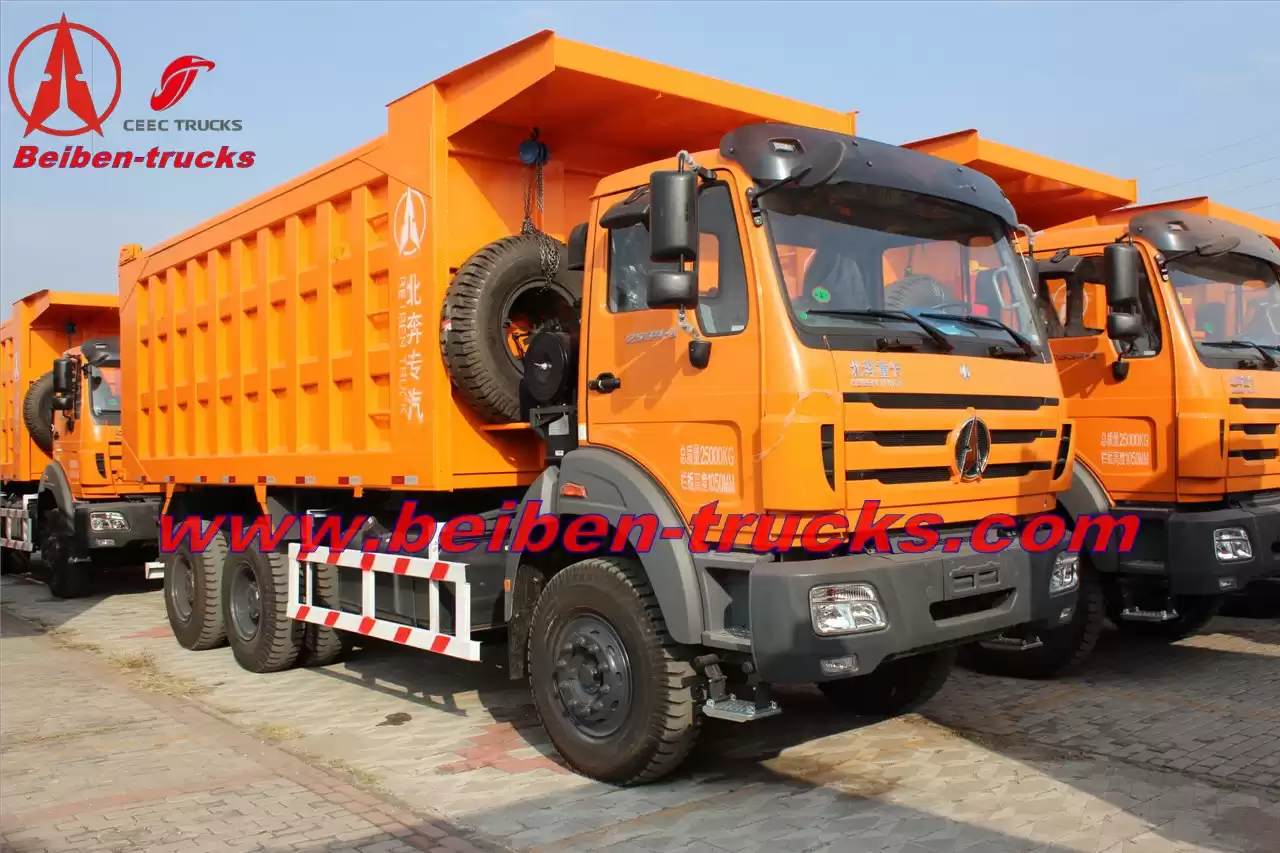

Heavy dump truck Beiben off road tipper for quarry or mining

North Benz power star dump truck 2634K



1.Type: DUMP TRUCK  Model: 2534K  Brand: BEIBEN(North Benz)



Traction type: 6x4



Driving type: LHD/RHD



North Benz power star dump truck 2634K



1.Type: DUMP TRUCK  Model: 2534K  Brand: BEIBEN(North Benz)



Traction type: 6x4



Driving type: LHD/RHD



Cabin: NG80B short cabin with sun visor, inner A/C, adjustable steering wheel, radio and player(with USB), safety belt, Dash board with all necessary gauges.



Engine brand: WEICHAI



Engine model: WP10.340E32



Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.



Displacement: 9.726 liters



Max.output: 340hp/2200rpm



Max.torque: 1250N.m/1400-1600rpm



Bore x stroke: 126x130mm



Transmission model: 9JS150A, FAST brand (Manual, 9 forward and 1 reverse)



Steering: TAS85 hydraulic steering with power assistance



Clutch: GFX420, Single dry frictional disc,Hydraulic boosting



Frame: Fish belly shape, variable width, variable section side beam structure
