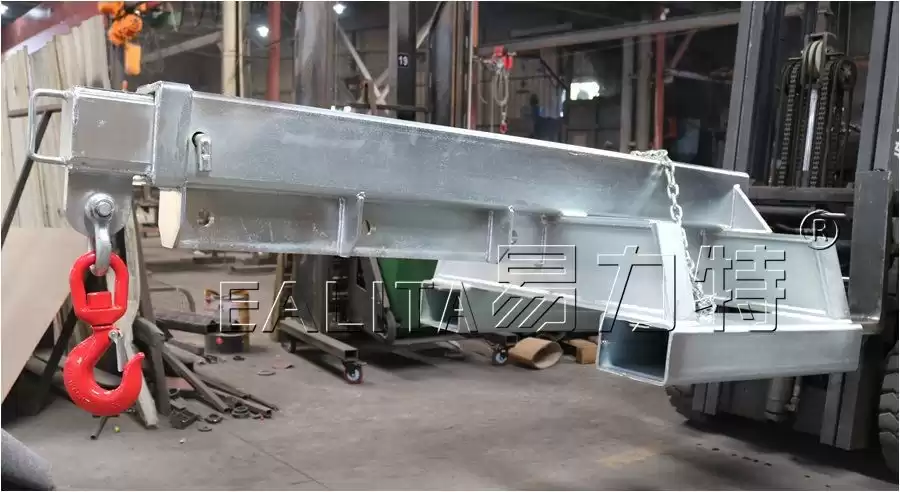

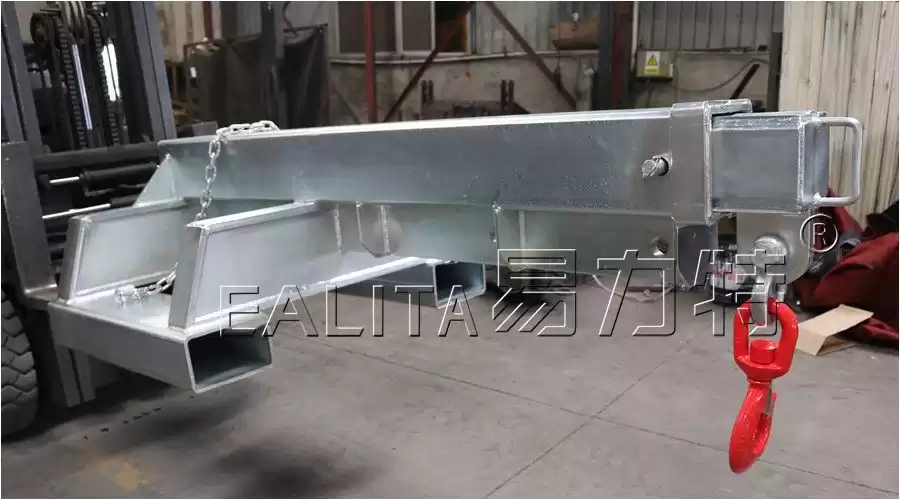

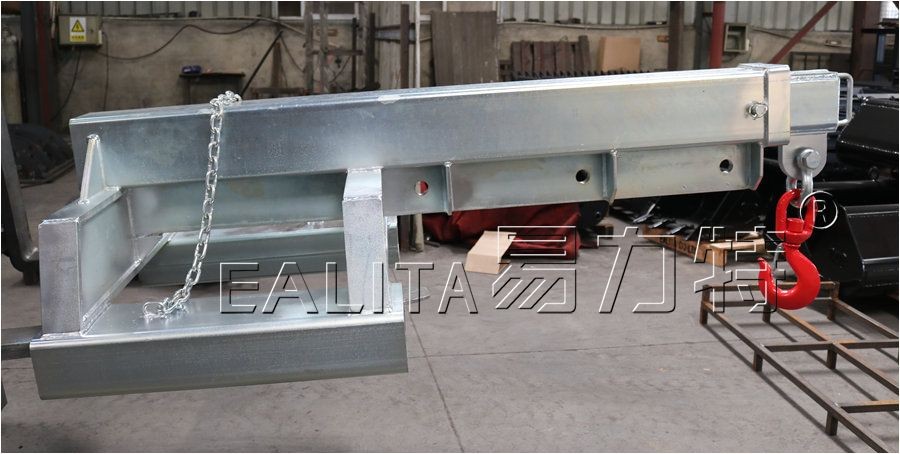

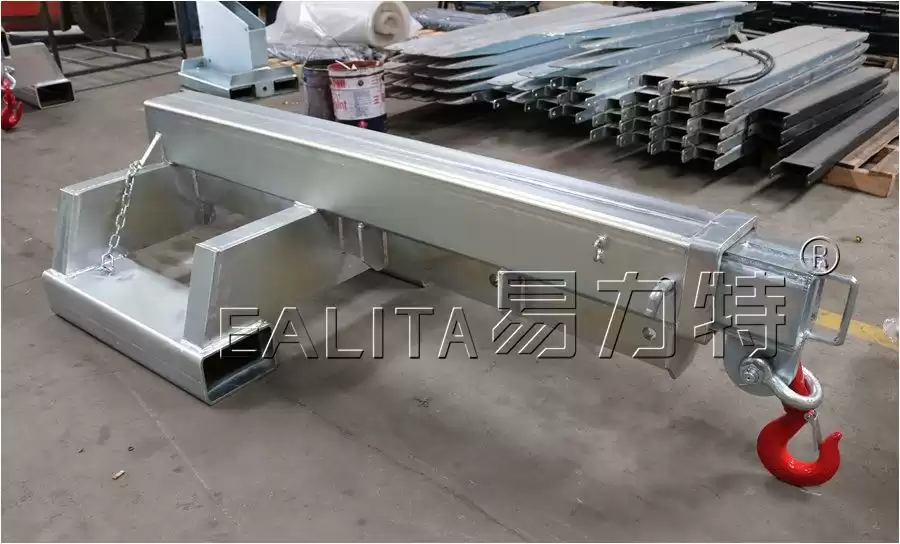

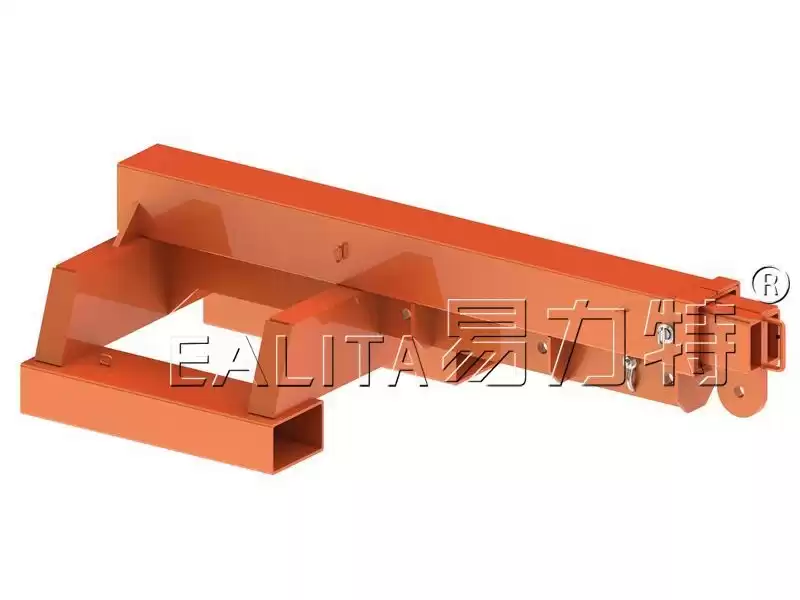

This 10T Jib has a 3.56 metre reach when fully extended and is fitted with wide fork pocket centres.
- This Jib has been designed with wide pockets suitable for Forklifts with special hydraulic Tine Positioners.
- This slip-on Forklift attachment is held to the Forklift by a safety chain.
- The overall jib length when closed is 2.19 metres.
- Zinc plated finish.
Specifications
· Safe Working Load (SWL) 10,000kg Max.
· Unit Weight 515kg
· Load Centre 920mm
· Pocket Size 230 x 110
· Pocket Centres 875 mm
· Horizontal C of G 1200mm
· Vertical C of G 100mm
