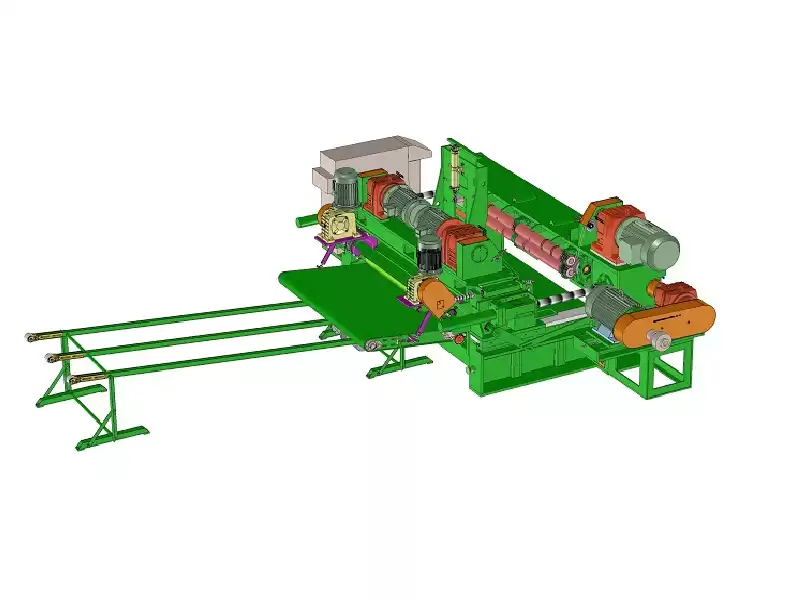

Product Name: Heavy duty 4ft Spindleless Plywood veneer peeling lathe
Major Technical Parameters
Model : BQ1813/E6S-J
Length of Veneer Log: 900-1400mm
Diameter of Veneer Log: Φ45-Φ600mm
Length of Peeling Knife: 1500mm
Thickness of Veneer: 0.8-4.5mm
Width of Veneer: 300-3000
Linear Speed of Veneer Peeling Line: 54/65/80m/min
Total Power: 45.5KW
Total Weight: 8450kg
Overall Dimensions: 4010*2600*1600
Product overview:
1.Working steady:The moving blade base and fixed double roller and guide rail make the veneer working machine stable and good quality veneer.
2.Heavy bearing:use strong and heavy bearing to increase the service life of bearing and reduce maintenance cost
Packing details:
Wrapped with PE film and plywood wooden case for the spare parts
Features:
1) 4ft
and 8ft Spindleless plywood veneer peeling and veneer cutting machine with
conveyor.
2) Heavy duty iron steel structure veneer machine body.
3) High quality spare parts and electric components.
Wood
Veneer Peeling and Veneer Cutting Machine for Plywood
Peeling
log uniformly with CNC control.
Peeling range
for log diameter: 600mm-45mm
Veneer Peeling machine with built-in clipper
Spindleless wood veneer peeling and
veneer cutting machine
small blades for clipper.
High working efficiency.
Plywood
Spindleless Veneer Peeling Machine and Price
High alloy
material of veneer peeling blade
Professional
installation position of veneer peeling blade
Ensure the best
working performance of veneer machine
