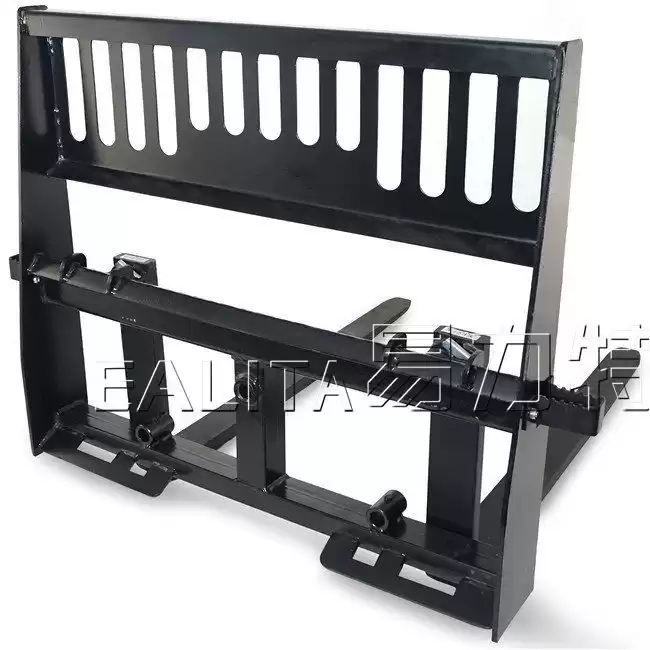

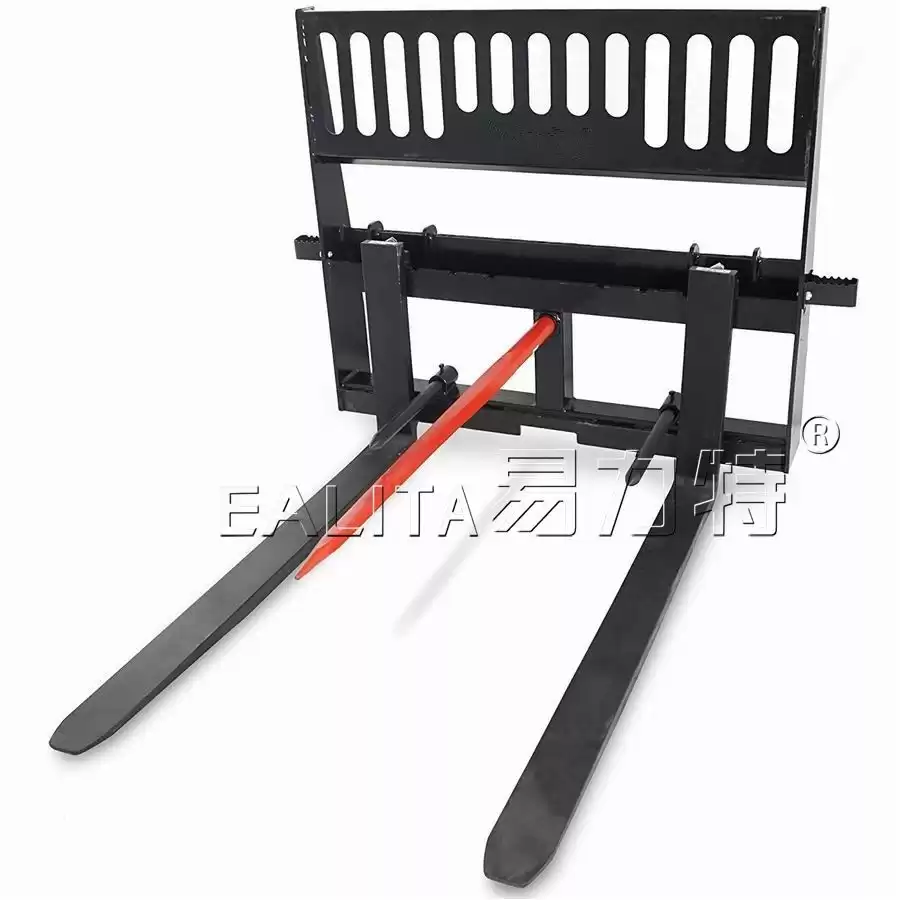

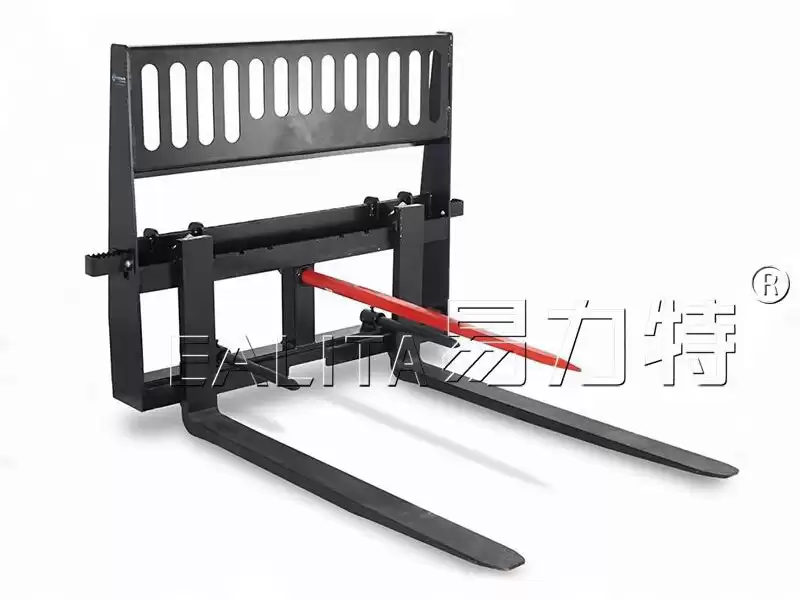

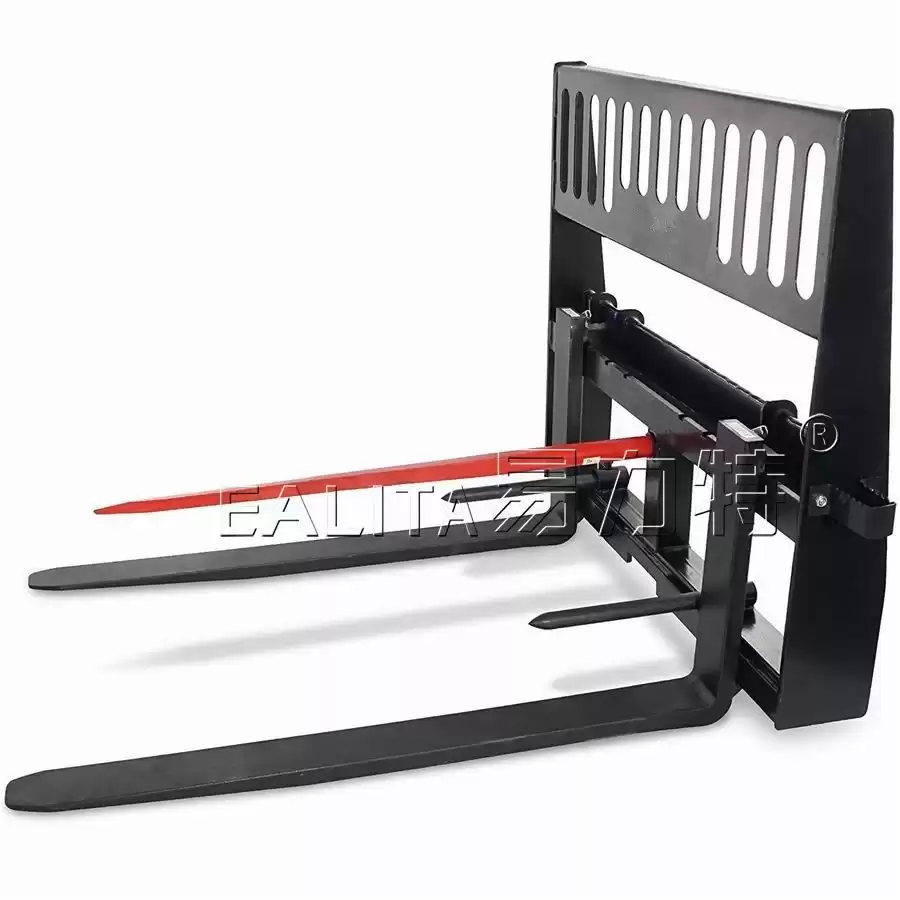

This 48'' pro duty pallet fork and hay spear attachment is one of the toughest in it's class.
- CNC cut and welded for accurate fit, it is designed to withstand the most rigorous work. The angled quick tach connection makes loader hook up easy and allows the operator to tilt the forks upward to prevent loads sliding off.
- The laser cut and branded headache rack is made from a single sheet of steel for added strength but has plenty of clearance for excellent visibility.
- The 2 bolted steps make it easy to access your loader from ether side.
Features
- Skid Steer quick-tach style hook up
- Adjustable from 6.5"-44"
- Load Guard protection
- Integrated Steps for easy machine entry installs on left and right side.
- Double lock down forks for 100% protection
- Powder Coated Finish
- CNC Laser Cut
Specifications
· Code: 03.03.17.0002
· Lifting capacity: 2300kg(5000lbs)
· Frame weight: 105kg

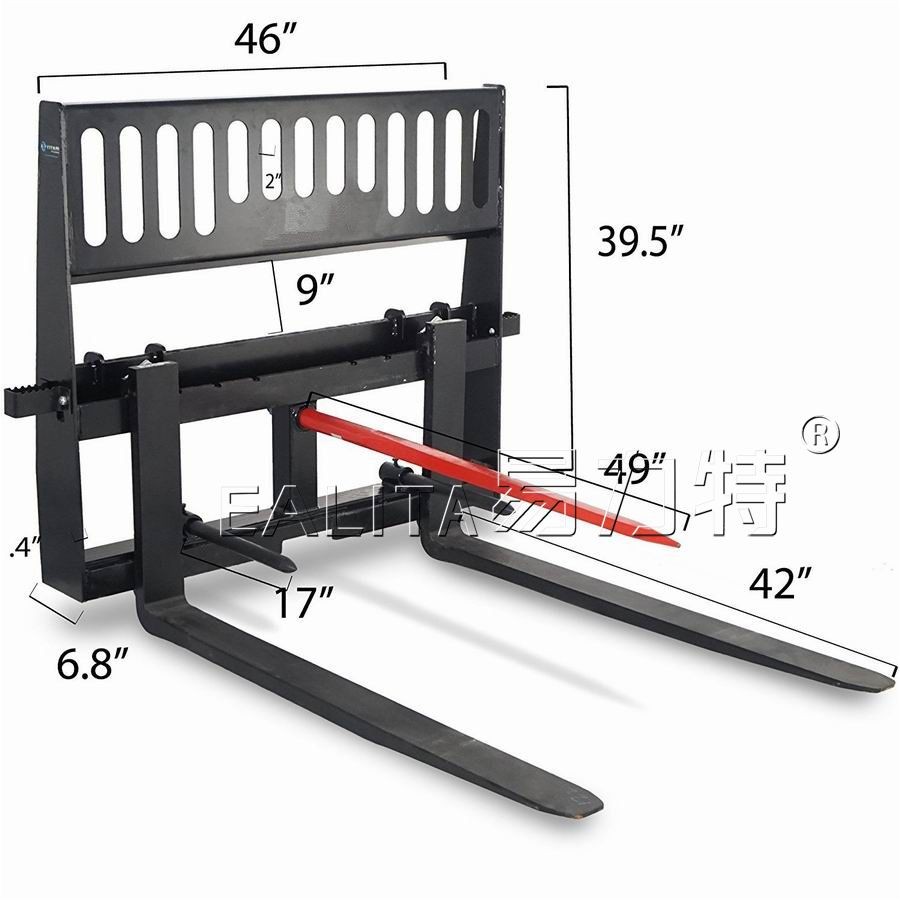

· Frame size: W1240 x H1000mm
· Main spear: 1x1250mm
· Stabilizer spear: 2x432mm
· Forks: 100x40x1220mm
